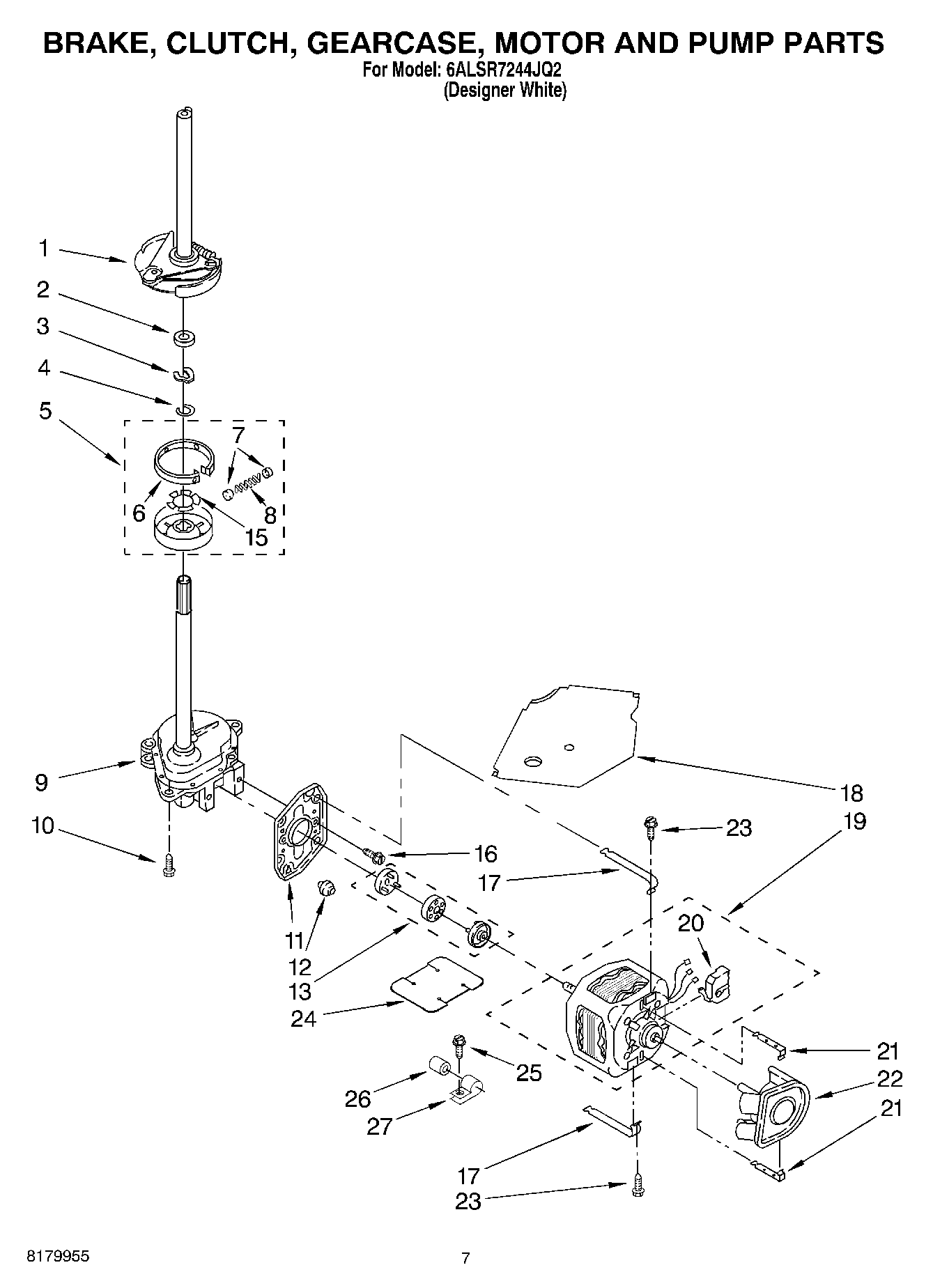

6ALSR7244JQ2 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP63292 Whirlpool Washer
3	WPW10080230 Whirlpool Ring
4	285353 Whirlpool Ring
5	285785 Whirlpool Washer Direct Drive Clutch
6	285790 Whirlpool Washer Clutch Band and Lining Kit
7	WP62646 Whirlpool Cap
8	WP3946792 Whirlpool Spring
9	3363395 Whirlpool Gearcase
11	WP62611 Whirlpool Plate
12	WP62691 Whirlpool Grommet
13	285852A Whirlpool Washer Direct Drive Heavy Duty Motor Pump Coupling
15	Clip, Anti-Rattle
16	WP3400516 Whirlpool Screw
17	WPW10086010 Whirlpool Motor Retainer Clip
18	W10838408 Whirlpool Motor Shield
19	WP3363190 Whirlpool Drive Motor
20	Switch, Main Drive Motor
21	WP8546127 Whirlpool Retainer Clip
22	WP3363892 Whirlpool Water Pump
23	WP273556 Whirlpool Screw
24	8316060 Whirlpool Shield
25	WP3390631 Whirlpool Screw
26	WP482156 Whirlpool Refrigerator Capacitor
27	Clamp, Capacitor
