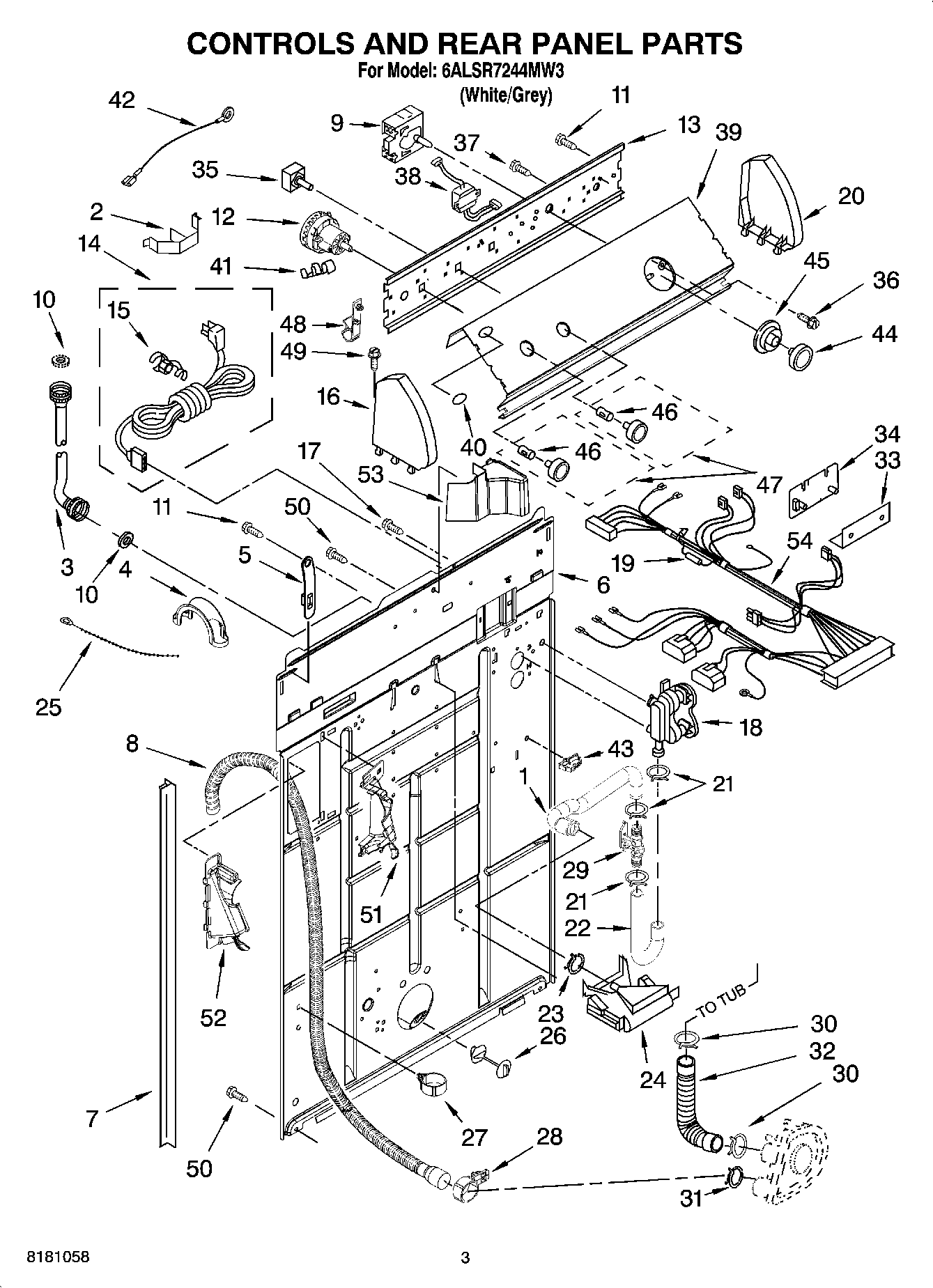

6ALSR7244MW3 02 – CONTROLS AND REAR PANEL PARTS
Written by
in
6ALSR7244MW3 02 – CONTROLS AND REAR PANEL PARTS
Products
Position
Product
1
WP3349365 Whirlpool Hose
2
Clip, Harness & Pressure Hose
3
WPW10489643 Whirlpool Fill Hose
4
WP8577378 Whirlpool Retainer
5
WP8568314 Whirlpool Strap
6
Panel, Rear
7
WP62747 Whirlpool Pad
9
Timer, Control (50 Hz.) (Motor Not A Service Part)
10
WP16123 Whirlpool Washer
11
WP90767 Whirlpool Screw
12
W10337780 Whirlpool Pressure Switch
13
WP3948608 Whirlpool Bracket
14
Cord, Power
15
Strain Relief, Power Cord
17
WP3351614 Whirlpool Screw
18
WP3360397 Whirlpool Valve
19
WPW10111181 Whirlpool Fuse Assembly
20
W10820038 Whirlpool Endcap
21
WP596669 Whirlpool Hose Clamp
22
WP3357319 Whirlpool Hose
24
WP3360977 Whirlpool Washer Tub Fill Nozzle
25
WPW10339879 Whirlpool Wire Tie
26
WP8519200 Whirlpool Support Assembly
27
Clamp, Hose
28
8541668 Whirlpool Washer Clamp
29
Sensor-ETC-Inline
30
WP616099 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
33
Shield, ATC
34
WPW10110247 Whirlpool Electronic Control Board
35
W10168172 Whirlpool Temperature Switch
36
WP3400818 Whirlpool Screw
37
3400073 Whirlpool Screw
38
3407160 Whirlpool Transformer
39
Panel, Console (Includes Item 40)
40
Medallion
41
W10113937 Whirlpool Clamp
42
Wire, Ground
43
Clip, Harness
44
WP8538949 Whirlpool Knob
45
WP8538955 Whirlpool Dial
46
WP8536939 Whirlpool Spring Clip
47
KNOB
48
Retainer, Harness
49
WP388326 Whirlpool Screw
50
WP3390631 Whirlpool Screw
52
WPW10096921 Whirlpool Hose
53
Sh
54
Harnes
←
