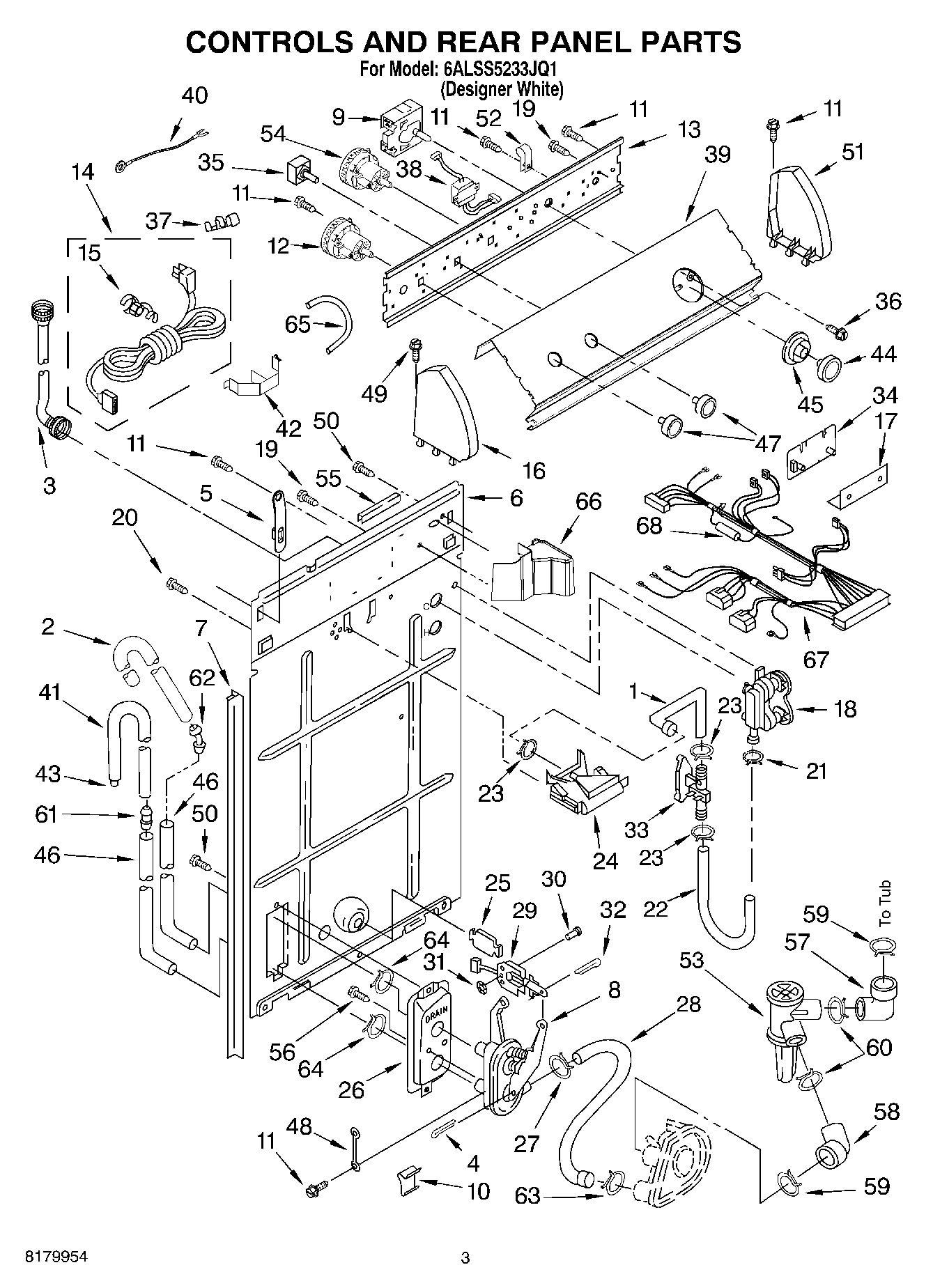

6ALSS5233JQ1 02 – CONTROLS AND REAR PANEL PARTS

6ALSS5233JQ1 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

6ALSS5233JQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP3349365 Whirlpool Hose
2WP96743 Whirlpool Hose
3WPW10489643 Whirlpool Fill Hose
4Pin
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8Valve, 2-Way (Diaphragm 358317)
9Timer, Control (50 Hz.) (Motor Not A Service Part)
10Clip, Retainer
11WP90767 Whirlpool Screw
12Switch, Water Level (w/ Tee Fitting)
13WP3948608 Whirlpool Bracket
14Cord, Power
15Strain Relief, Power Cord
17Shield, ATC
18WP3360397 Whirlpool Valve
19Screw (6)
20WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22WP3357319 Whirlpool Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26Connector, Drain Hose
27WP285655 Whirlpool Hose Clamp
28Hose, Pump To Drain Connector
29Solenoid, Suds Valve
30Rivet
31WP90296 Whirlpool Clip
32Pin, Cotter (1/8 x 3/4)
33Sensor-ETC-Inline
34WPW10110247 Whirlpool Electronic Control Board
35SWTCH-TEMP
36WP3400818 Whirlpool Screw
37W10113937 Whirlpool Clamp
383407160 Whirlpool Transformer
39Panel, Console
40Wire, Ground
41Hose, Gooseneck
42Clip, Harness & Pressure Hose
43Strainer, Hose
44W10807860 Whirlpool White Control Knob
45WP3957849 Whirlpool Timer Dial
4696746 Whirlpool Drain Hose Assembly
47WP3957799 Whirlpool Knob
48Strap, Ground
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
527111P002-60 Whirlpool Clamp
53Protector, Valve
54Switch, Suds Level
55Edge Protector
56Screw (2)
57Connector, To Tub
58Connector, To Pump
59WP371502 Whirlpool Clamp
60WP616099 Whirlpool Clamp
61WP16272 Whirlpool Hose Coupling
62Connector, Hose
64WP356138 Whirlpool Hose Clamp
65WP353244 Whirlpool Hose
66Sh
67WPL 3956195
68WPW10111181 Whirlpool Fuse Assembly
