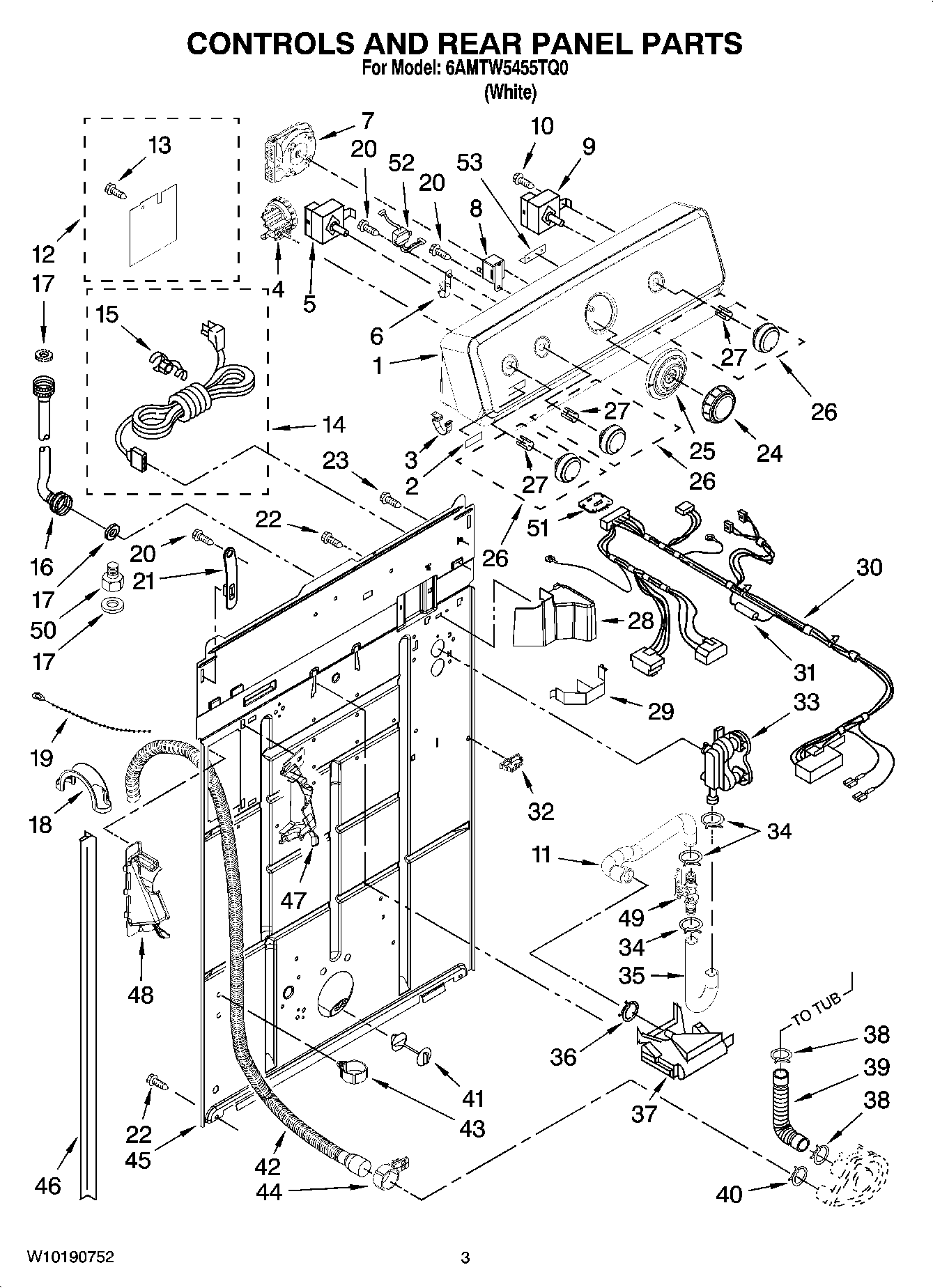

6AMTW5455TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY W10115444
2	MAY W10112569
3	MAY 8312709
4	MAY 8577845
5	Switch, Water Temperature
6	MAY 8317975
7	MAY W10155498
8	MAY 3952439
9	MAY W10168257
10	SCREW
11	Hose, Sensor (Uppper)
12	MAY W10093726
13	RETAINER, PUSH-IN
14	MAY W10121455
15	MAY 8559337
16	Hose, Water Inlet (Blue)
16	Hose, Water Inlet (Red)
17	ACCESSORY PARTS, WASHER, INLET HOSE
18	U-Bend
19	MAY 3347868
20	SCREW,8-18 X 3/8
21	Strap, Console
22	Screw, Mixing Valve Mounting
23	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
24	Knob, Timer (Washer)
25	Dial, (Washer)
26	Knob, Control (3)
27	CLIP, SPRING
28	MAY 8314879
29	Clip, Harness & Pressure Switch
30	MAY W10179465
31	Fuse (In Harness)
32	MAY 3352944
33	MAY 3360397
34	MAY 370451
35	MAY 3357319
36	MAY 371503
37	Thermister, Inlet
38	Clamp, Hose (2)
39	Hose & Clamp Assembly
40	MAY 8317496
41	MAY 8519200
42	MAY W10127860
43	MAY 8541667
44	MAY 8541668
45	MAY 8318015
46	MAY 62747
47	MAY 8541669
48	MAY 8541658
49	MAY 3352282
50	Adapter, Water Inlet Hose
51	MAY W10110247
52	MAY 3407160
53	MAY 8316039
