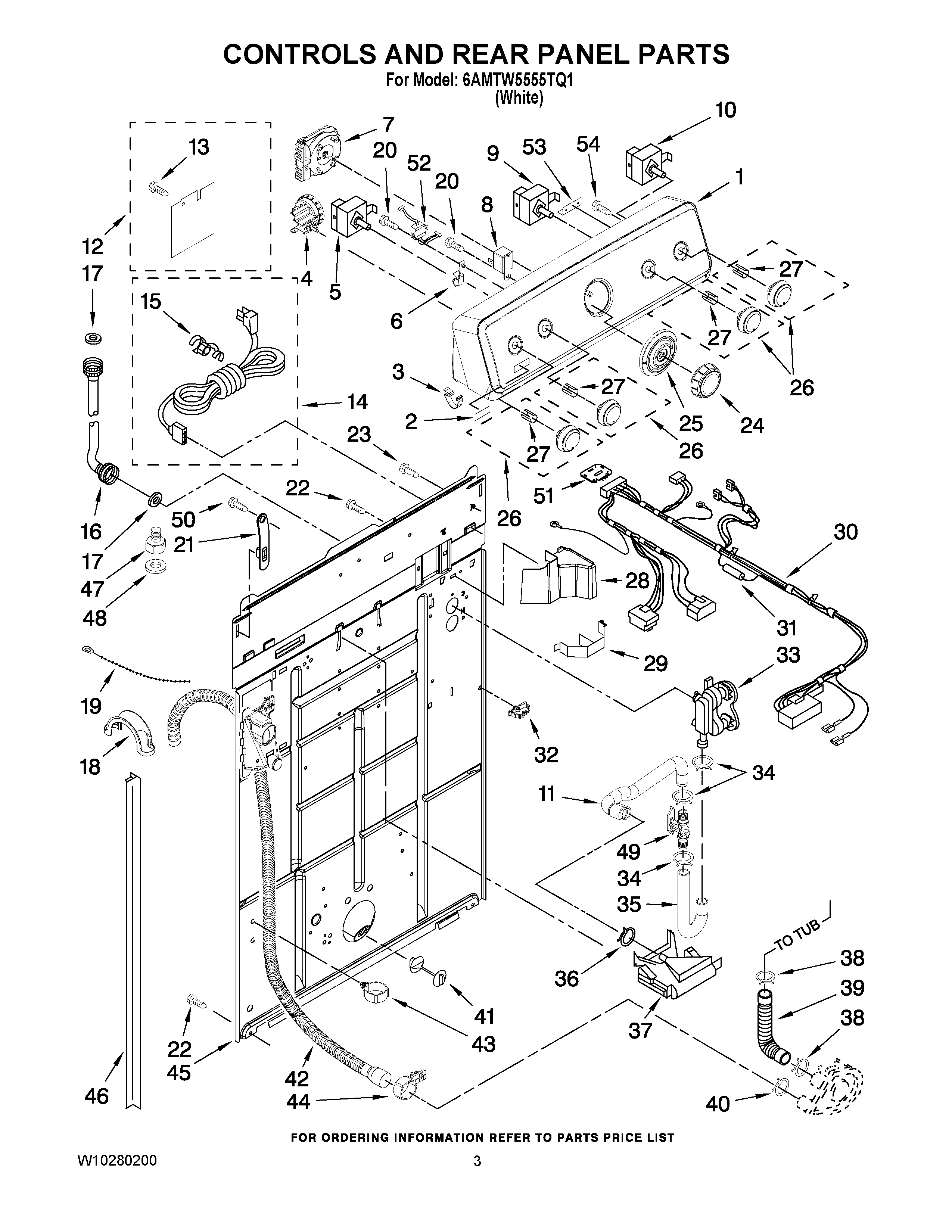

6AMTW5555TQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY W10115445
2	Badge
3	MAY 8312709
4	MAY 8577844
5	MAY W10168172
6	MAY 8317975
7	MAY W10155501
8	MAY 3952439
9	MAY W10150079
10	MAY W10168264
11	Hose, Sensor (Uppper)
12	MAY W10093726
13	RETAINER, PUSH-IN
14	MAY W10121455
15	MAY 8559337
16	Hose, Water Inlet (Red)
16	Hose, Water Inlet (Blue)
17	ACCESSORY PARTS, WASHER, HOSE
18	U-Bend
19	MAY 3347868
20	SCREW,8-18 X 3/8
21	Strap, Console
22	Screw, Mixing Valve Mounting
23	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
24	Knob, Timer (Washer)
25	Dial, (Washer)
26	Knob, Control (3)
27	CLIP, SPRING
28	MAY 8314879
29	Clip, Harness & Pressure Switch
30	MAY W10179466
31	Fuse (In Harness)
32	MAY 3352944
33	MAY 3360397
34	MAY 370451
35	MAY 3357319
36	MAY 371503
37	Thermister, Inlet
38	Clamp, Hose (2)
39	Hose & Clamp Assembly
40	MAY 8317496
41	MAY 8519200
42	MAY W10096921
43	MAY 8541667
44	MAY 8541668
45	MAY 8318015
46	MAY 62747
47	Adapter, Water Inlet Hose
48	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
49	MAY 3352282
50	SCREW
51	MAY W10110247
52	MAY 3407160
53	MAY 8316039
54	SCREW
