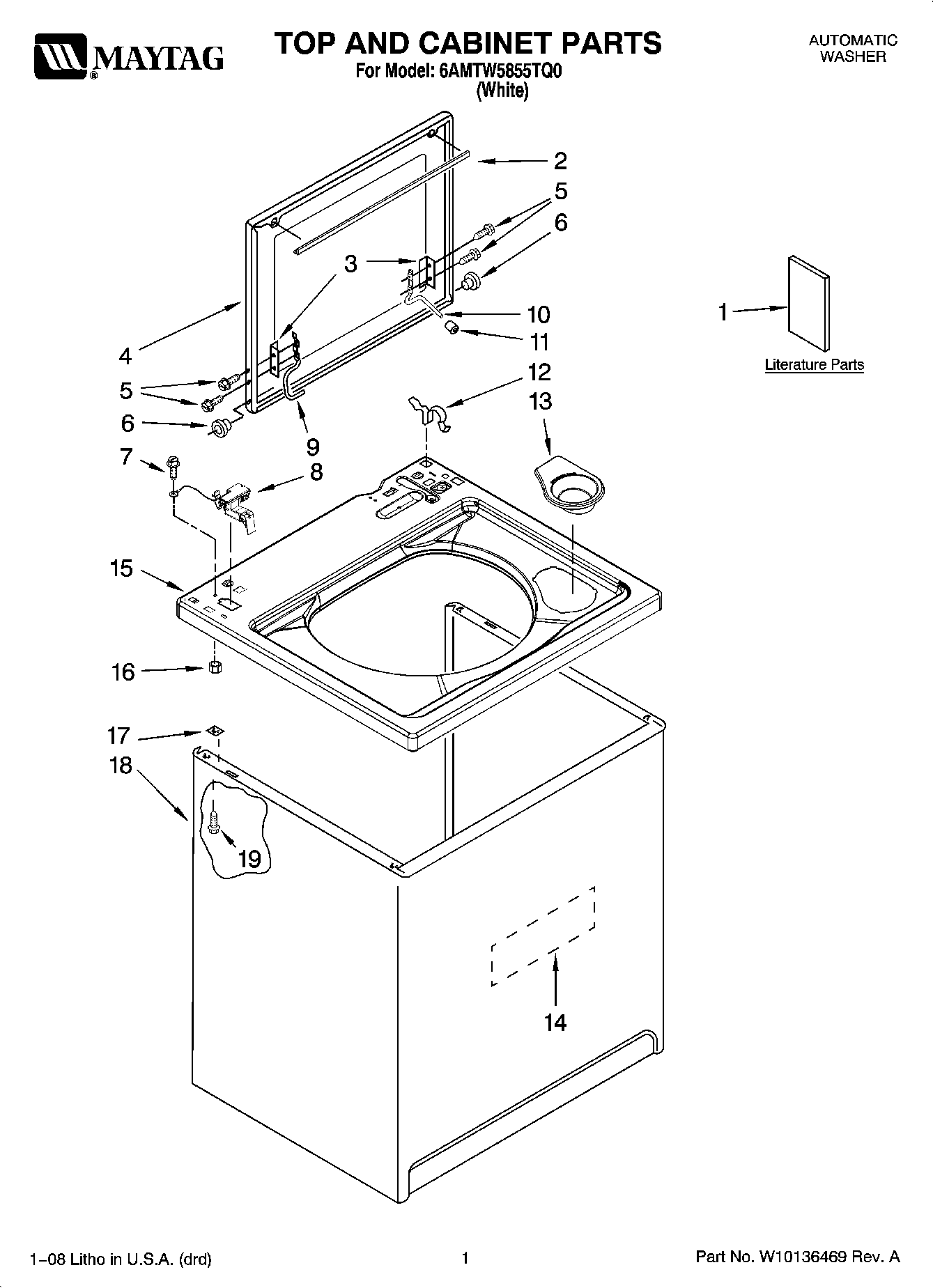

6AMTW5855TQ0 01 – TOP AND CABINET PARTS

6AMTW5855TQ0 01 – TOP AND CABINET PARTS

Written by

in

6AMTW5855TQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10155503
1MAY W10117866
1MAY W10117860
1MAY W10117865
2MAY 8054939
3Pad, Lid Hinge
4MAY W10171569
5SCREW, LID HINGE
6MAY 8319539
7SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
8MAY 8318084
9MAY 8559336
10HINGE, LID (RIGHT HAND)
11MAY 19119
12MAY 62780
13MAY 8565967
14Absorber, Sound (Cabinet) (3)
15MAY 8543479
16MAY 8533959
17MAY 62750
18MAY 3950968
19SCREW
