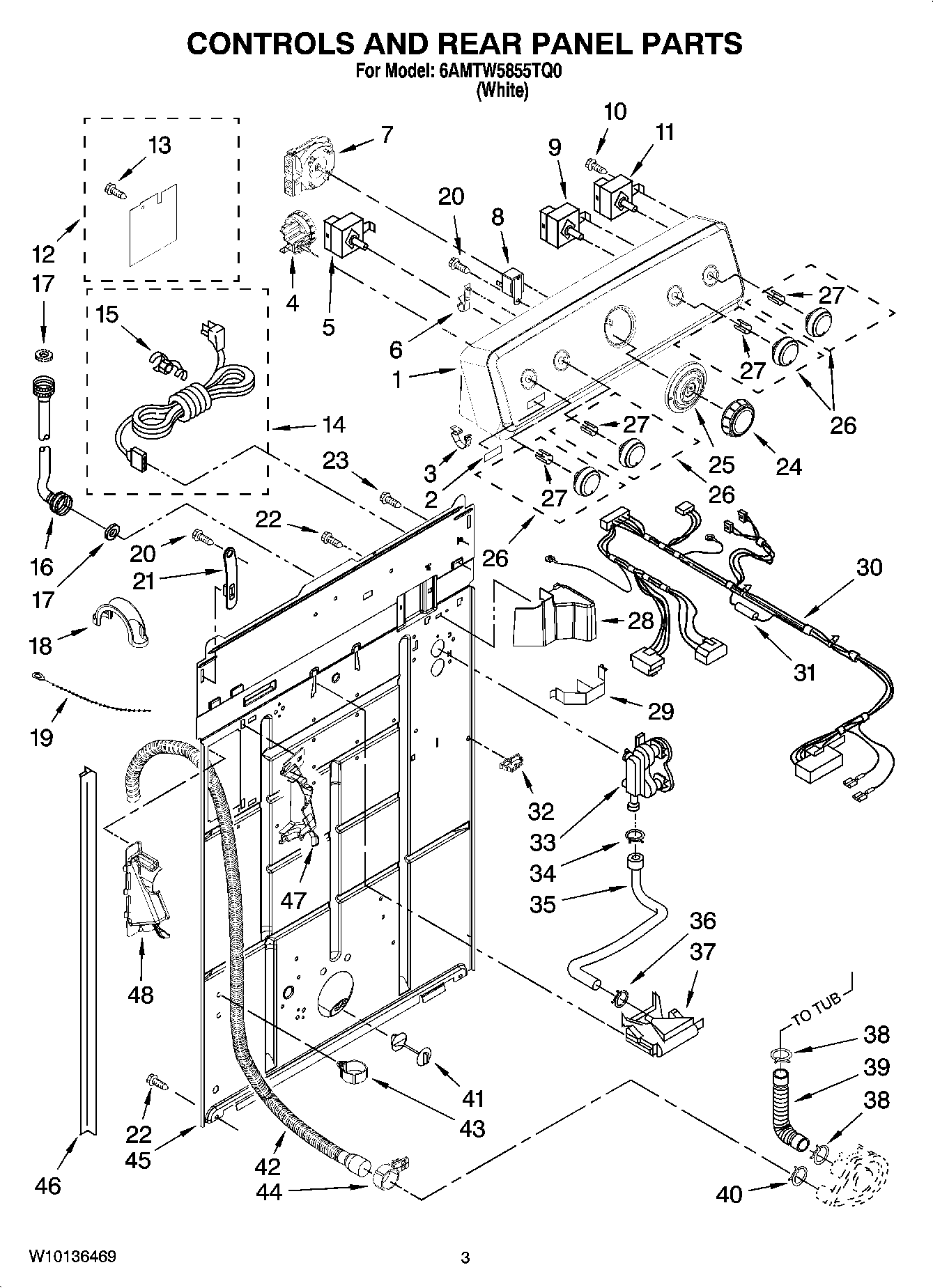

6AMTW5855TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY W10115421
2	MAY W10112569
3	MAY 8312709
4	MAY 8577844
5	MAY W10168263
6	MAY 8317975
7	MAY W10155501
8	MAY 3952439
9	MAY W10150079
10	SCREW
11	MAY W10168264
12	MAY W10093726
13	RETAINER, PUSH-IN
14	MAY W10121455
15	MAY 8559337
16	MAY 3366916
17	ACCESSORY PARTS, WASHER, INLET HOSE
18	U-Bend
19	MAY 3347868
20	SCREW,8-18 X 3/8
21	Strap, Console
22	Screw, Mixing Valve Mounting
23	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
24	Knob, Timer (Washer)
25	Dial, (Washer)
26	Knob, Control (3)
27	CLIP, SPRING
28	MAY 8314879
29	Clip, Harness & Pressure Switch
30	MAY W10133459
31	Fuse (In Harness)
32	MAY 3352944
33	MAY 3360397
34	MAY 301958
35	MAY 8541607
36	MAY 370450
37	Thermister, Inlet
38	Clamp, Hose (2)
39	Hose & Clamp Assembly
40	MAY 8317496
41	MAY 8519200
42	MAY W10127860
43	MAY 8541667
44	MAY 8541668
45	MAY 8318015
46	MAY 62747
47	MAY 8541669
48	MAY 8541658
