6AWTW5700XW0 02 – CONSOLE AND DISPENSER PARTS

6AWTW5700XW0 02 – CONSOLE AND DISPENSER PARTS

Written by

in

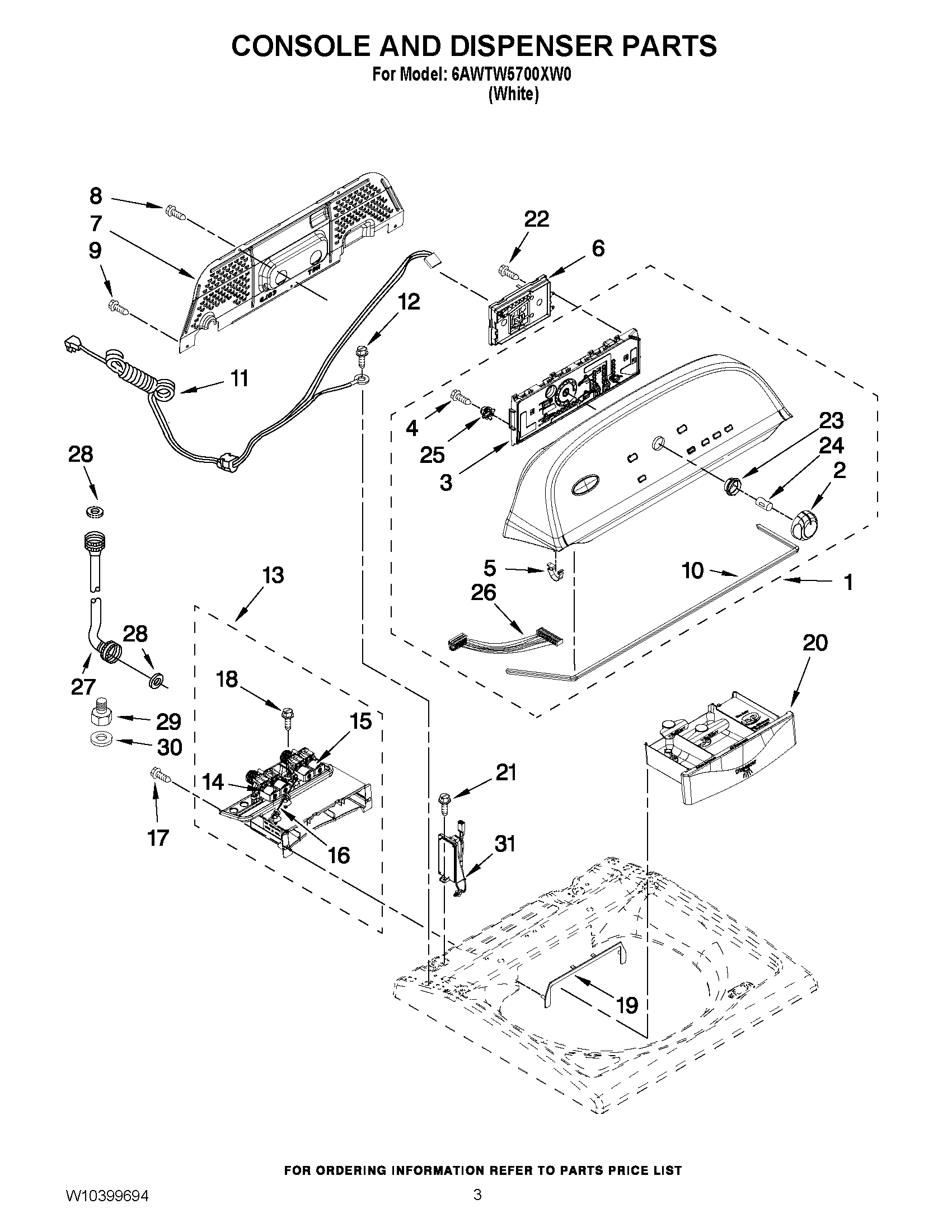

6AWTW5700XW0 02 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1CONSOLE
2WPW10251392 Whirlpool Knob
3WPW10362629 Whirlpool Electronic Control Board
4W10853898 Whirlpool Screw
5WP8312709 Whirlpool Endcap Clip
6W10445409 Whirlpool Refrigerator Electronic Control Board
7W10420984 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9WP489069 Whirlpool Compactor Screw
10W10280079 Whirlpool Seal
11CORD, POWER
12W10846509 Whirlpool Screw
13DISPENSER, HOUSING ASSEMBLY
14WPW10240976 Whirlpool Valve
15WPW10240975 Whirlpool Valve
16HARNESS, VALVE
17W11700520 Whirlpool Screw
18WPW10109200 Whirlpool Screw
19BEZEL, DISPENSER
20WPW10658443 Whirlpool Drawer
21W11693756 Whirlpool Screw Assembly
22WP9740848 Whirlpool Dishwasher Screw
23W10325119 Whirlpool Spacer
24WP8536939 Whirlpool Spring Clip
25W10274524 Whirlpool Grommet
26W10285492 Whirlpool Wire Harness
27WPW10615831 Whirlpool Fill Hose
27WPW10615809 Whirlpool Fill Hose
28WP16123 Whirlpool Washer
29WP3357397 Whirlpool Adapter
30WP3357450 Whirlpool Washer Assembly
31FILTER, INTERFERENCE
