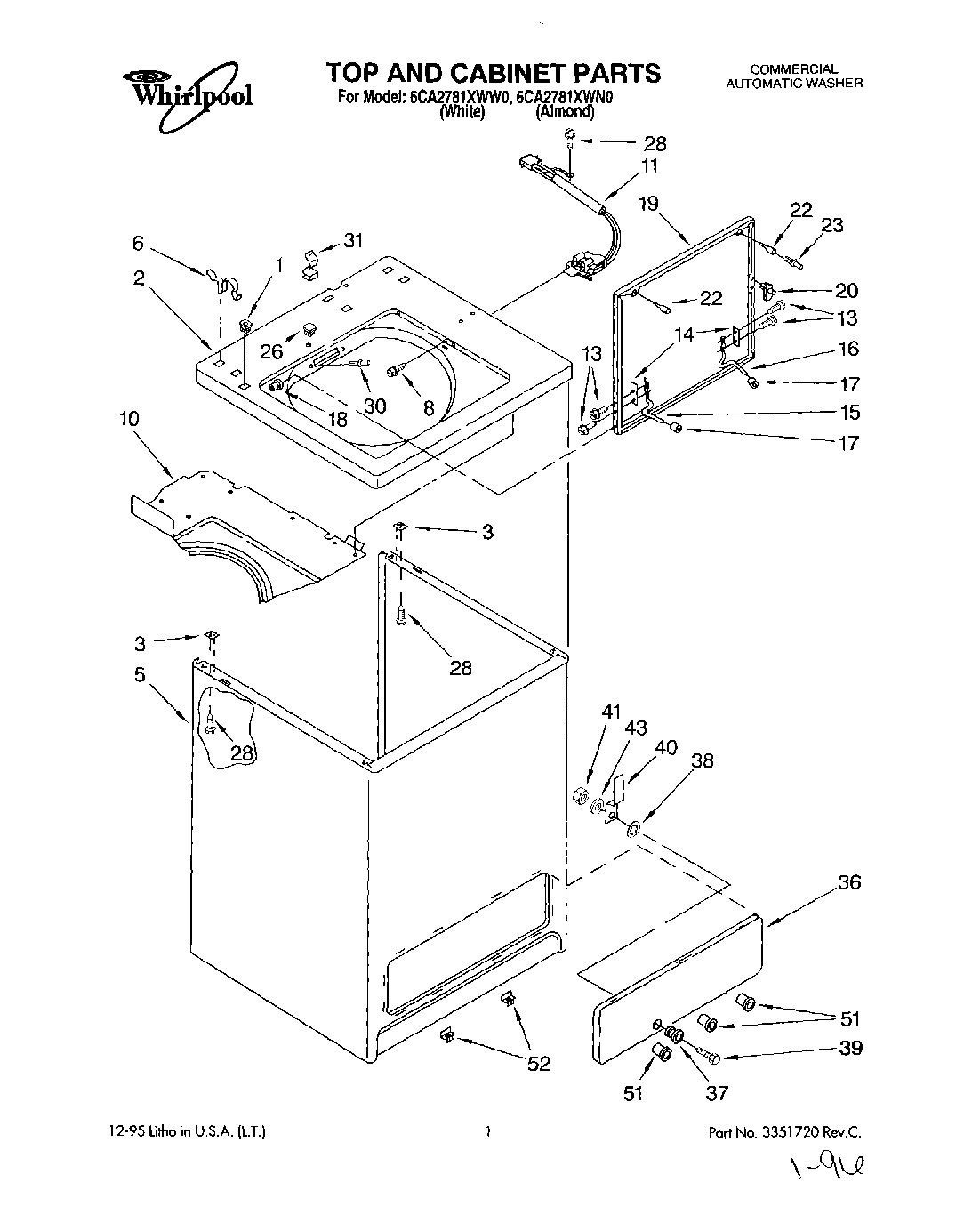

6CA2781XWG0 01 – TOP AND CABINET

Products

Position	Product
1	Nut, Push-In (2)
2	Top (White)
2	Top (Almond)
3	WP62750 Whirlpool Spacer
5	Cabinet (White)
5	Cabinet (Almond)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
10	Shield, Lid
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
19	Lid (Almond)
19	Lid (Golden Harvest)
20	WP358684 Whirlpool Strike Assembly
22	BUMPER
23	WP356907 Whirlpool Rivet
26	Stop, Push-In Top
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
36	Panel, Service (White)
36	Panel, Service (Almond)
37	Housing, Lock
38	Clip, Strain Relief
39	Lock Screw
40	Cam Lock
41	Nut, 3/8-16
43	Washer, Spring
51	Sleeve (3)
52	Spacer (2)
