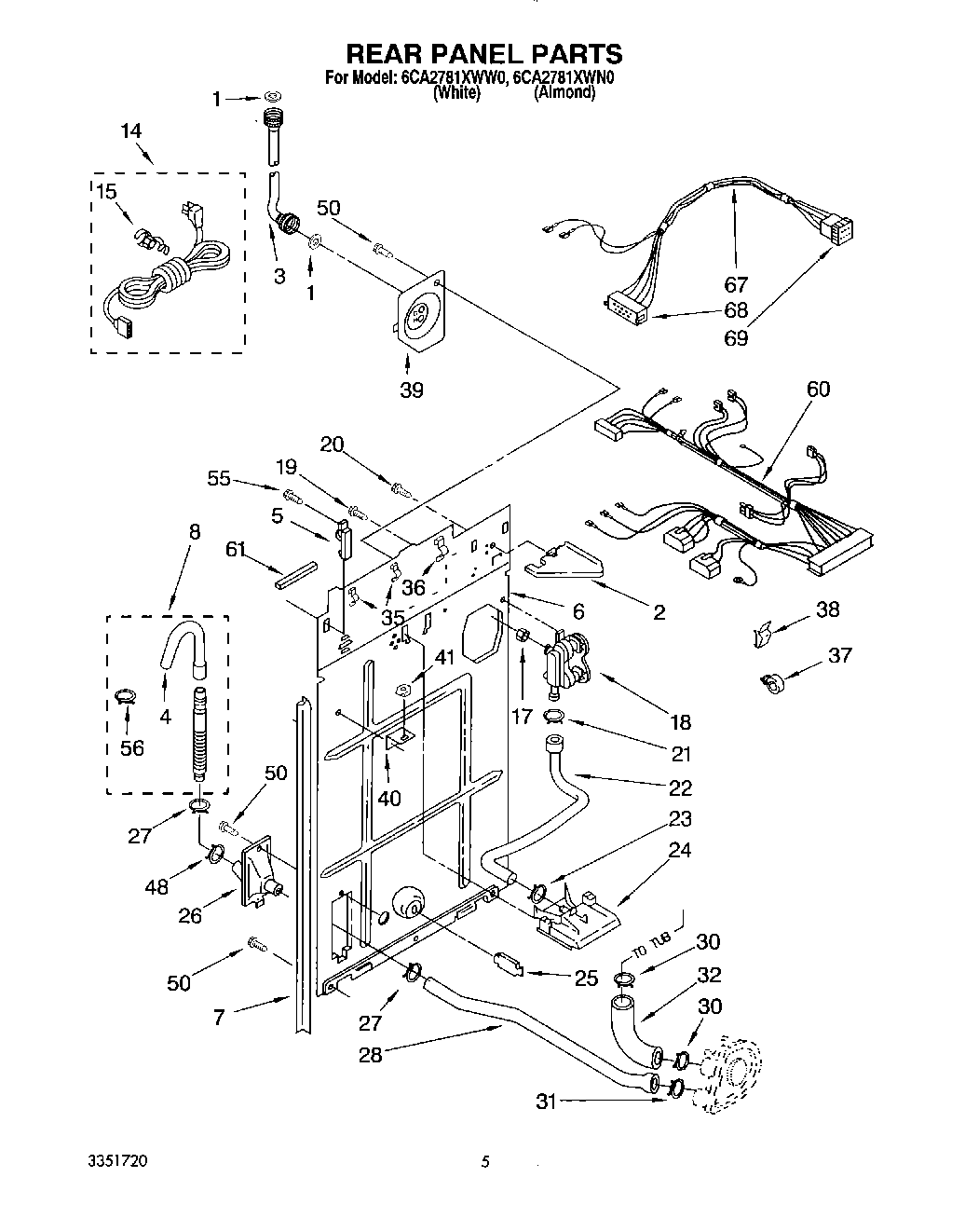

  • 6CA2781XWN0 04 – REAR PANEL

6CA2781XWN0 04 – REAR PANEL

6CA2781XWN0 04 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WPL 3348424
3WPW10489643 Whirlpool Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6285929 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
14Cord, Power
15Strain Relief, Power Cord
17WP96160 Whirlpool Washer Inlet Valve Screen
18285874 Whirlpool Valve Assembly
20SCREW
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
28WP3348552 Whirlpool Hose
30WP371502 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
368528351 Whirlpool Clip
378559320 Whirlpool Clip
38Clip, Harness
39285930 Whirlpool Plate
40Bracket, Top Lock
41WP90406 Whirlpool Nut
48WP356138 Whirlpool Hose Clamp
50WP3390631 Whirlpool Screw
55WP308685 Whirlpool Microwave Screw
56WP3357331 Whirlpool Clamp
60Harness, Wiring (For Detail See Wiring Harness Parts Page) Also See Clips
61Edge Protector
67Harness, Timer (Includes Illus. 68 & 69)
68W10876590 Whirlpool Connector
69Connector
