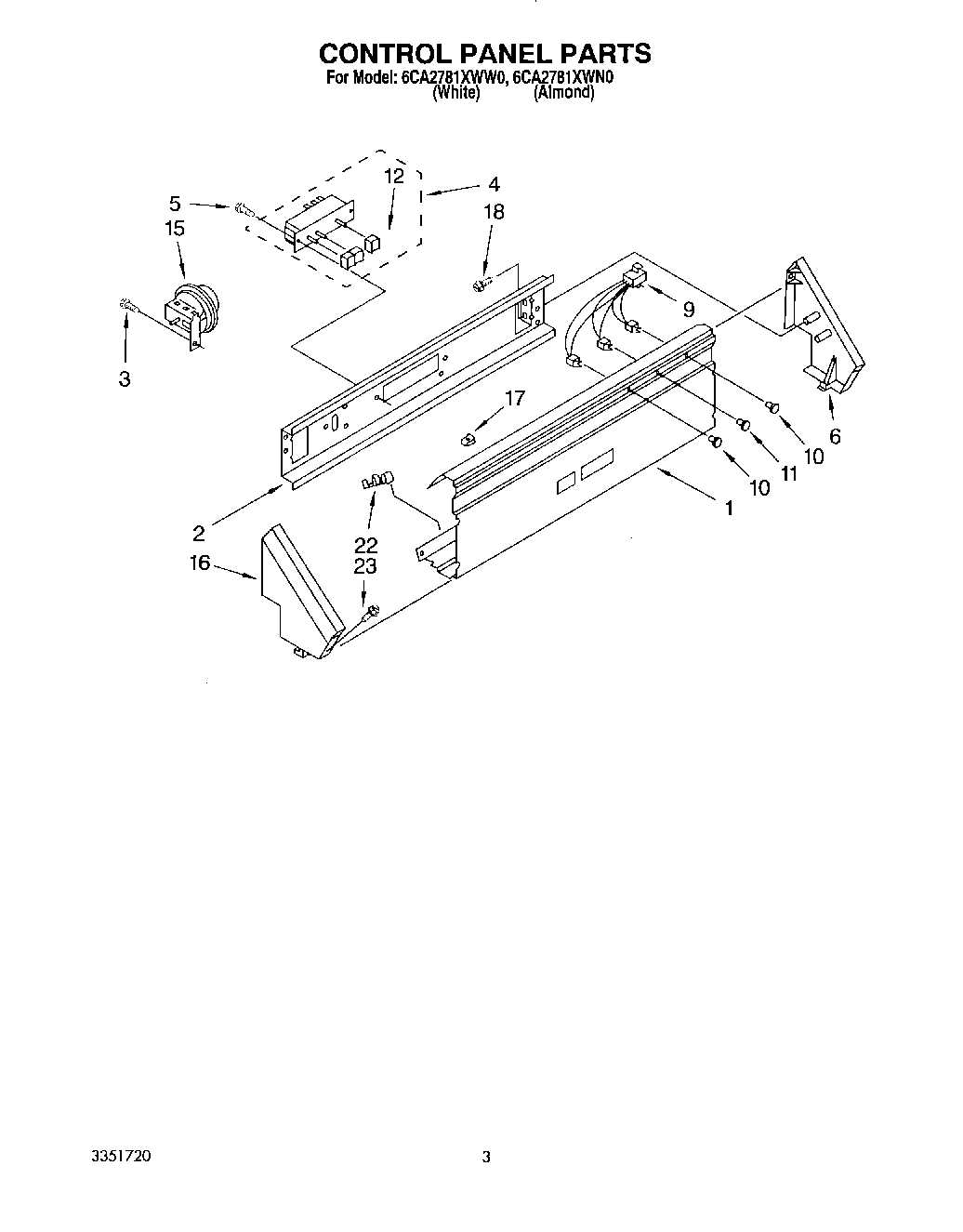

6CA2781XWW0 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Console
2	Bracket, Control
3	WP90767 Whirlpool Screw
4	W10330142 Whirlpool Push Button Switch
5	WP965173 Whirlpool Dishwasher Screw
6	End Cap (R.H.)
9	Lights, Indicator
10	WP3348109 Whirlpool Light Lens
11	WP3348110 Whirlpool Light Lens
12	Button (4)
15	Switch, Water Level
16	Cap, End (L.H.)
17	WP689559 Whirlpool Nut
18	WPW10109200 Whirlpool Screw
22	W10113937 Whirlpool Clamp
23	WPL 64211
