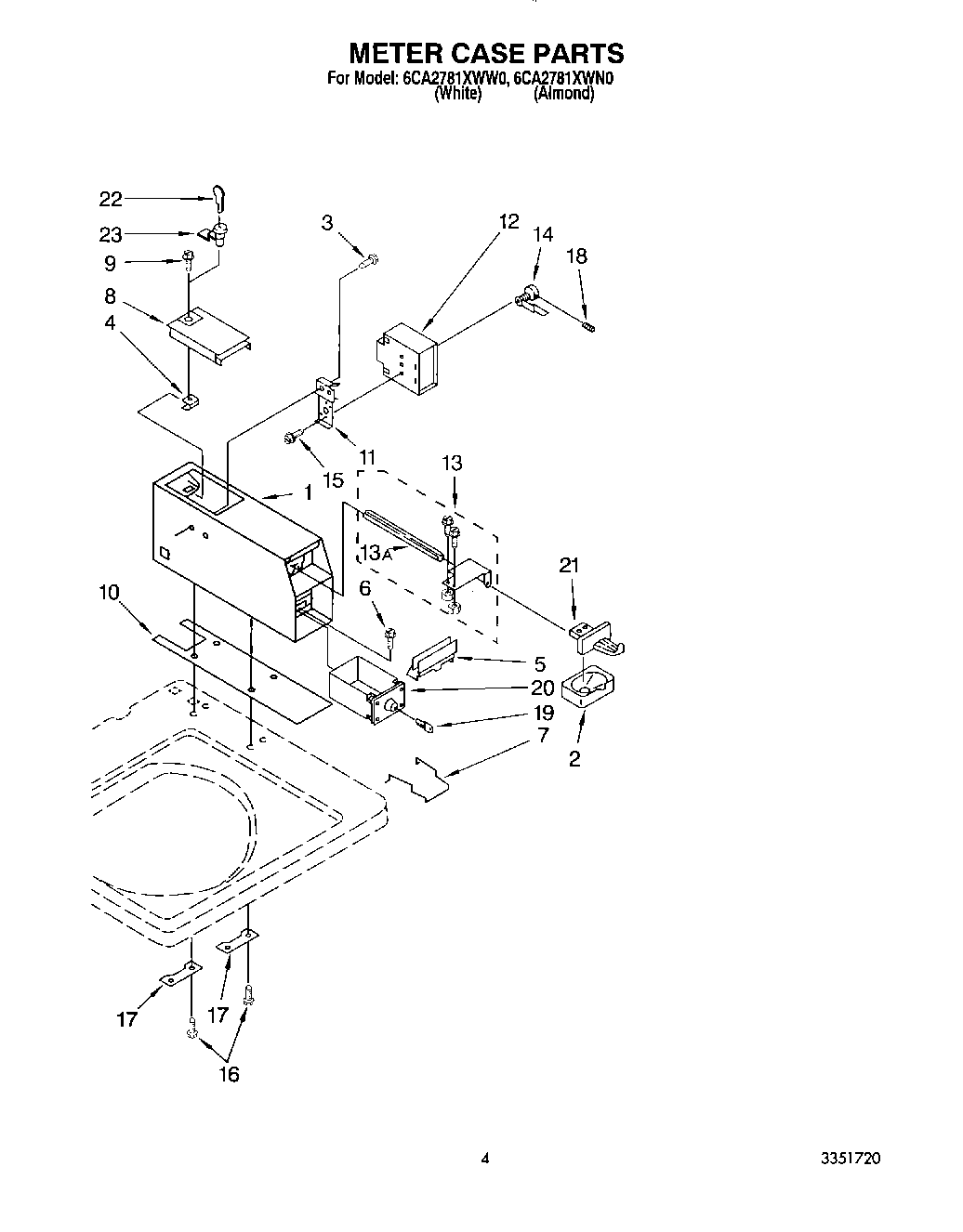

6CA2781XWW0 03 – METER CASE

Products

Position	Product
1	Meter Case (White)
1	Meter Case (For Almond Model)
2	WP385421 Whirlpool Coin Operated Laundry Funnel
3	339805 Whirlpool Screw
4	WP90406 Whirlpool Nut
5	Spacer, Money Vault (For Almond Model)
5	Spacer (Money Vault) (White)
6	W11715721 Whirlpool Screw Assembly
7	Guide, Drawer
8	Door, Service (For Almond Model)
8	Door, Service (White)
9	Screw & Washer
10	WP3954812 Whirlpool Cushion
11	Bracket, Timer
12	Timer, 50 Hz.
13	WPL 385558
13	Nut, Hex
13A	WP8576635 Whirlpool Bolt
14	Clutch, Timer
15	WP356418 Whirlpool Screw
16	W10841059 Whirlpool Screw
17	3347825 Whirlpool Plate
18	Setscrew, 10-32
