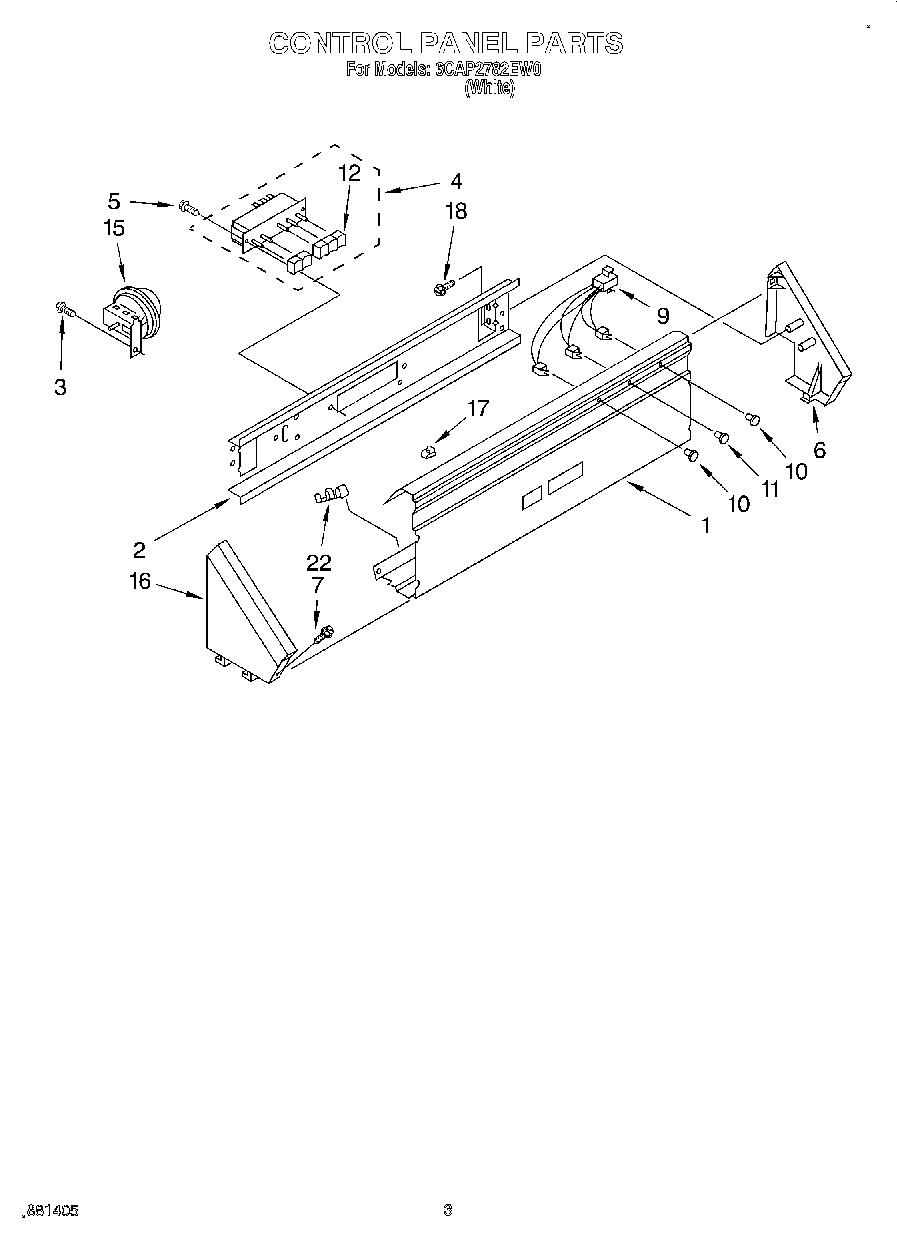

6CAP2782EW0 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Console
2Bracket, Control
3WP90767 Whirlpool Screw
4Switch, Cycle Selector (Includes Illus. No. 12)
5WP965173 Whirlpool Dishwasher Screw
6End Cap (R.H.)
7WPL 64211
9Lights, Indicator
10WP3348109 Whirlpool Light Lens
11WP3348110 Whirlpool Light Lens
12Button (4)
15Switch, Water Level
16Cap, End (L.H.)
17WP689559 Whirlpool Nut
18WPW10109200 Whirlpool Screw
22W10113937 Whirlpool Clamp
