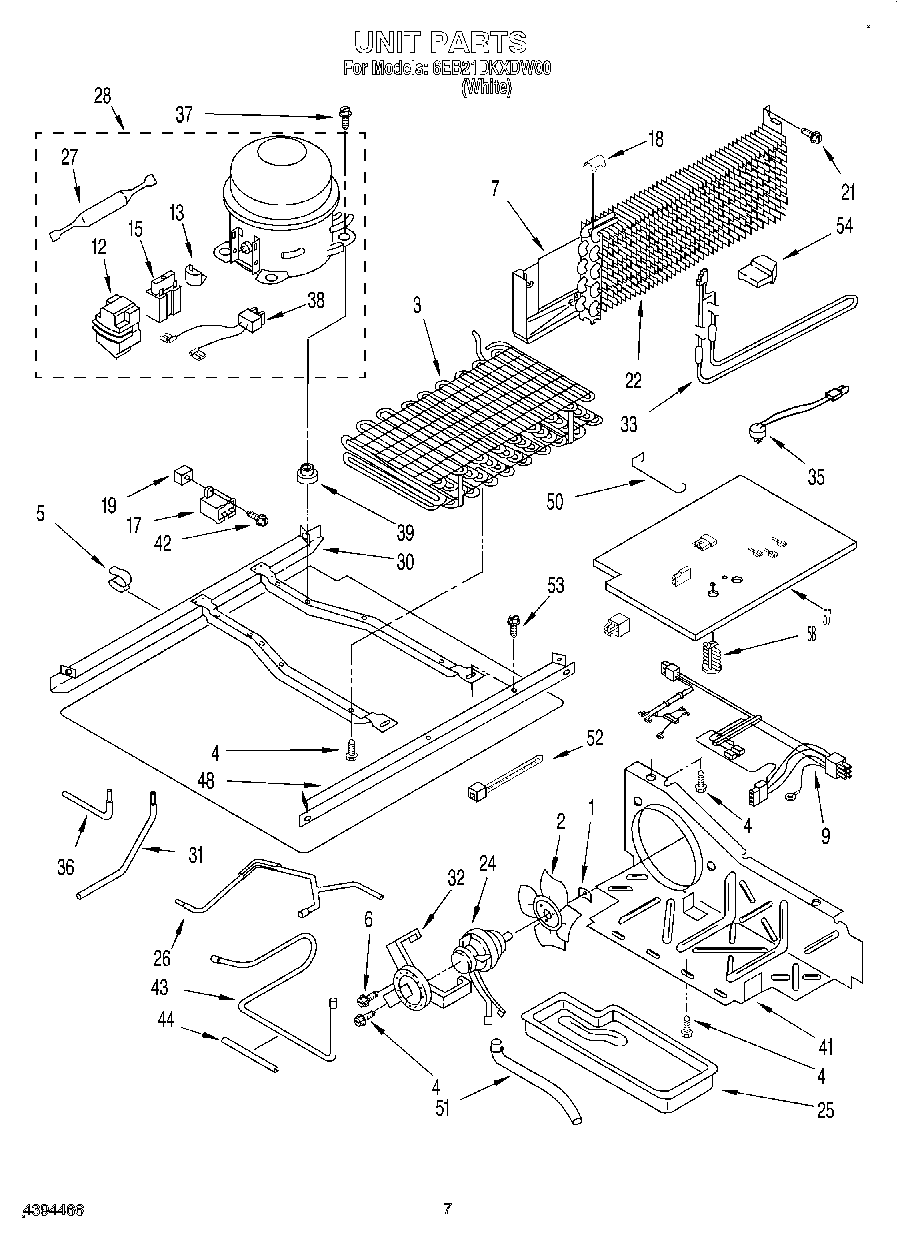

6EB21DKXDW00 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan & Heat Shield Assy.
9	Wire Assembly
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2169412 Whirlpool Overload Relay
15	Relay (See Overload)
17	WP2201147 Whirlpool Refrigerator Capacitor
18	9791833 Whirlpool Refrigerator Clip
19	Screw Grommet
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
24	8201703 Whirlpool Refrigerator Condenser Motor
25	Tray, Evaporator
26	Tube, Discharge
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10183407 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
31	Tube, Condenser To Heat Loop
32	Bracket, Motor
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36	2154109 Whirlpool Refrigerator Tube
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
41	Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	Tube, Suction
44	SLEEVE
48	Unit Mounting Rail
50	1105612 Whirlpool Fan Guard
51	Extension, Drain Tube
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Support
57	Cover-Unit Btm.
58	978027 Whirlpool Refrigerator Primary Valve
58	VALVE, ACCESS (1/2“)
58	978026 Whirlpool Refrigerator Primary Valve
58	876764 Whirlpool Refrigerator Primary Valve
58	489396 Whirlpool Refrigerator Clip
58	WP978025 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (5/8“)
58	978030 Whirlpool Refrigerator Valve
