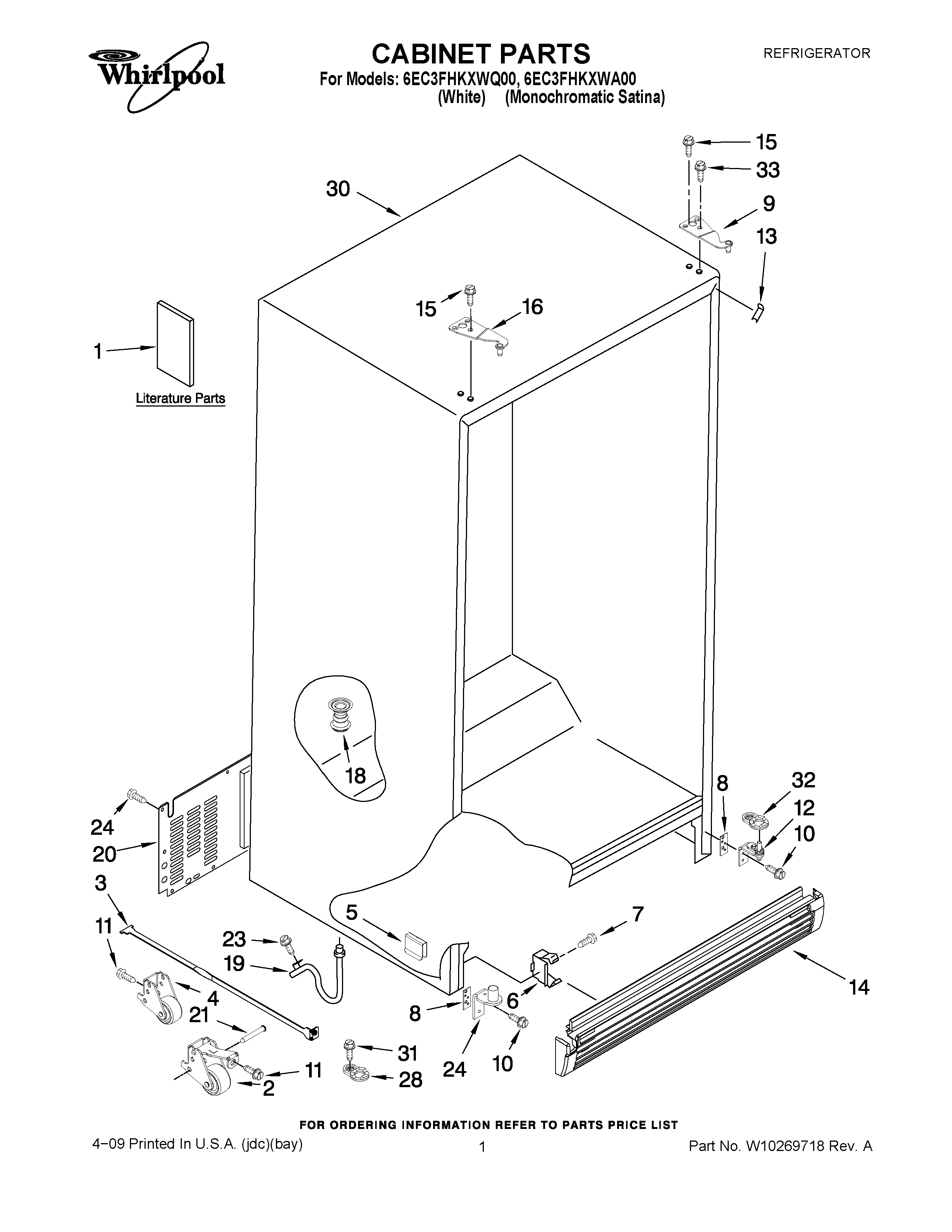

6EC3FHKXWQ00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
1	ENERGY GUIDE
2	FRONT ROLLER ASM (RIGHT SIDE)
2	FRONT ROLLER ASM (LEFT SIDE)
3	Strap, Roller
4	WPW10173132 Whirlpool Refrigerator Cabinet Roller
5	W11545866 Whirlpool Refrigerator Clip
6	WP2155013 Whirlpool Refrigerator Clip
7	W10151272 Whirlpool Refrigerator Screw
8	2223545 Whirlpool Refrigerator Shim
9	2307008AP Whirlpool Refrigerator Hinge
10	SCREW
11	W10142289 Whirlpool Air Conditioner Screw
12	Hinge Assembly, Bottom-RC
13	2223893W Whirlpool Refrigerator Filler
13	2223893AP Whirlpool Refrigerator Filler
14	GRILLE (WHITE)
14	GRILLE (MIDNIGHT GREY)
15	WP489478 Whirlpool Refrigerator Screw
16	2307007AP Whirlpool Refrigerator Hinge
18	W11566763 Whirlpool Fitting
19	Tube, Extension
20	Cover, Unit
21	PIN, ROLLER
23	WP489464 Whirlpool Refrigerator Screw
24	Hinge Assembly, Bottom-FC
28	Door Closer, FC
30	Cabinet, (Not A Serviceable Part)
31	WP489483 Whirlpool Screw
32	WPL 2307049
33	WP693995 Whirlpool Screw
