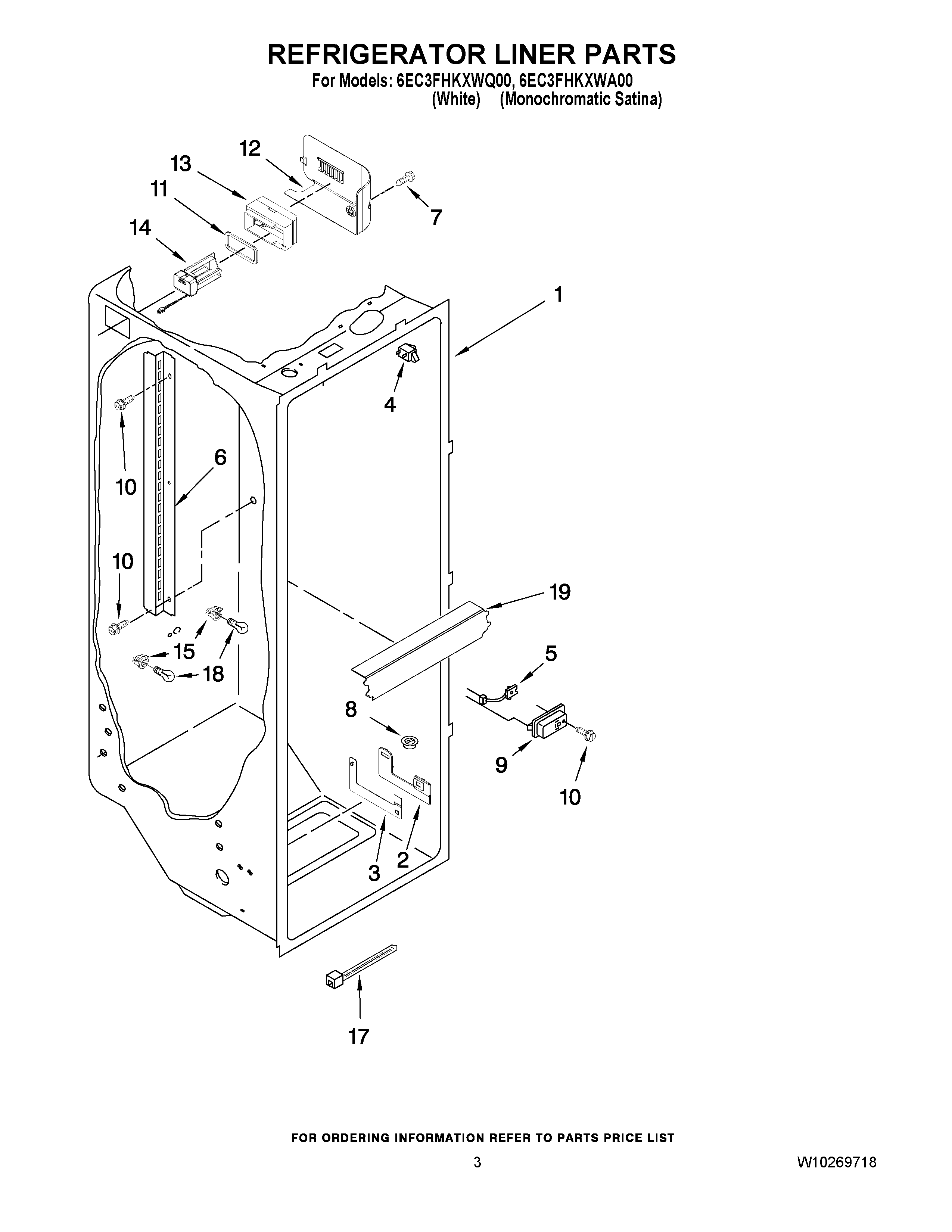

6EC3FHKXWQ00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2223524 Whirlpool Escutcheon
3	2223339 Whirlpool Slide
4	W11457217 Whirlpool Refrigerator Rocker Switch Combination
5	WP2188820 Whirlpool Refrigerator Thermistor
6	Shelf Ladder
7	WP693995 Whirlpool Screw
8	2171846 Whirlpool Refrigerator Release Valve
9	WP2317844 Whirlpool Refrigerator Cover
10	WP489478 Whirlpool Refrigerator Screw
11	Gasket, Air Baffle
12	COVER, AIR DIFFUSER
13	ASSEMBLY, AIR DIFFUSER
14	WP2220377 Whirlpool Refrigerator Air Baffle
15	W11447232 Whirlpool Refrigerator Socket
17	WPW10339879 Whirlpool Wire Tie
18	W11618980 Whirlpool Light Bulb
19	LENS, LIGHT
