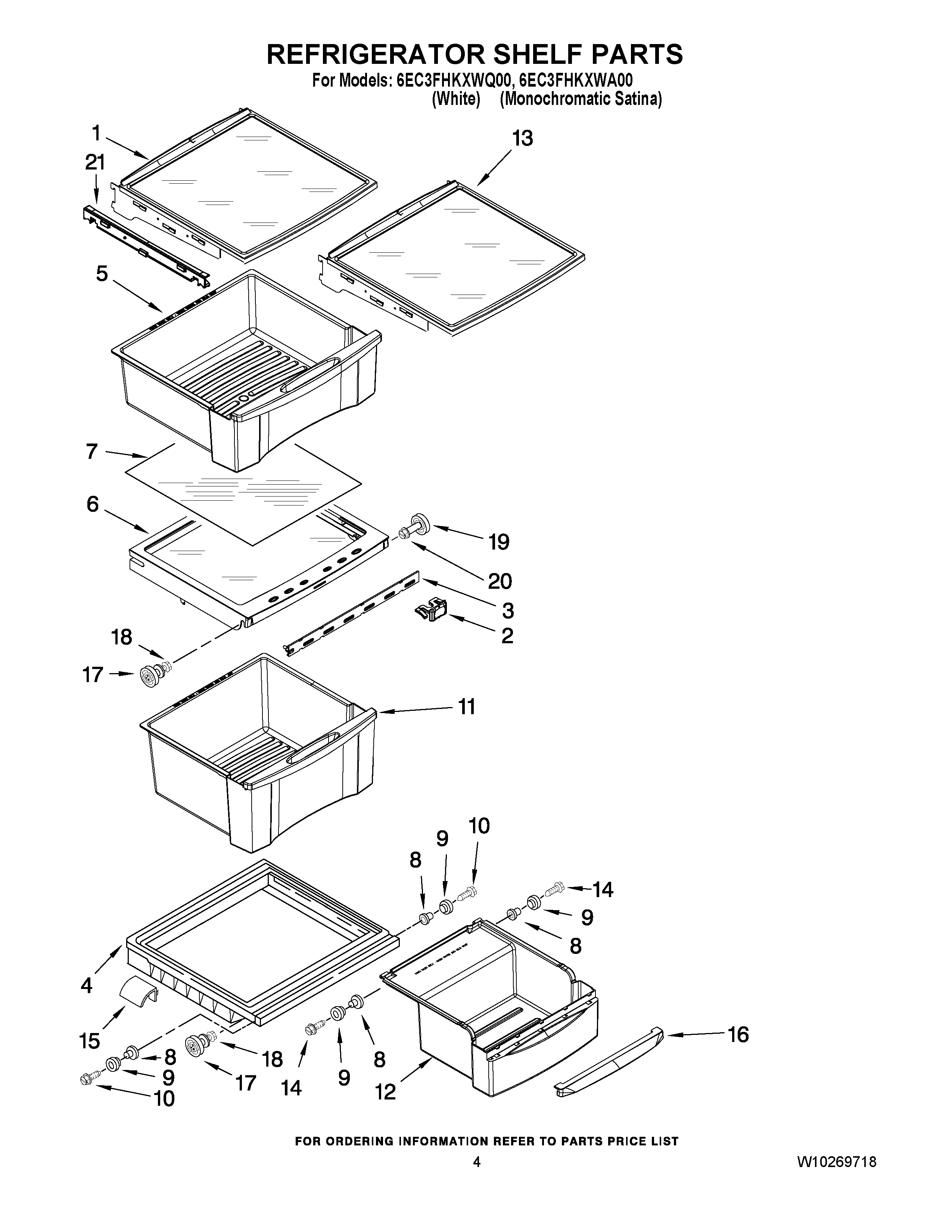

6EC3FHKXWQ00 03 – REFRIGERATOR SHELF PARTS

6EC3FHKXWQ00 03 – REFRIGERATOR SHELF PARTS

Written by

in

6EC3FHKXWQ00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1WP2223288 Whirlpool Refrigerator Cantilever Shelf
2Knob, Humidity Control
32223308 Whirlpool Refrigerator Slide
4WPW10270150 Whirlpool Crisper Drawer Cover
5Snack Bin Asm
6Cover, Crisper
7WP2223591 Whirlpool Refrigerator Glass Shelf
8Eyelet, Roller
9Roller
10WPW10272364 Whirlpool Refrigerator Screw
11WPW10233488 Whirlpool Refrigerator Crisper Pan
12ASSEMBLY, MEAT PAN
13W10235943 Whirlpool Refrigerator CANT Shelf
14WP489261 Whirlpool Refrigerator Screw
152223487 Whirlpool Refrigerator Deflector
16HANDLE, MEAT PAN
17W11223328 Whirlpool Refrigerator Shelf Stud
18WP3-24004-109 Whirlpool Refrigerator Screw
19W11527119 Whirlpool Refrigerator Shelf Stud
20WP3400806 Whirlpool Screw
21WP2223320 Whirlpool Slide Track Pan
