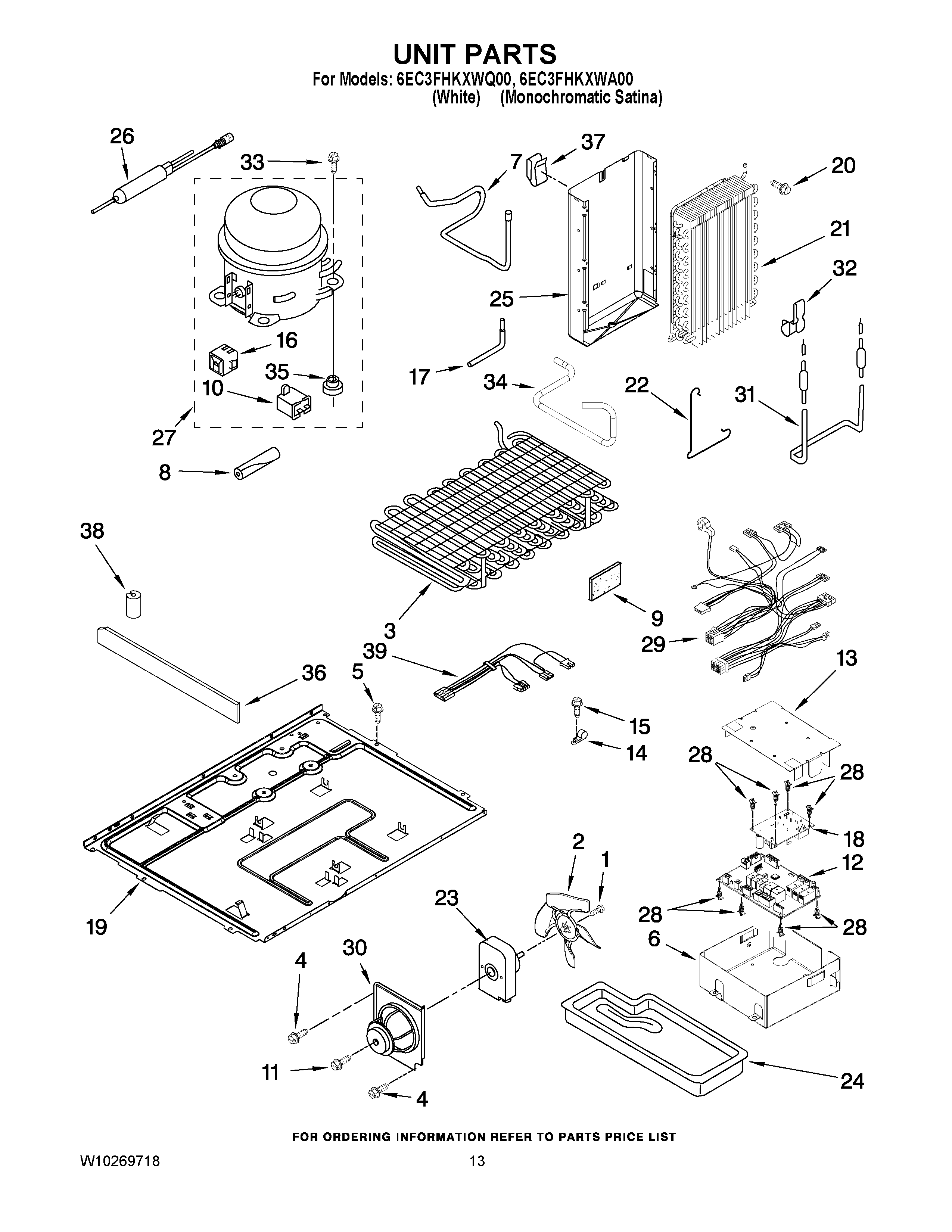

6EC3FHKXWQ00 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	REFRIGERANT CHARGE 6.00 oz. (R-134A)
1	WPW10141625 Whirlpool Refrigerator Screw Assembly
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	ASSEMBLY, CONDENSER
4	BOLT
5	WP3400906 Whirlpool Refrigerator Screw
6	HOUSING, CONTROL BOARD
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	W11553819 Whirlpool Refrigerator Insulation
10	2321245 Whirlpool Refrigerator Capacitor
11	WP489464 Whirlpool Refrigerator Screw
12	WPW10158418-includeCORE Whirlpool WPW10158418 Refrigerator Electronic Control Board + Core
13	COVER, CTRL BOARD
14	WP1115374 Whirlpool Refrigerator Clip
15	WP489478 Whirlpool Refrigerator Screw
16	Start-Device, Combination (Start Relay and Overload)
17	W10858105 Whirlpool Refrigerator Tube
18	ELECTRONIC CONTROL
19	Baseplate
20	WPW10171469 Whirlpool Refrigerator Screw
21	WP2188823 Whirlpool Refrigerator Evaporator
22	Clamp
23	WP2321271 Whirlpool Refrigerator Condenser Motor
24	Tray, Evaporator
25	SHIELD, HEAT
26	WPW10143759 Whirlpool Dryer Filter
27	WP8201733 Whirlpool Refrigerator Compressor
28	2223800 Whirlpool Refrigerator Spacer
29	HARNESS, MAIN CONTROL
30	BRACKET, FAN MOUNTING
31	W10199151 Whirlpool Refrigerator Heater
32	W11623163 Whirlpool Refrigerator Clip
34	Tube, Discharge
35	876811 Whirlpool Grommet
36	2223394 Whirlpool Extension
37	Clip, Heat Shield
38	W10852725 Whirlpool Refrigerator Grommet
39	UNIT HARNESS
