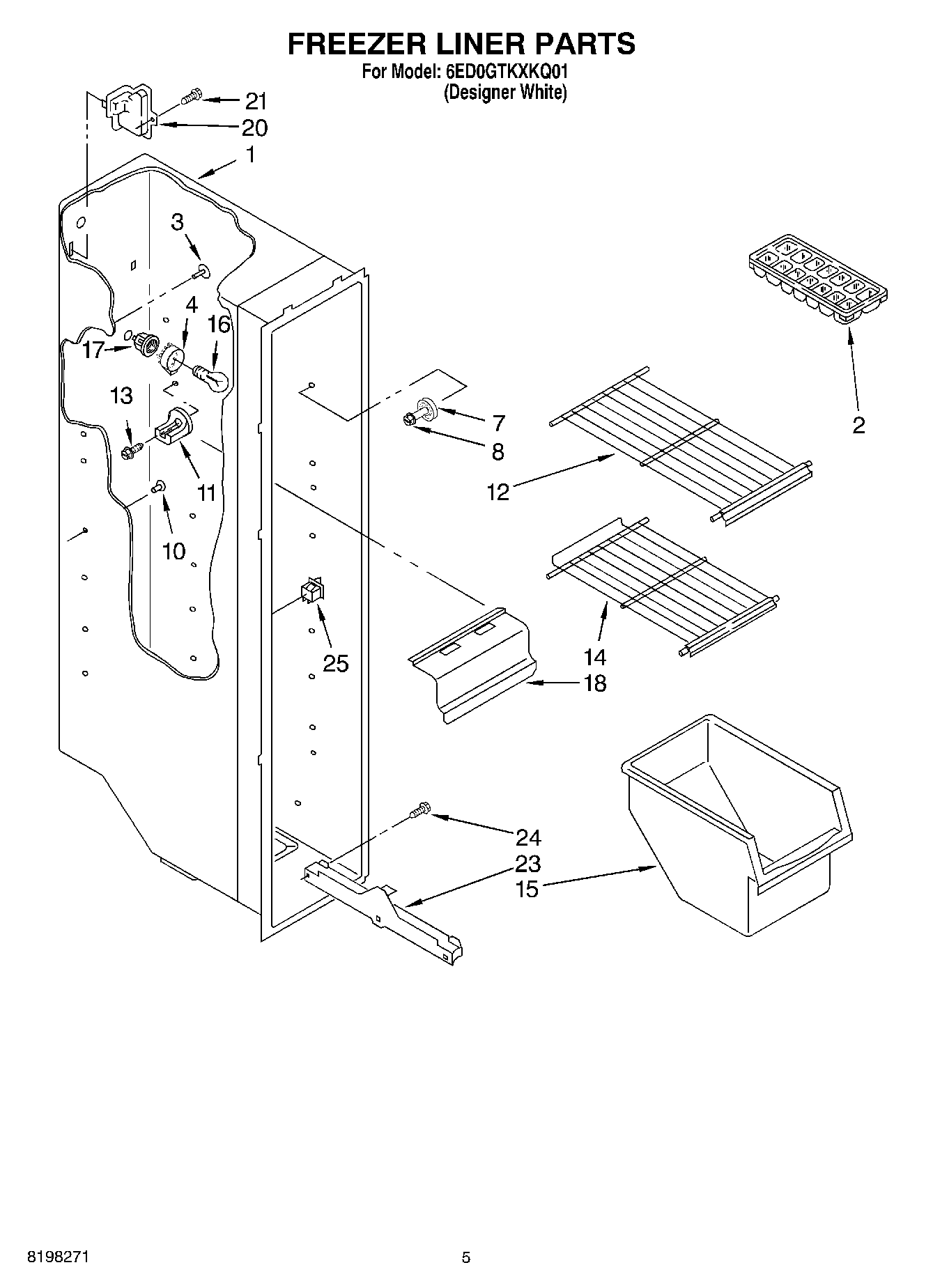

6ED0GTKXKQ01 03 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	WP841180A Whirlpool Microwave Glass Turntable Tray
3	WP941839 Whirlpool Refrigerator Button Plug
4	Shroud, Light
7	WP2196483 Whirlpool Refrigerator Shelf Stud
8	WP3400806 Whirlpool Screw
10	Grommet
11	Stud, Rear
12	Shelf
13	W10142289 Whirlpool Air Conditioner Screw
14	Shelf (2)
14	Shelf (1)
15	Bin, Freezer
16	WP67002552 Whirlpool Refrigerator Light Bulb
17	SOCKET
18	WP2155595 Whirlpool Refrigerator Light Lens
20	Cover, Wiring
21	SCREW
23	Slide, Basket (Left Side)
23	W10845583 Whirlpool Refrigerator Track
24	718257 Whirlpool Dishwasher Screw
25	W11384469 Whirlpool Door Switch
