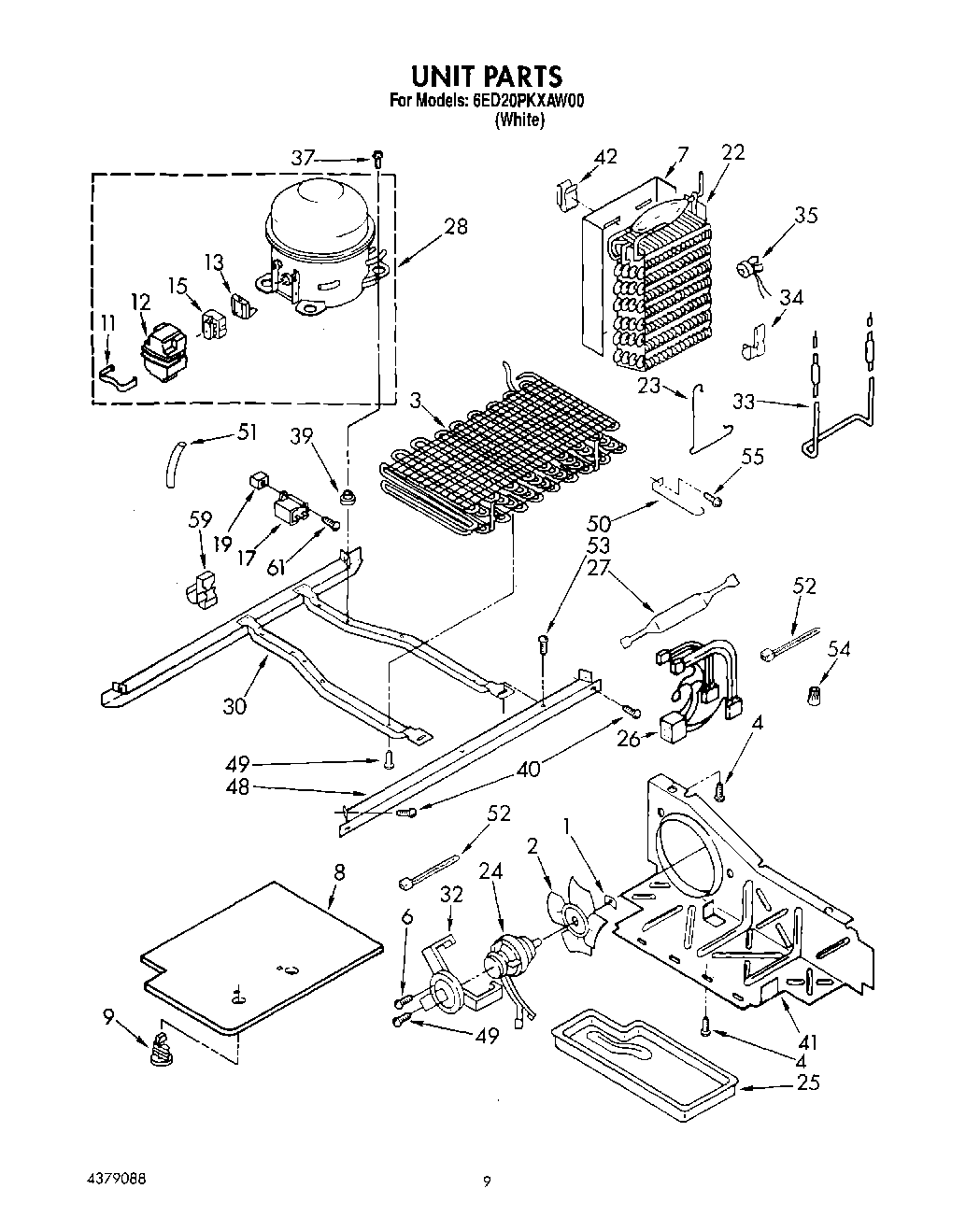

6ED20PKXAW00 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	Cover-Unit Btm.
9	489396 Whirlpool Refrigerator Clip
11	Strap
12	Cover
13	Overload
15	Relay (See Overload)
17	Capacitor
19	Screw Grommet
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	Fan, Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Wiring Assy. Intermediate
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 11, (Also Order)
28	876765 Whirlpool Primary Mounting Kit Refrigerator
30	Unit Mounting Frame
32	Fan, Motor Bracket
33	Heater, Defrost
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	Air, Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WP489478 Whirlpool Refrigerator Screw
59	Clip, Wire
61	876764 Whirlpool Refrigerator Primary Valve
61	VALVE, ACCESS (5/8“)
61	W11693756 Whirlpool Screw Assembly
61	978030 Whirlpool Refrigerator Valve
61	VALVE, ACCESS (1/2“)
61	978026 Whirlpool Refrigerator Primary Valve
61	WP978025 Whirlpool Refrigerator Valve
61	978027 Whirlpool Refrigerator Primary Valve
