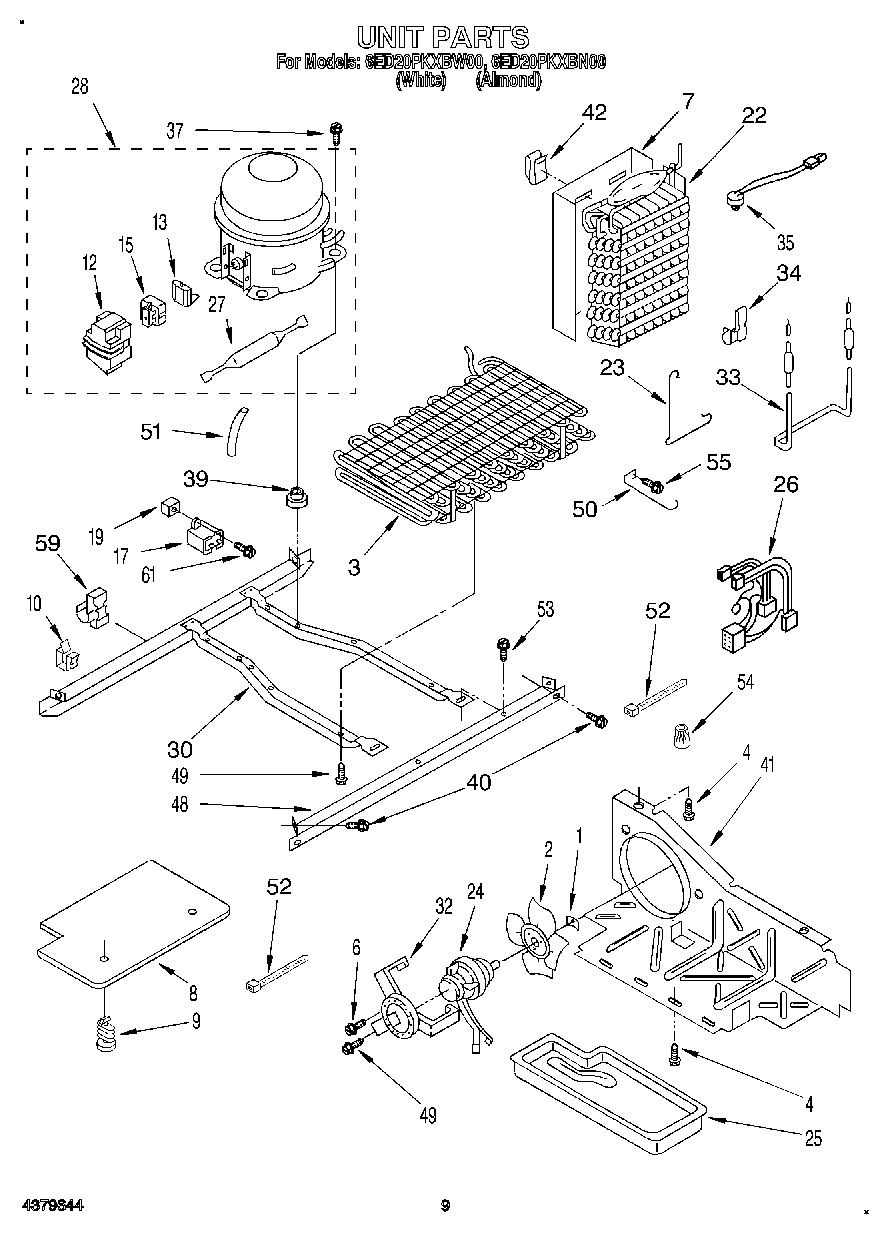

6ED20PKXBN00 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	Cover-Unit Btm.
9	489396 Whirlpool Refrigerator Clip
10	W10169512 Whirlpool Clip
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2169412 Whirlpool Overload Relay
15	WP2262184 Whirlpool Refrigerator Start Relay
17	WP2201147 Whirlpool Refrigerator Capacitor
19	Screw Grommet
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	8201703 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Wiring Assy. Intermediate
27	W10843121 Whirlpool Refrigerator Tube
28	W10183407 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
30	Unit Mounting Frame
32	Bracket, Motor
33	Heater, Defrost
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WP489478 Whirlpool Refrigerator Screw
59	Clip, Wire
61	VALVE, ACCESS (5/8“)
61	W11693756 Whirlpool Screw Assembly
61	VALVE, ACCESS (1/2“)
61	876764 Whirlpool Refrigerator Primary Valve
61	978026 Whirlpool Refrigerator Primary Valve
61	978027 Whirlpool Refrigerator Primary Valve
61	WP978025 Whirlpool Refrigerator Valve
61	978030 Whirlpool Refrigerator Valve
