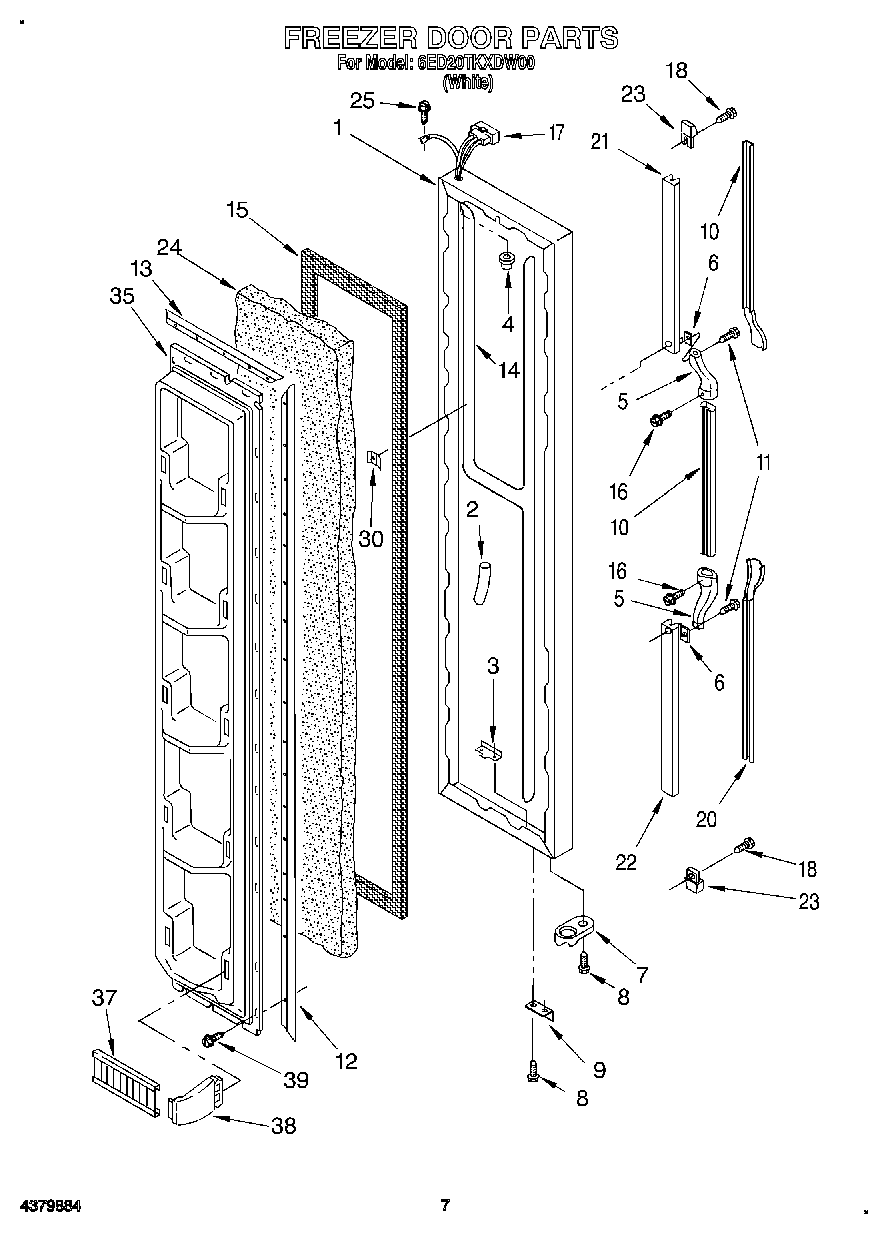

6ED20TKXDW00 05 – FREEZER DOOR

6ED20TKXDW00 05 – FREEZER DOOR

Written by

in

6ED20TKXDW00 05 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (White)
2Tube, Door Wiring
3Tap, Plate
4Cap, Hinge Sleeve (2)
5End Cap, Center Handle
6Shim
74318165 Whirlpool Refrigerator Door Closure Cam Kit
8WP999367 Whirlpool Refrigerator Screw
9Bracket, Door Stop
10Insert, Handle
12Retainer, Gasket
13Retainer, Gasket
14Heater, Door
152188405A Whirlpool Refrigerator Door Gasket
16Screw
17Housing Plug
18Screw
19Handle, Center (White)
20Insert, Handle (White)
21Retainer, Insert
22Retainer, Insert (Bottom)
23End Cap (2)
24WPL 876029
25WP488234 Whirlpool Air Conditioner Screw
30Screw Anchor (2)
35Panel, Interior Door
37Trim, Door Shelf
38WP2196100 Whirlpool Shelf Retainer Bar Support
39WP489069 Whirlpool Compactor Screw
