6ED20TKXDW00 08 – CONTROL, LIT/OPTIONAL

6ED20TKXDW00 08 – CONTROL, LIT/OPTIONAL

Written by

in

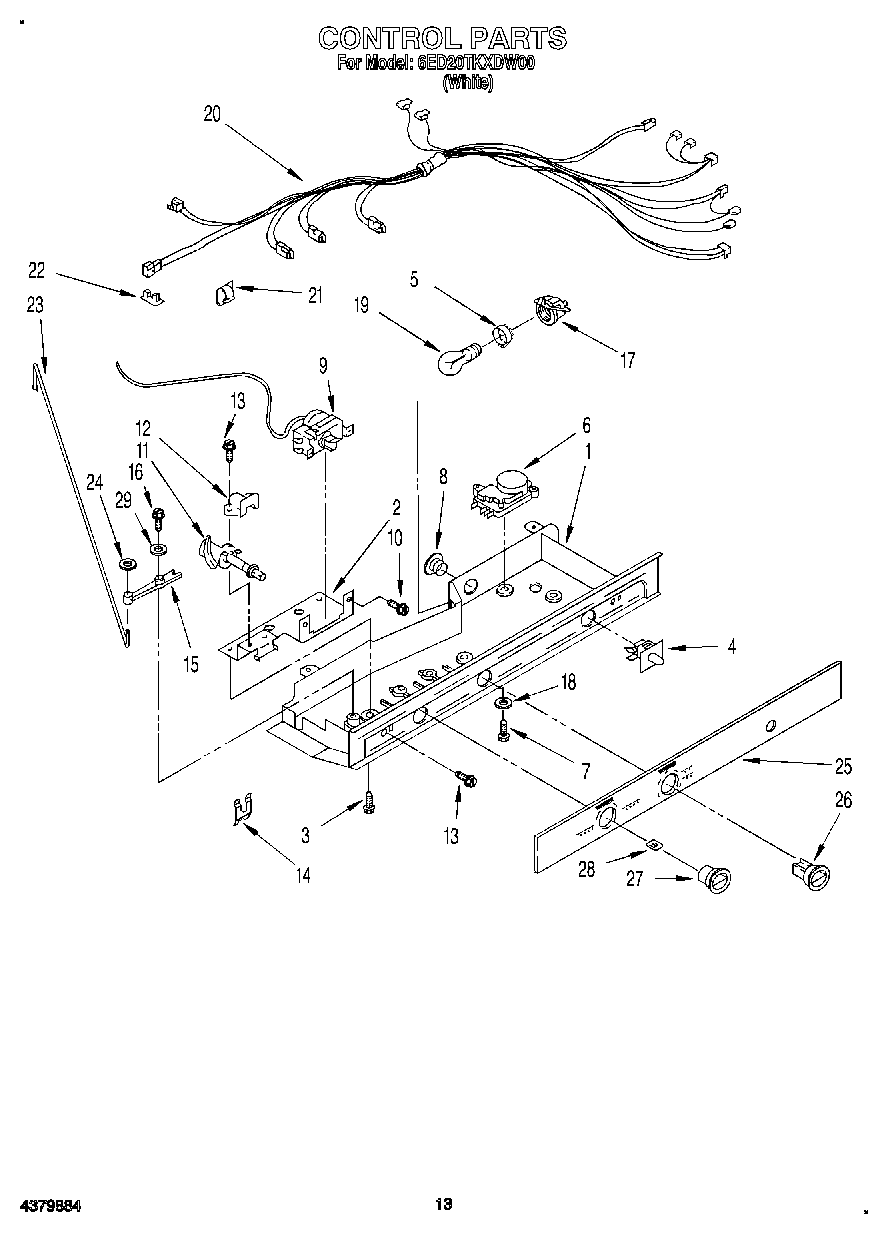

6ED20TKXDW00 08 – CONTROL, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2179963
WPW10190943 Whirlpool Refrigerator Icemaker
Torx Key
WPL LIT2175223
WPL LIT2170416
1Control Box
2Mounting Bracket
3Screw (2)
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2175210 Whirlpool Refrigerator Shroud
6WP2166867 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11Cam Assembly
121110560 Whirlpool Refrigerator Bearing
13WP489478 Whirlpool Refrigerator Screw
14Retainer, Damper
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18Washer
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
28Knob, Retainer
29WP72107 Whirlpool Touchup
29Leveler (Thinner)
29833938 Whirlpool Refrigerator Terminal
2972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
29489203 Whirlpool Refrigerator Washer
2972017 Whirlpool Appliance Touch-Up Paint White
29350956 Whirlpool Spray Assembly
29799344 Whirlpool Refrigerator Paint
29350930 Whirlpool White Spray Paint
29Almond (Uncut)
29350942 Whirlpool Spray Paint
29511873 Whirlpool Refrigerator Paint
29606755 Whirlpool Refrigerator Bag
29876370 Whirlpool Refrigerator Insulation
29WP503695 Whirlpool Refrigerator Sealer
29WP505587 Whirlpool Refrigerator Sealer
29WP542638 Whirlpool Refrigerator Grease
29Golden Harvest
29Golden Harvest (Uncut)
29TAPE, VINYL (3/4 X 108“)
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29Enamel, Black (1 Qt. Uncut)
29WPL 799833
29WPL 876029
29285006 Whirlpool Spray
2972032 Whirlpool Touch Up Paint Black
29212643 Whirlpool Refrigerator Permagum Sealer
