6ED20TKXFW00 08 – CONTROL, LIT/OPTIONAL

6ED20TKXFW00 08 – CONTROL, LIT/OPTIONAL

Written by

in

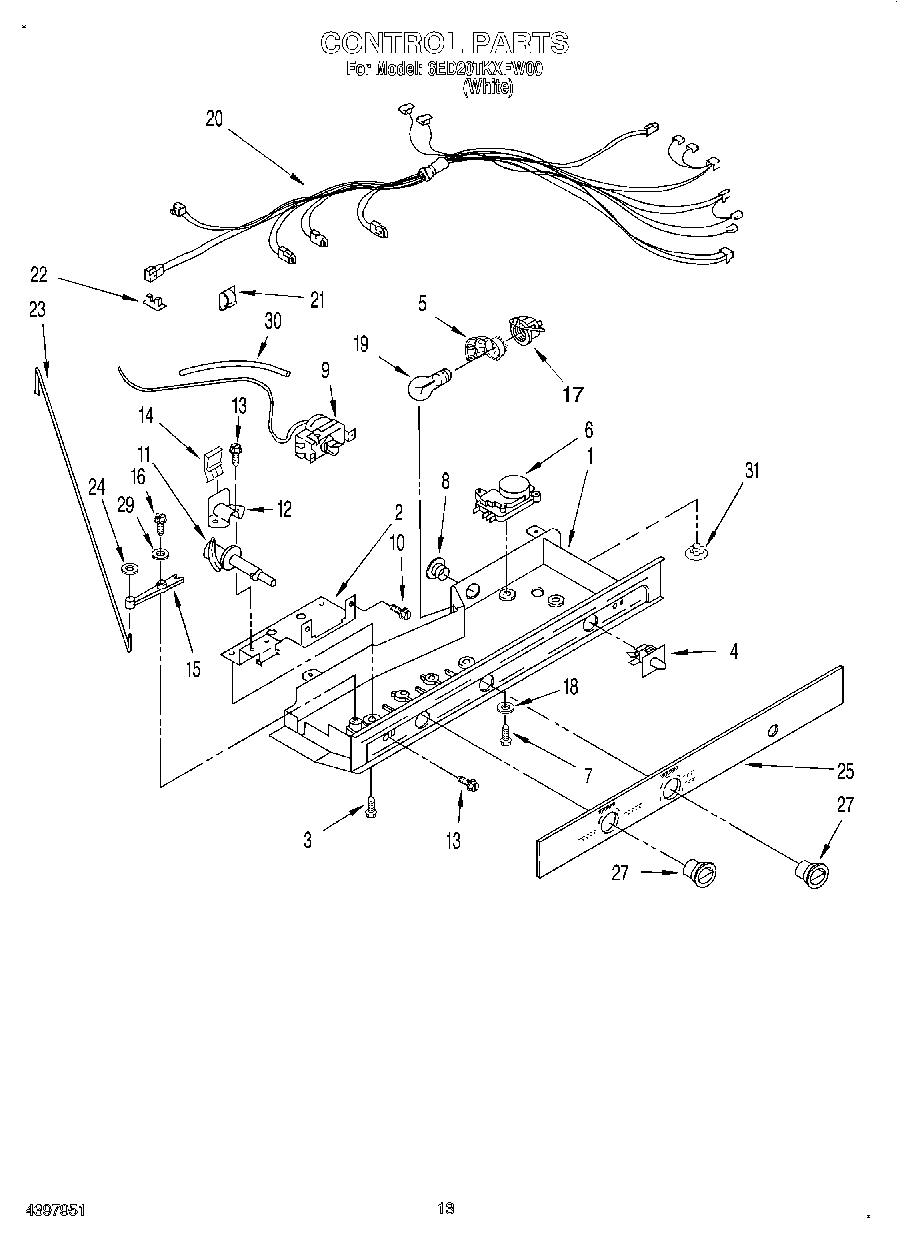

6ED20TKXFW00 08 – CONTROL, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2195039
WPW10190943 Whirlpool Refrigerator Icemaker
Torx Key
WPL LIT2195167
WPL LIT2186933
1Control Box
2Mounting Bracket
3Screw (2)
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2175210 Whirlpool Refrigerator Shroud
6Defrost Timer (10 Hr.)
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11WP2182195 Whirlpool Refrigerator Cam
121110560 Whirlpool Refrigerator Bearing
13WP489478 Whirlpool Refrigerator Screw
14WP2196062 Whirlpool Refrigerator Clip
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18Washer
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
27Knob, Air Control
29489203 Whirlpool Refrigerator Washer
30WP2196003 Whirlpool Refrigerator Bar Riser
31Golden Harvest
31Golden Harvest (Uncut)
31Enamel, Black (1 Qt. Uncut)
3172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
31350930 Whirlpool White Spray Paint
31Hole Plug
31Almond (Uncut)
31WP72107 Whirlpool Touchup
31799344 Whirlpool Refrigerator Paint
3172017 Whirlpool Appliance Touch-Up Paint White
31212643 Whirlpool Refrigerator Permagum Sealer
31350942 Whirlpool Spray Paint
31WPL 799833
31WPL 876029
31CEMENT, ALUMILASTIC (1 1/4 OZ.)
31285006 Whirlpool Spray
3172032 Whirlpool Touch Up Paint Black
31TAPE, VINYL (3/4 X 108“)
31WP542638 Whirlpool Refrigerator Grease
31WP505587 Whirlpool Refrigerator Sealer
31WP503695 Whirlpool Refrigerator Sealer
31876370 Whirlpool Refrigerator Insulation
31833938 Whirlpool Refrigerator Terminal
31606755 Whirlpool Refrigerator Bag
31511873 Whirlpool Refrigerator Paint
31350956 Whirlpool Spray Assembly
