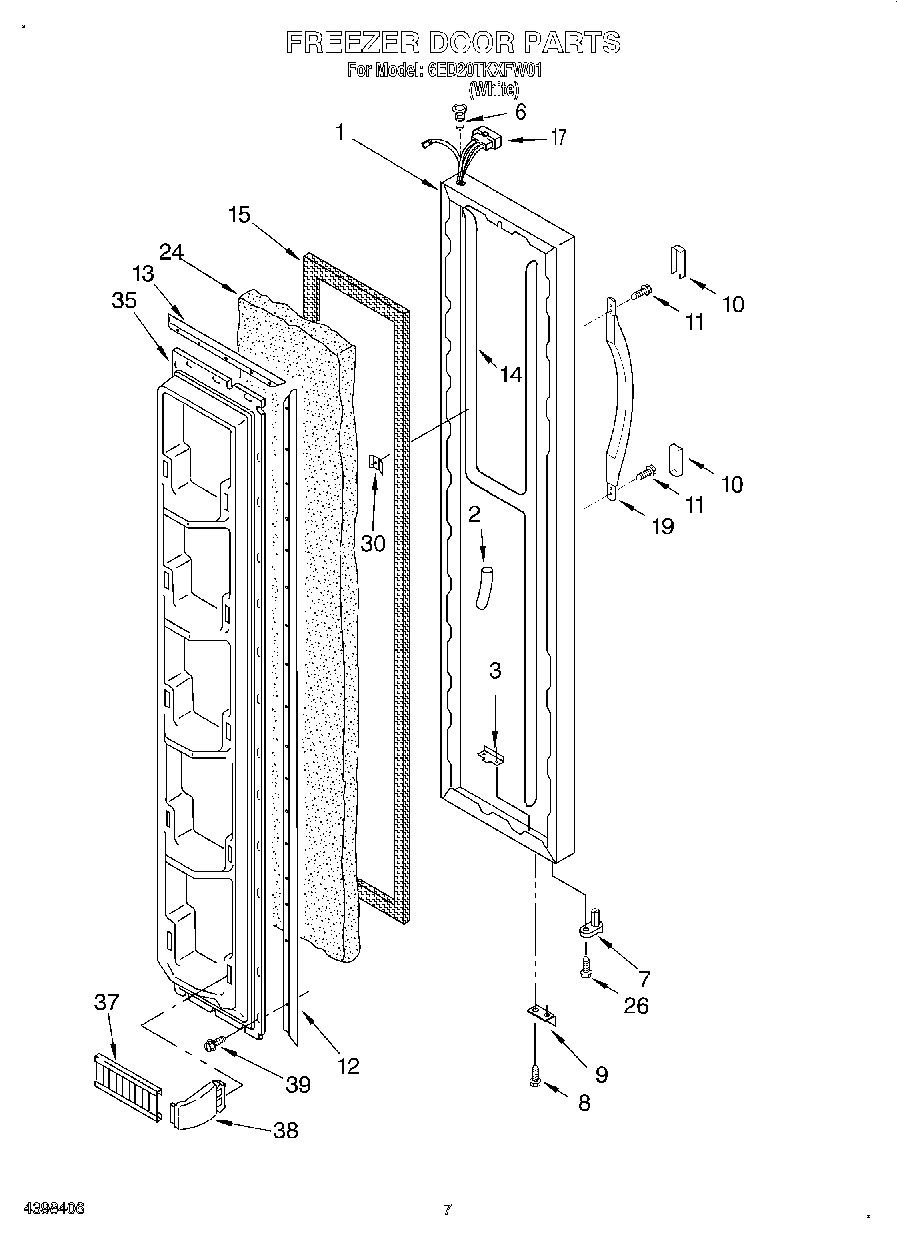

6ED20TKXFW01 05 – FREEZER DOOR

6ED20TKXFW01 05 – FREEZER DOOR

Written by

in

6ED20TKXFW01 05 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (White)
2Tube, Door Wiring
3SCREW PLATE
6WP2182181 Whirlpool Refrigerator Thimble
7WP2182179 Whirlpool Cam Closer
8WP999367 Whirlpool Refrigerator Screw
9Bracket, Door Stop (Chrome)
10WP2193353W Whirlpool Refrigerator Trim Handle
11WP489491 Whirlpool Refrigerator Screw
12Retainer, Gasket
13Retainer, Gasket
14Heater, Door
152188405A Whirlpool Refrigerator Door Gasket
17Housing Plug
19Handle, Center (White)
24WPL 876029
26WP3400012 Whirlpool Refrigerator Screw
30Screw Anchor (2)
35Interior, Door Panel
37Trim, Door Shelf
38WP2196100 Whirlpool Shelf Retainer Bar Support
39WP489069 Whirlpool Compactor Screw
