6ED20TKXGW00 02 – REFRIGERATOR LINER

6ED20TKXGW00 02 – REFRIGERATOR LINER

Written by

in

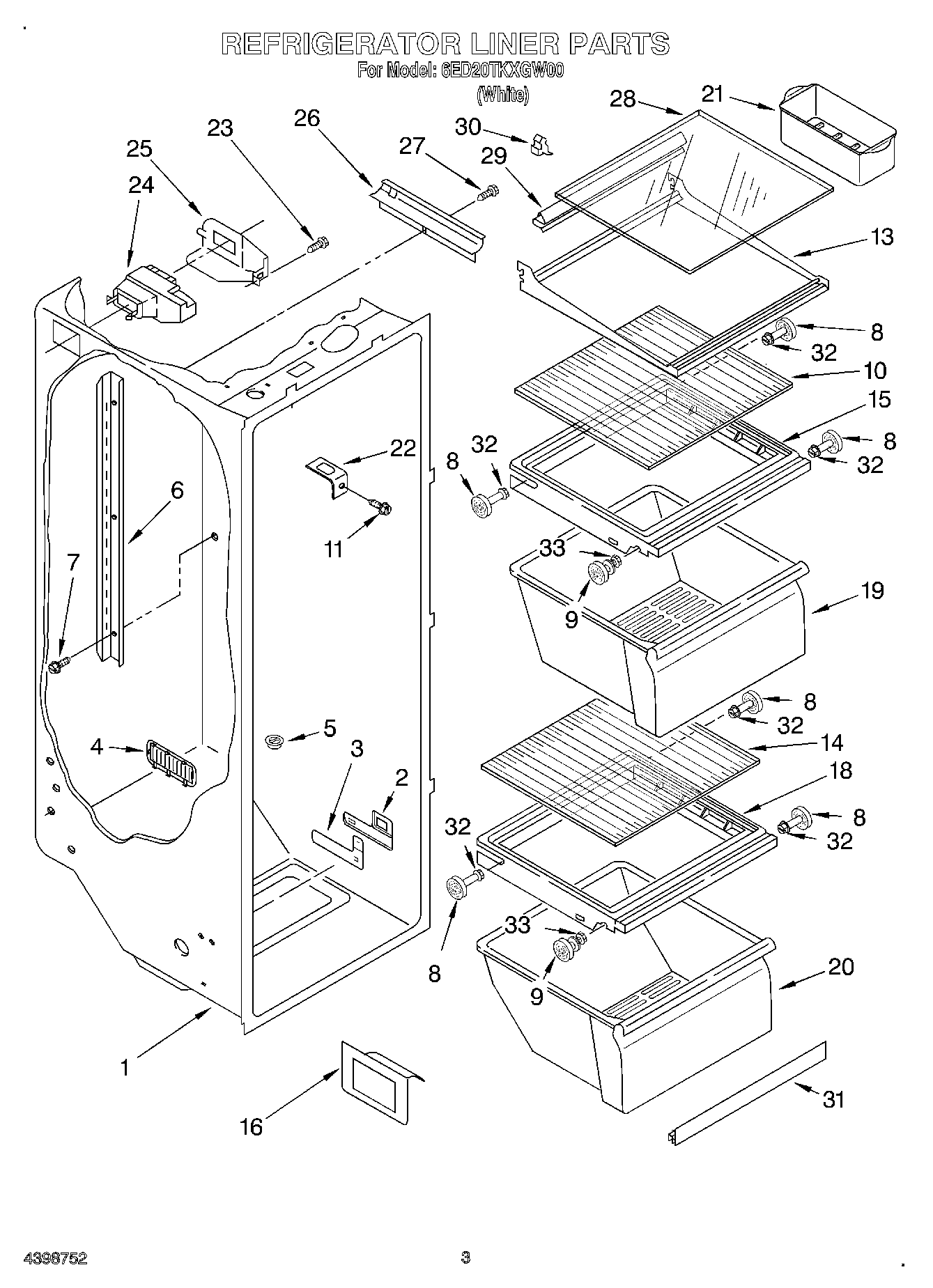

6ED20TKXGW00 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
52171846 Whirlpool Refrigerator Release Valve
6Ladder, Shelf
7WP488729 Whirlpool Refrigerator Door Screw
8WP2196483 Whirlpool Refrigerator Shelf Stud
9W11223328 Whirlpool Refrigerator Shelf Stud
10W10864399 Whirlpool Glass Shelf
11WP488488 Whirlpool Refrigerator Screw
13Shelf, Cantilever
162179350 Whirlpool Refrigerator Deflector
18W10508993 Whirlpool Refrigerator Cover Pan
19WP2188661 Whirlpool Crisper Pan
20WP2188664 Whirlpool Dishwasher Meat Crisper Pan
21W10136387A Whirlpool Refrigerator Egg Container
22WP2256085 Whirlpool Refrigerator Retainer
23WP489478 Whirlpool Refrigerator Screw
24WPW10129864 Whirlpool Refrigerator Diffuser
25WP2212240 Whirlpool Refrigerator Cover
26Cover, Conduit
27W10759522 Whirlpool Screw
28Glass, Shelf
29Retainer
302215823 Whirlpool Refrigerator Clip
31Extension, Cover
32WP3400806 Whirlpool Screw
33WP3-24004-109 Whirlpool Refrigerator Screw
