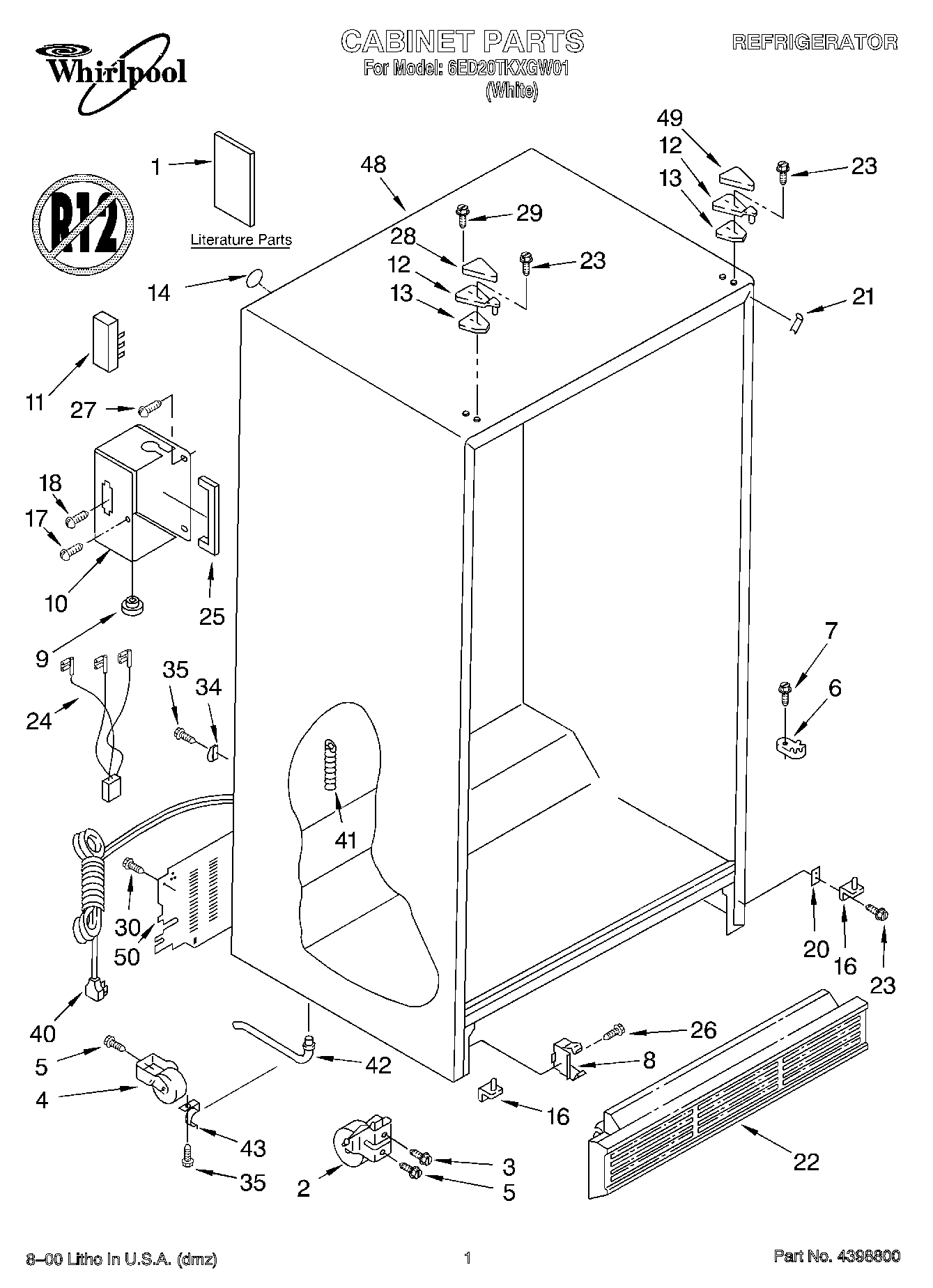

6ED20TKXGW01 01 – CABINET, LITERATURE

Products

Position	Product
1	Energy Label
1	LITERATURE PARTS (Service & Wiring Sheet)
1	LITERATURE PARTS (Use & Care Guide)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
9	Bushing
10	Enclosure, Terminal Block
11	Terminal Block
12	WP2196046 Whirlpool Refrigerator Door Hinge
13	Shim, Hinge Top
14	Seal, Hole
16	8201707 Whirlpool Door Hinge
17	WPW10272364 Whirlpool Refrigerator Screw
18	WP489399 Whirlpool Refrigerator Screw
20	WP2181911 Whirlpool Refrigerator Shim
21	Filler, Wrapper (White)
22	W10804014 Whirlpool Refrigerator Grille
23	WP489497 Whirlpool Screw
24	Wiring Assembly
25	Gasket
26	WP489478 Whirlpool Refrigerator Screw
27	WP489463 Whirlpool Refrigerator Screw
28	1119787 Whirlpool Refrigerator Hinge Cover
29	Screw
34	489348 Whirlpool Refrigerator Tube Clamp
35	WP489464 Whirlpool Refrigerator Screw
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
48	Cabinet (Not A Serviceable Part)
49	WP1129262 Whirlpool Refrigerator Cover
50	Cover, Unit
