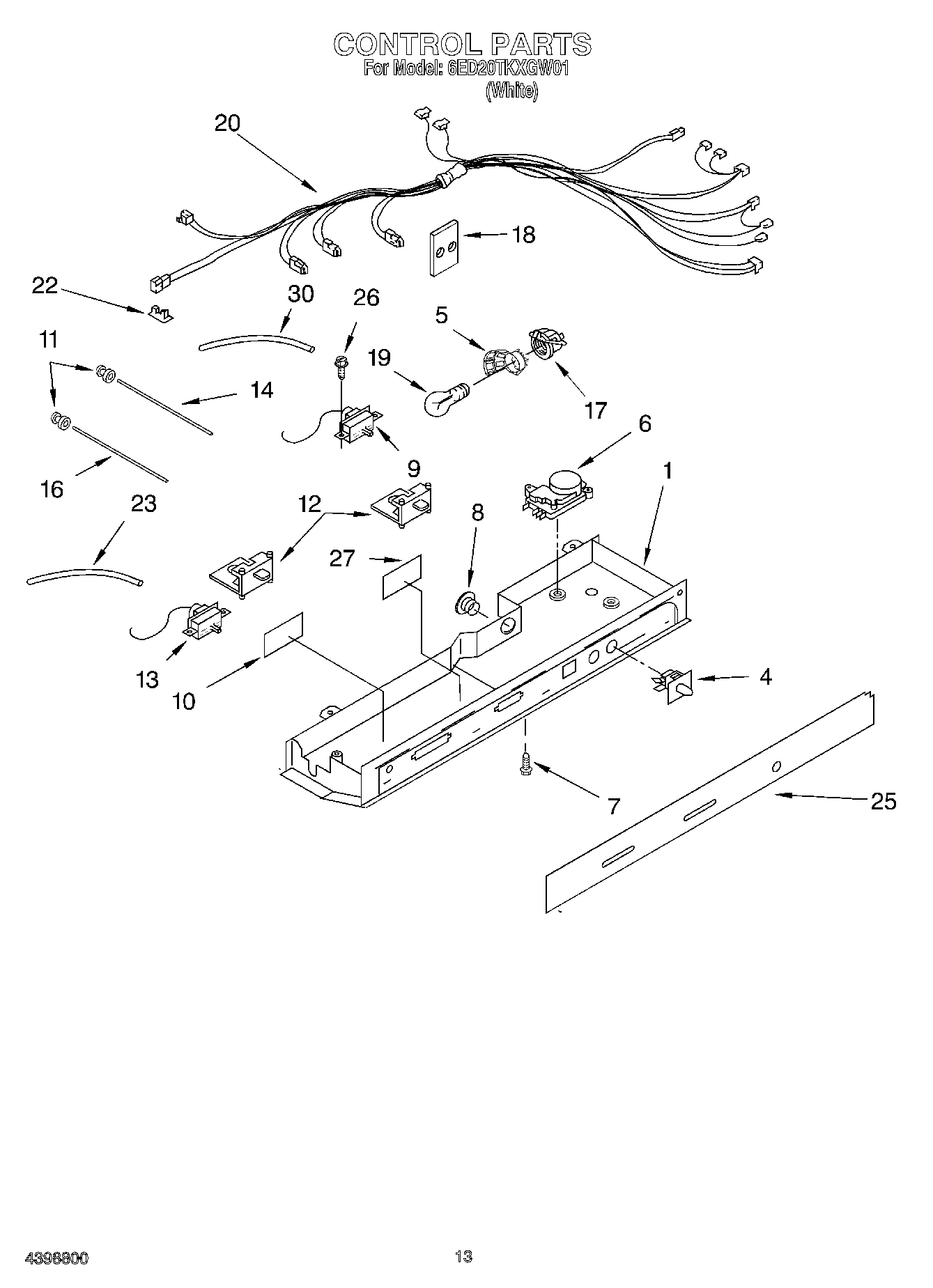

6ED20TKXGW01 08 – CONTROL, OPTIONAL

6ED20TKXGW01 08 – CONTROL, OPTIONAL

Written by

in

6ED20TKXGW01 08 – CONTROL, OPTIONAL

Products

Position	Product
1	2200135 Whirlpool Refrigerator Control Box
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2175210 Whirlpool Refrigerator Shroud
6	WP2188379 Whirlpool Refrigerator Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2161460 Whirlpool Refrigerator Thermostat
10	2172940 Whirlpool Window
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
13	Thermostat (FC)
14	Fiber Optic
16	Light Bar (FC)
17	4387478 Whirlpool Refrigerator Light Socket
18	2172931 Whirlpool Refrigerator Shield
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
22	CLIP, WIRING
25	Escutcheon, Control Box
26	2006254 Whirlpool Refrigerator Screw
27	Window
30	350930 Whirlpool White Spray Paint
30	WPW10190943 Whirlpool Refrigerator Icemaker
30	WP505587 Whirlpool Refrigerator Sealer
30	72032 Whirlpool Touch Up Paint Black
30	285006 Whirlpool Spray
30	WP2196003 Whirlpool Refrigerator Bar Riser
30	WPL 876029
30	350942 Whirlpool Spray Paint
30	212643 Whirlpool Refrigerator Permagum Sealer
30	Golden Harvest (Uncut)
30	Golden Harvest
30	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30	Almond (Uncut)
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	511873 Whirlpool Refrigerator Paint
30	606755 Whirlpool Refrigerator Bag
30	WPL 799833
30	Enamel, Black (1 Qt. Uncut)
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108“)
30	Torx Key
30	WP542638 Whirlpool Refrigerator Grease
30	WP503695 Whirlpool Refrigerator Sealer
30	876370 Whirlpool Refrigerator Insulation
30	833938 Whirlpool Refrigerator Terminal
30	350956 Whirlpool Spray Assembly
