6ED20TKXGW02 06 – REFRIGERATOR DOOR

6ED20TKXGW02 06 – REFRIGERATOR DOOR

Written by

in

6ED20TKXGW02 06 – REFRIGERATOR DOOR

Products

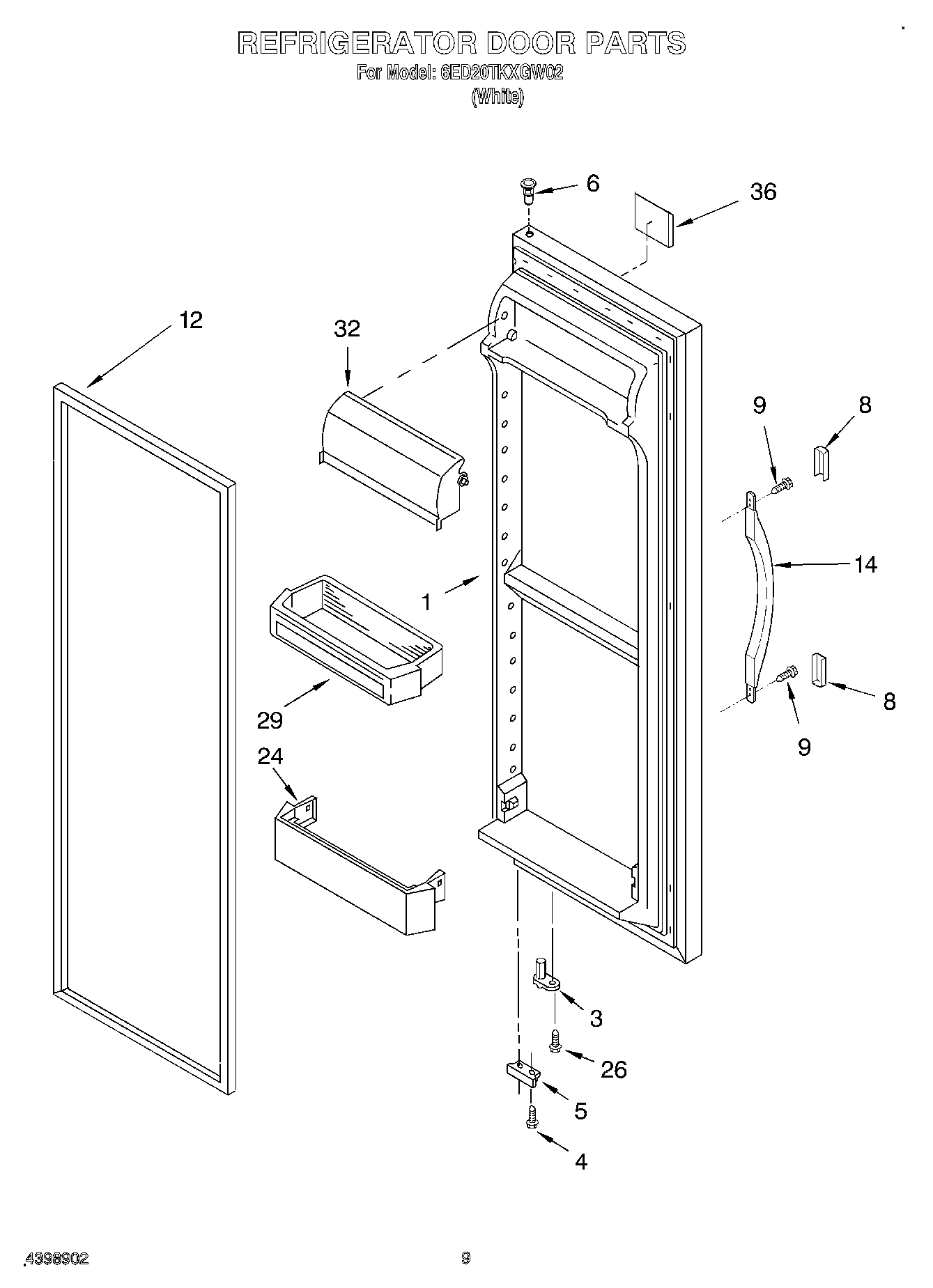

PositionProduct
1Refrigerator Door (Includes Item 12)
3WP2182179 Whirlpool Cam Closer
4WP489483 Whirlpool Screw
5Bracket, Door Stop (Chrome)
6WP2182181 Whirlpool Refrigerator Thimble
8WP2193353W Whirlpool Refrigerator Trim Handle
9WP489491 Whirlpool Refrigerator Screw
122159073 Whirlpool Refrigerator Door Gasket
14Handle, Center (White)
24WP2177962K Whirlpool Refrigerator Door Trim
26WP3400012 Whirlpool Refrigerator Screw
29WP2187172 Whirlpool Refrigerator Door Shelf Bin
29WP2187197K Whirlpool Refrigerator Cantilever Bin
32WP2256101 Whirlpool Dairy Door
36Nameplate (White)
