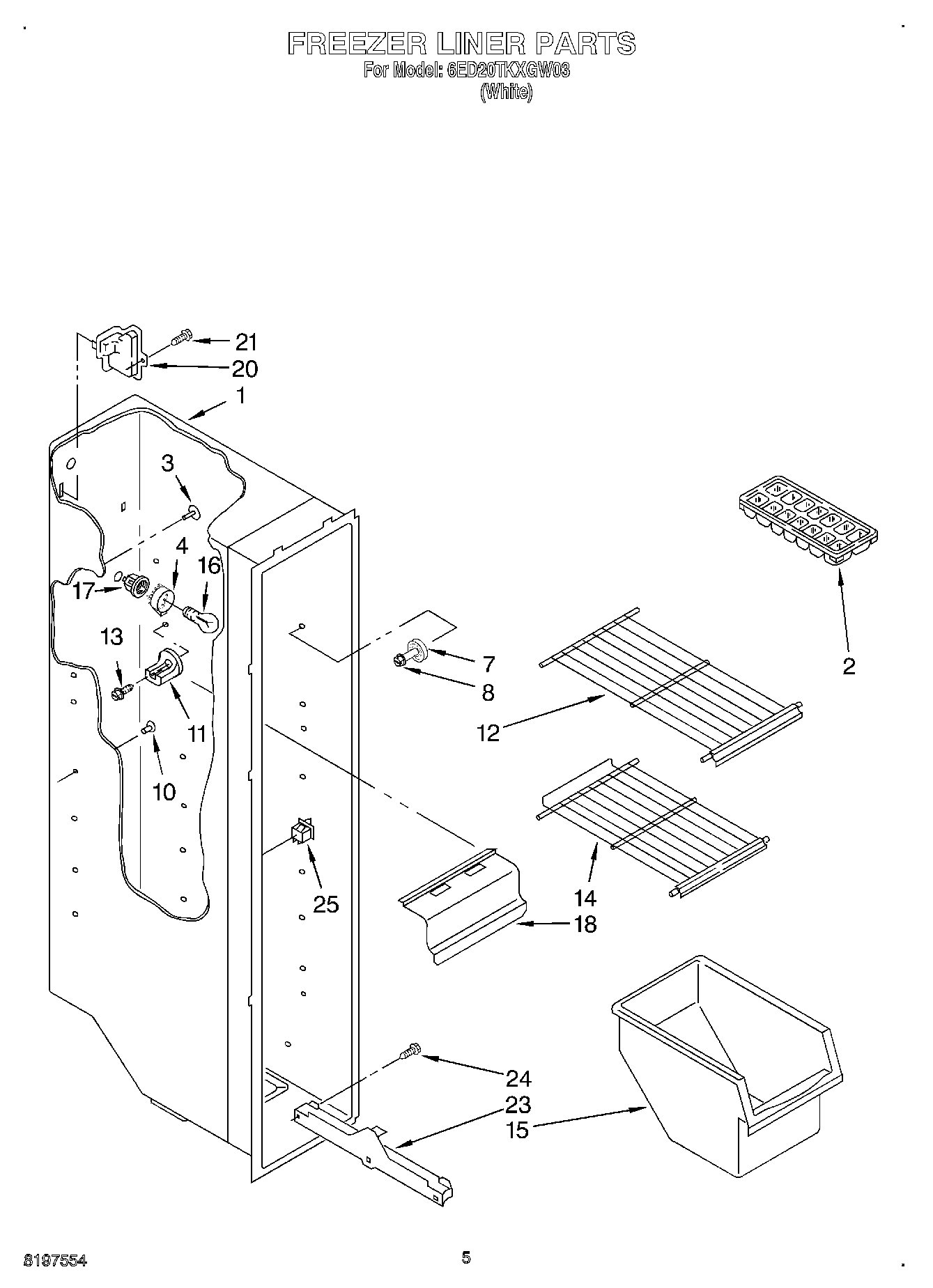

6ED20TKXGW03 03 – FREEZER LINER

6ED20TKXGW03 03 – FREEZER LINER

Written by

in

6ED20TKXGW03 03 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP841180A Whirlpool Microwave Glass Turntable Tray
3WP941839 Whirlpool Refrigerator Button Plug
4Shroud, Light
7WP2196483 Whirlpool Refrigerator Shelf Stud
8WP3400806 Whirlpool Screw
10Grommet
11Stud, Rear
12Shelf
13W10142289 Whirlpool Air Conditioner Screw
14Shelf (2)
14Shelf (1)
15Bin, Freezer
16WP67002552 Whirlpool Refrigerator Light Bulb
17SOCKET
18WP2155595 Whirlpool Refrigerator Light Lens
20Cover, Wiring
21SCREW
23Slide, Basket (Left Side)
23W10845583 Whirlpool Refrigerator Track
24718257 Whirlpool Dishwasher Screw
25W11384469 Whirlpool Door Switch
