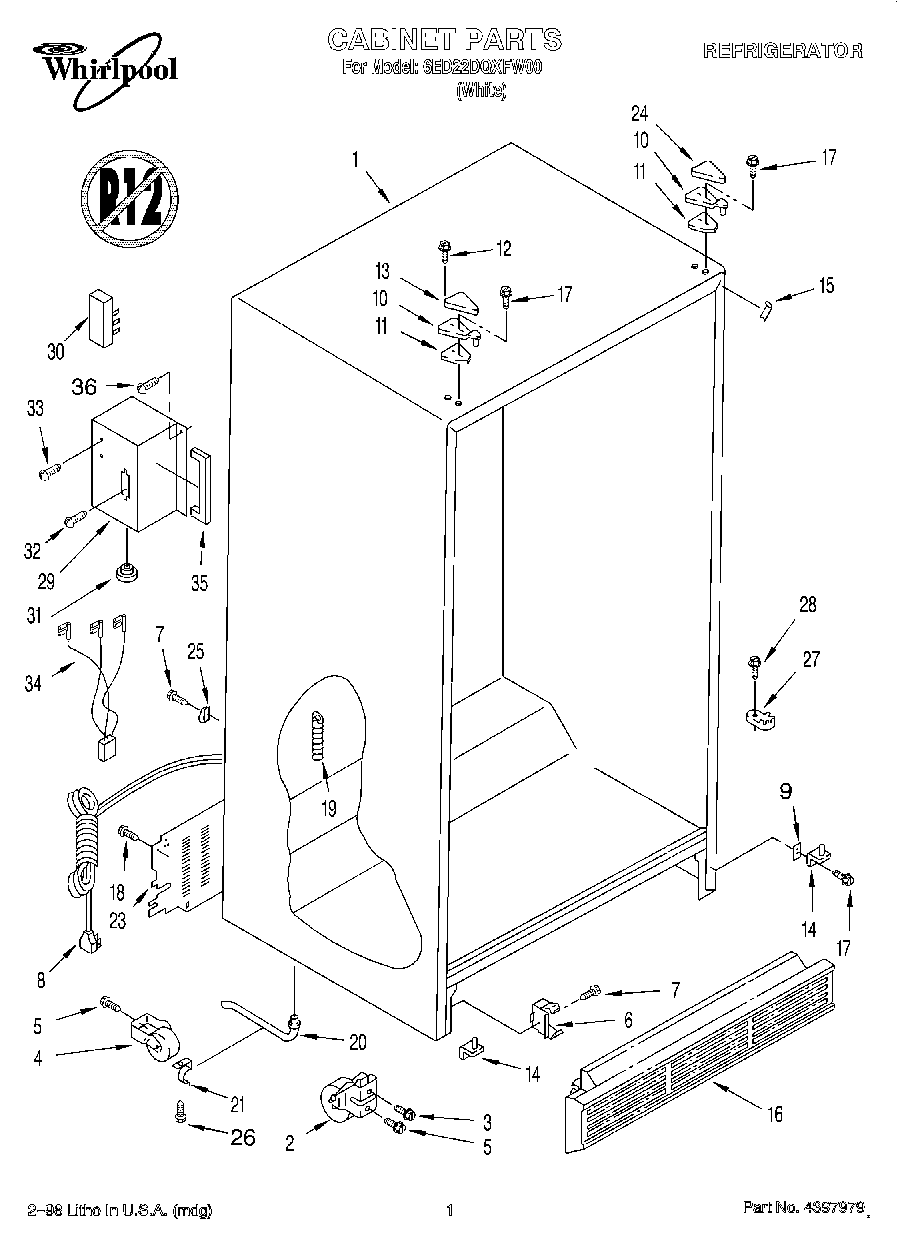

6ED22DQXFW00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	Service Cord
9	WP2181911 Whirlpool Refrigerator Shim
10	WP2196046 Whirlpool Refrigerator Door Hinge
11	Shim, Hinge Top
12	Screw
13	WP1129262 Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	Filler, Wrapper (White)
16	Grille (White)
17	WP489497 Whirlpool Screw
18	WP489464 Whirlpool Refrigerator Screw
19	W11566763 Whirlpool Fitting
20	WP1108438 Whirlpool Refrigerator Extension
21	WP1108439 Whirlpool Refrigerator Clip
23	Cover, Unit
24	1119787 Whirlpool Refrigerator Hinge Cover
25	489348 Whirlpool Refrigerator Tube Clamp
27	WPW10329686 Whirlpool Door Cam Black
28	WP489483 Whirlpool Screw
29	Enclosure, Term.
30	Terminal Block
31	Bushing
32	WPW10272364 Whirlpool Refrigerator Screw
33	WP489399 Whirlpool Refrigerator Screw
34	Wiring Assembly, Terminal Block
35	Gasket
36	WP489463 Whirlpool Refrigerator Screw
