6ED22DQXFW00 12 – CONTROL, LIT/OPTIONAL

6ED22DQXFW00 12 – CONTROL, LIT/OPTIONAL

Written by

in

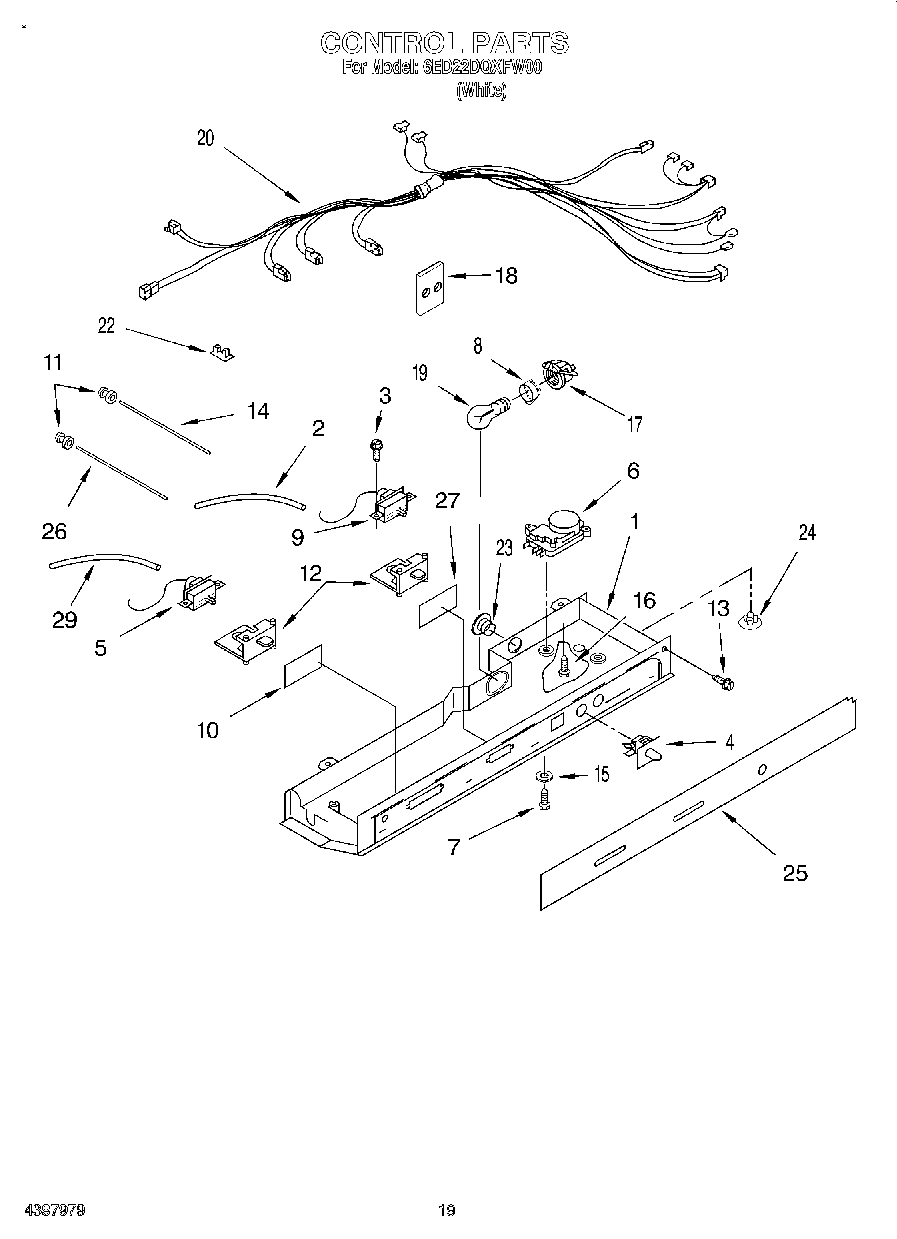

6ED22DQXFW00 12 – CONTROL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT628371
	LITERATURE PARTS (Service & Wiring Sheet)
	WPL LIT2195167
	LITERATURE PARTS (Energy Label)
	Torx Key
1	2200135 Whirlpool Refrigerator Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2182770 Whirlpool Refrigerator Thermostat
6	WP2166867 Whirlpool Refrigerator Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	WP2175210 Whirlpool Refrigerator Shroud
9	WP2161460 Whirlpool Refrigerator Thermostat
10	2172940 Whirlpool Window
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	Washer
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	2172931 Whirlpool Refrigerator Shield
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
22	CLIP, WIRING
23	940014 Whirlpool Refrigerator Primary Button Plug
24	Hole Plug
25	Escutcheon, Control Box
26	Light Bar (FC)
27	Window
29	WPW10312301 Whirlpool Refrigerator Ice Container
29	350930 Whirlpool White Spray Paint
29	CEMENT, ALUMILASTIC (1 1/4 OZ.)
29	72032 Whirlpool Touch Up Paint Black
29	606755 Whirlpool Refrigerator Bag
29	511873 Whirlpool Refrigerator Paint
29	350942 Whirlpool Spray Paint
29	212643 Whirlpool Refrigerator Permagum Sealer
29	Almond (Uncut)
29	WP72107 Whirlpool Touchup
29	799344 Whirlpool Refrigerator Paint
29	72017 Whirlpool Appliance Touch-Up Paint White
29	833938 Whirlpool Refrigerator Terminal
29	876370 Whirlpool Refrigerator Insulation
29	285006 Whirlpool Spray
29	WPL 876029
29	WPL 799833
29	Enamel, Black (1 Qt. Uncut)
29	TAPE, VINYL (3/4 X 108“)
29	WP542638 Whirlpool Refrigerator Grease
29	WP505587 Whirlpool Refrigerator Sealer
29	WP503695 Whirlpool Refrigerator Sealer
29	350956 Whirlpool Spray Assembly
