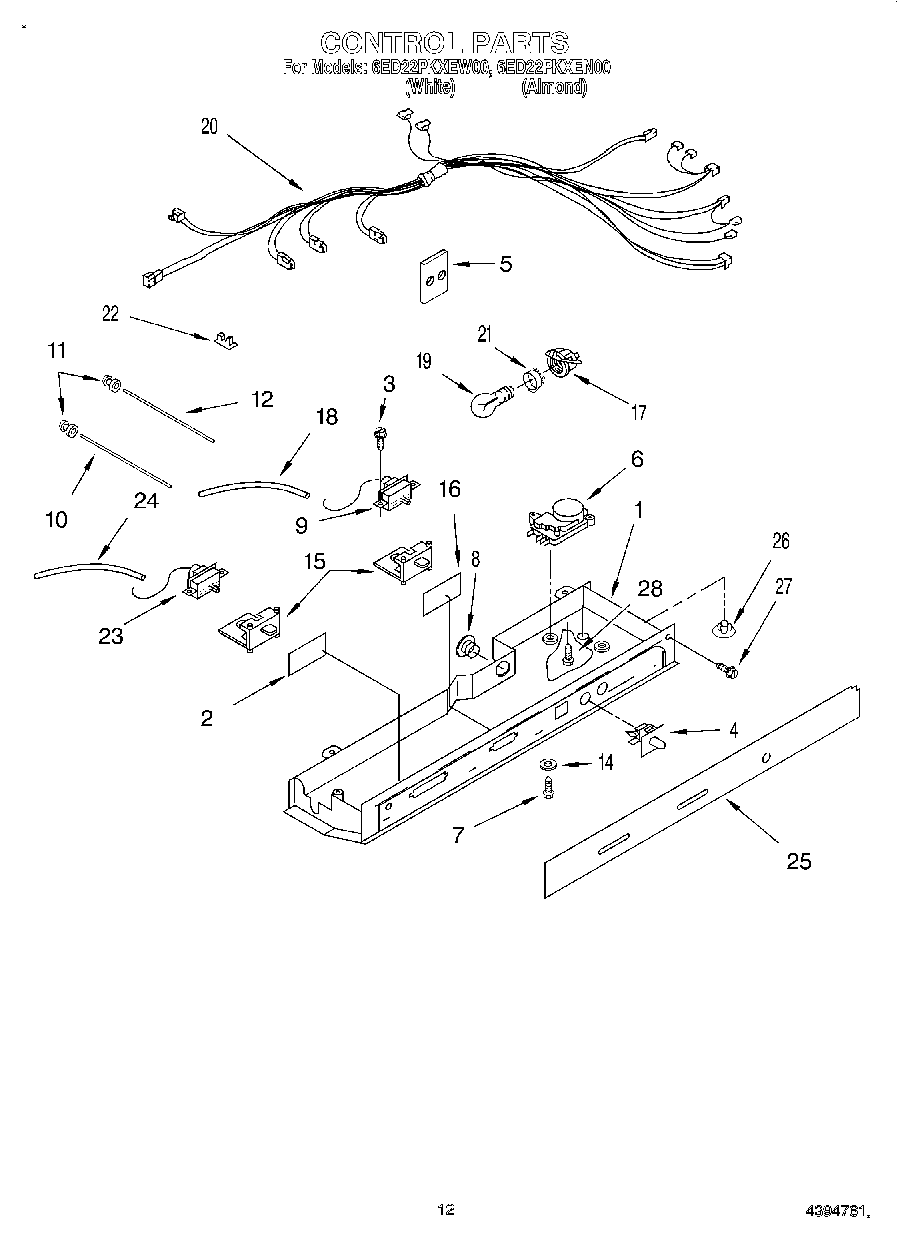

6ED22PKXEW00 08 – CONTROL

Products

Position	Product
1	2200135 Whirlpool Refrigerator Control Box
2	2172940 Whirlpool Window
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	2172931 Whirlpool Refrigerator Shield
6	WP2166867 Whirlpool Refrigerator Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2161460 Whirlpool Refrigerator Thermostat
10	Light Bar (FC)
11	Grommet, Light Fiber
12	Fiber Optic
14	Washer
15	2161466 Whirlpool Refrigerator Slide
16	Window
17	4387478 Whirlpool Refrigerator Light Socket
18	WP2196003 Whirlpool Refrigerator Bar Riser
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	WP2175210 Whirlpool Refrigerator Shroud
22	CLIP, WIRING
23	WP2182770 Whirlpool Refrigerator Thermostat
25	Escutcheon, Control Box
26	Hole Plug
28	WP488488 Whirlpool Refrigerator Screw
