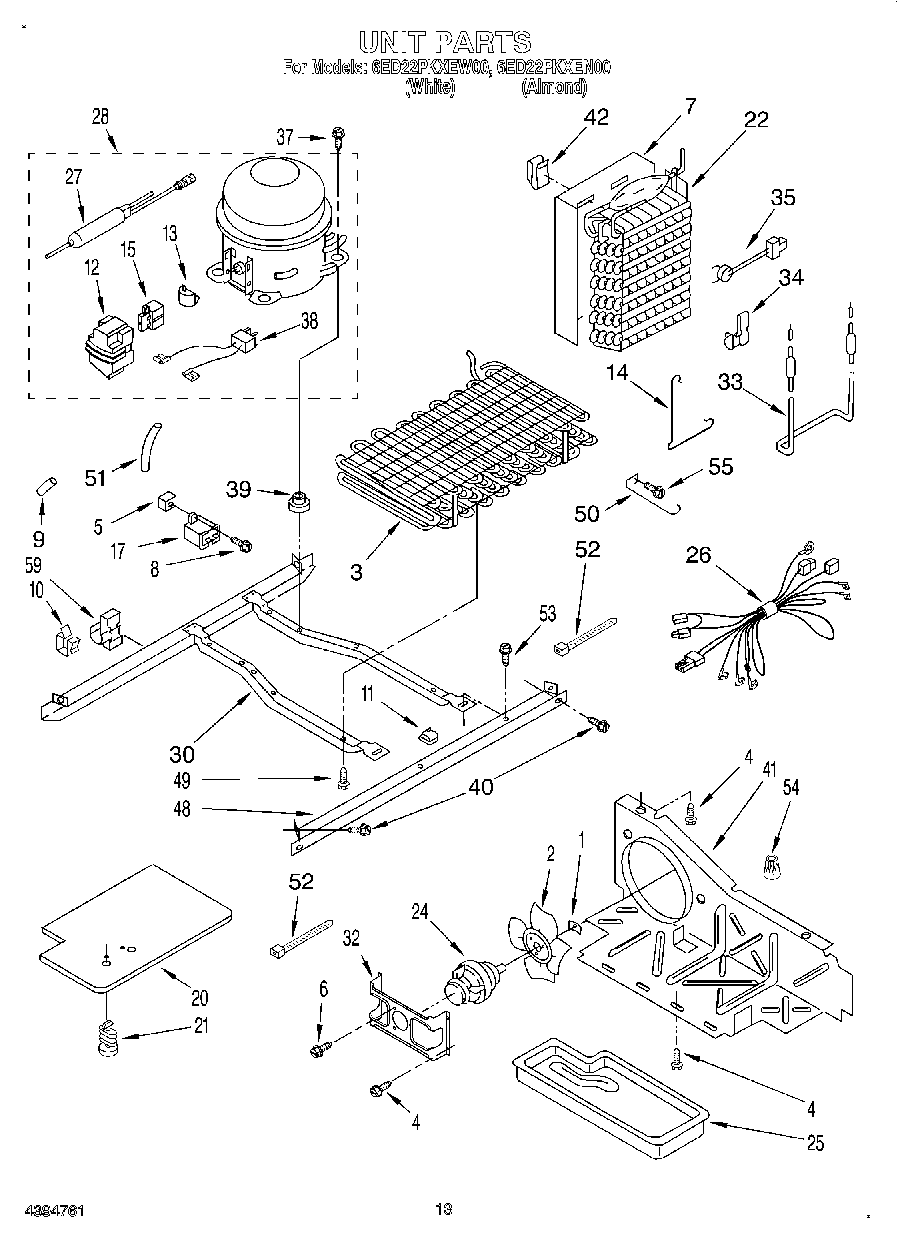

6ED22PKXEW00 09 – UNIT, LIT/OPTIONAL

6ED22PKXEW00 09 – UNIT, LIT/OPTIONAL

Written by

in

6ED22PKXEW00 09 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2198373
	WPL LIT2197892
	WPL LIT2182955
	WPW10190943 Whirlpool Refrigerator Icemaker
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Screw Grommet
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	W11693756 Whirlpool Screw Assembly
9	WP2158826 Whirlpool Refrigerator Dampener
10	W10169512 Whirlpool Clip
11	Clip, Tube (3)
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2169412 Whirlpool Overload Relay
14	Clamp
15	WP2262184 Whirlpool Refrigerator Start Relay
17	WP2201147 Whirlpool Refrigerator Capacitor
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	8201703 Whirlpool Refrigerator Condenser Motor
25	Tray, Evaporator
26	Harness, Intermediate
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10183407 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2313330 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WP489478 Whirlpool Refrigerator Screw
59	350930 Whirlpool White Spray Paint
59	Clip, Wire
59	TAPE, VINYL (3/4 X 108“)
59	WP503695 Whirlpool Refrigerator Sealer
59	876370 Whirlpool Refrigerator Insulation
59	833938 Whirlpool Refrigerator Terminal
59	606755 Whirlpool Refrigerator Bag
59	511873 Whirlpool Refrigerator Paint
59	350942 Whirlpool Spray Paint
59	212643 Whirlpool Refrigerator Permagum Sealer
59	VALVE, ACCESS (5/8“)
59	Almond (Uncut)
59	WP72107 Whirlpool Touchup
59	799344 Whirlpool Refrigerator Paint
59	72017 Whirlpool Appliance Touch-Up Paint White
59	876764 Whirlpool Refrigerator Primary Valve
59	978026 Whirlpool Refrigerator Primary Valve
59	72032 Whirlpool Touch Up Paint Black
59	285006 Whirlpool Spray
59	WPL 876029
59	WPL 799833
59	Enamel, Black (1 Qt. Uncut)
59	CEMENT, ALUMILASTIC (1 1/4 OZ.)
59	VALVE, ACCESS (1/2“)
59	WP978025 Whirlpool Refrigerator Valve
59	978030 Whirlpool Refrigerator Valve
59	WP542638 Whirlpool Refrigerator Grease
59	978027 Whirlpool Refrigerator Primary Valve
59	WP505587 Whirlpool Refrigerator Sealer
59	350956 Whirlpool Spray Assembly
