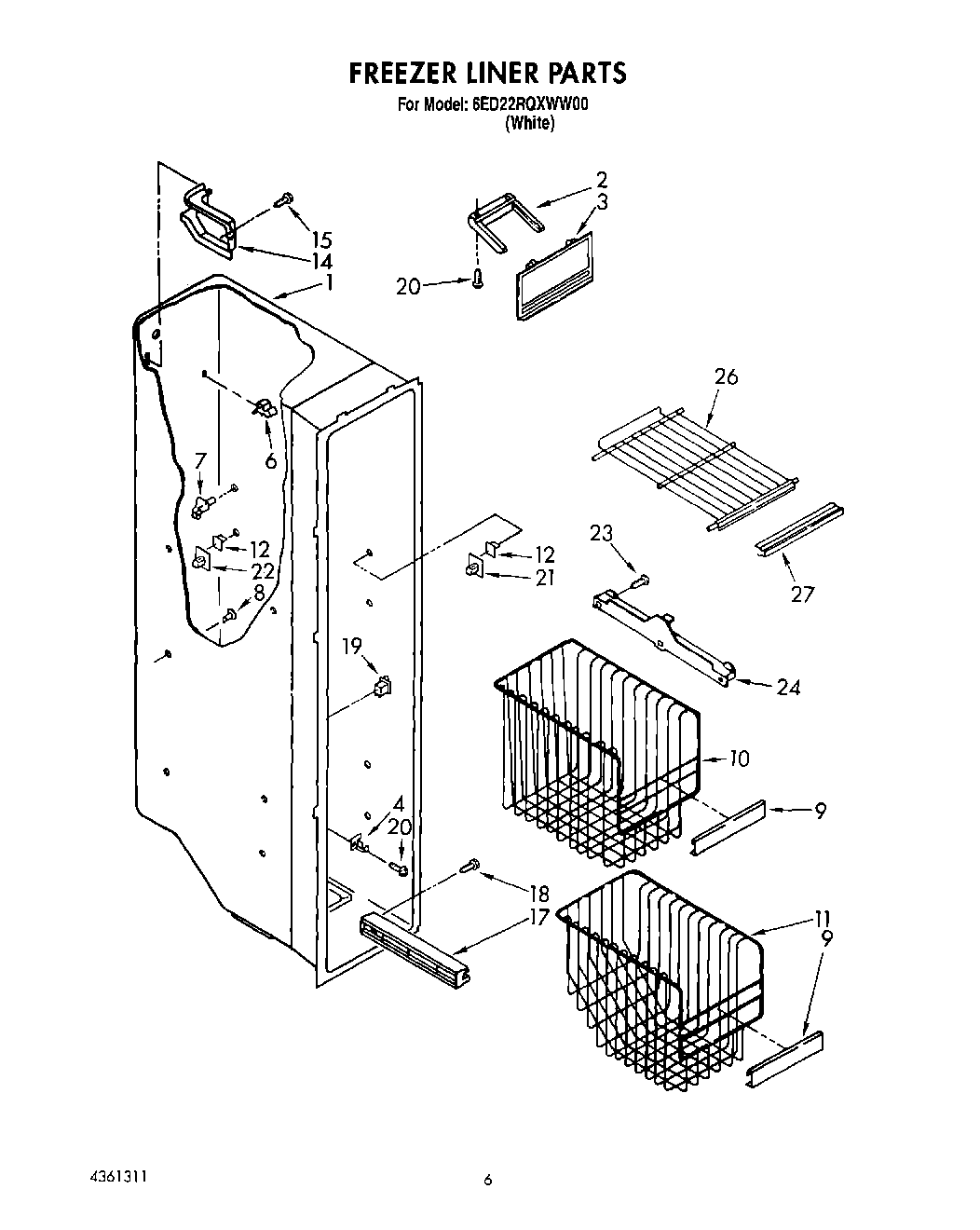

6ED22RQXWW00 05 – FREEZER LINERadmin2025-04-26T12:20:05+00:006ED22RQXWW00 05 – FREEZER LINER
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Slide, Ice Door |
| 3 | Door, Ice Compartment |
| 4 | Evaporator, Support |
| 6 | 2215823 Whirlpool Refrigerator Clip |
| 7 | 4388405 Whirlpool Refrigerator Shelf Stud |
| 8 | Grommet (8) |
| 9 | Trim, Basket |
| 10 | Basket, Tall |
| 11 | Basket, Slope |
| 12 | Stud, Support |
| 14 | Wiring Cover |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Shelf Track (Left Side (4)) |
| 17 | Shelf Track (Right Side (4)) |
| 18 | W11693756 Whirlpool Screw Assembly |
| 19 | W11457217 Whirlpool Refrigerator Rocker Switch Combination |
| 20 | WP489478 Whirlpool Refrigerator Screw |
| 21 | Stud, Front R.S. |
| 22 | Stud, Rear R.S. |
| 23 | 718257 Whirlpool Dishwasher Screw |
| 24 | W10845583 Whirlpool Refrigerator Track |
| 24 | W10845585 Whirlpool Refrigerator Track |
| 26 | Shelf (Small) |
| 27 | Trim, Shelf |
