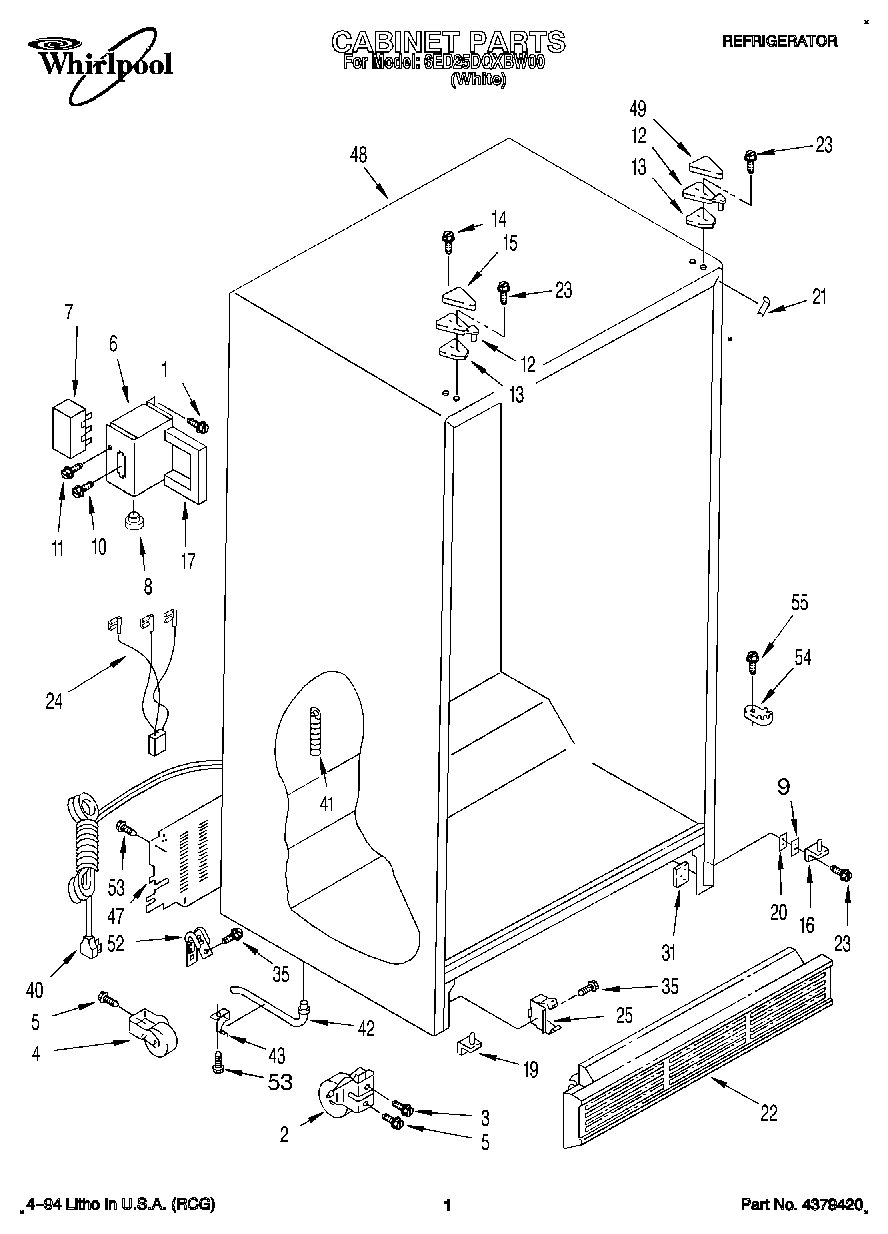

6ED25DQXBB00 01 – CABINETadmin2025-04-26T12:20:17+00:006ED25DQXBB00 01 – CABINET ProductsPositionProduct1WP250830 Whirlpool Refrigerator Screw2Front Roller (2)3Screw, 5/16-24 x 1-1/44WPW10250570 Whirlpool Refrigerator Cabinet Roller5Screw, 1/4-28 x 1/2 (2)6Enclosure, Term.7Terminal Block8Bushing9Shim, Bottom Hinge10WPW10272364 Whirlpool Refrigerator Screw11Screw12WP2196046 Whirlpool Refrigerator Door Hinge13Shim, Hinge Top14Screw15WP1129262 Whirlpool Refrigerator Cover16Hinge Bottom (R.H) (Chrome)17Gasket19Hinge Bottom (L.H) (Chrome)20Spacer, Hinge21Filler, Wrapper (White)22Grille (White)23WP999367 Whirlpool Refrigerator Screw24Wiring Assembly, Terminal Block25WP2155013 Whirlpool Refrigerator Clip31Tap Plate (2)35WP489478 Whirlpool Refrigerator Screw40Service Cord41W11566763 Whirlpool Fitting42WP1108438 Whirlpool Refrigerator Extension43WP1108439 Whirlpool Refrigerator Clip47Cover, Unit48Cabinet (Not A Serviceable Part)491119787 Whirlpool Refrigerator Hinge Cover52489348 Whirlpool Refrigerator Tube Clamp54WPW10329686 Whirlpool Door Cam Black55WP489483 Whirlpool Screw
