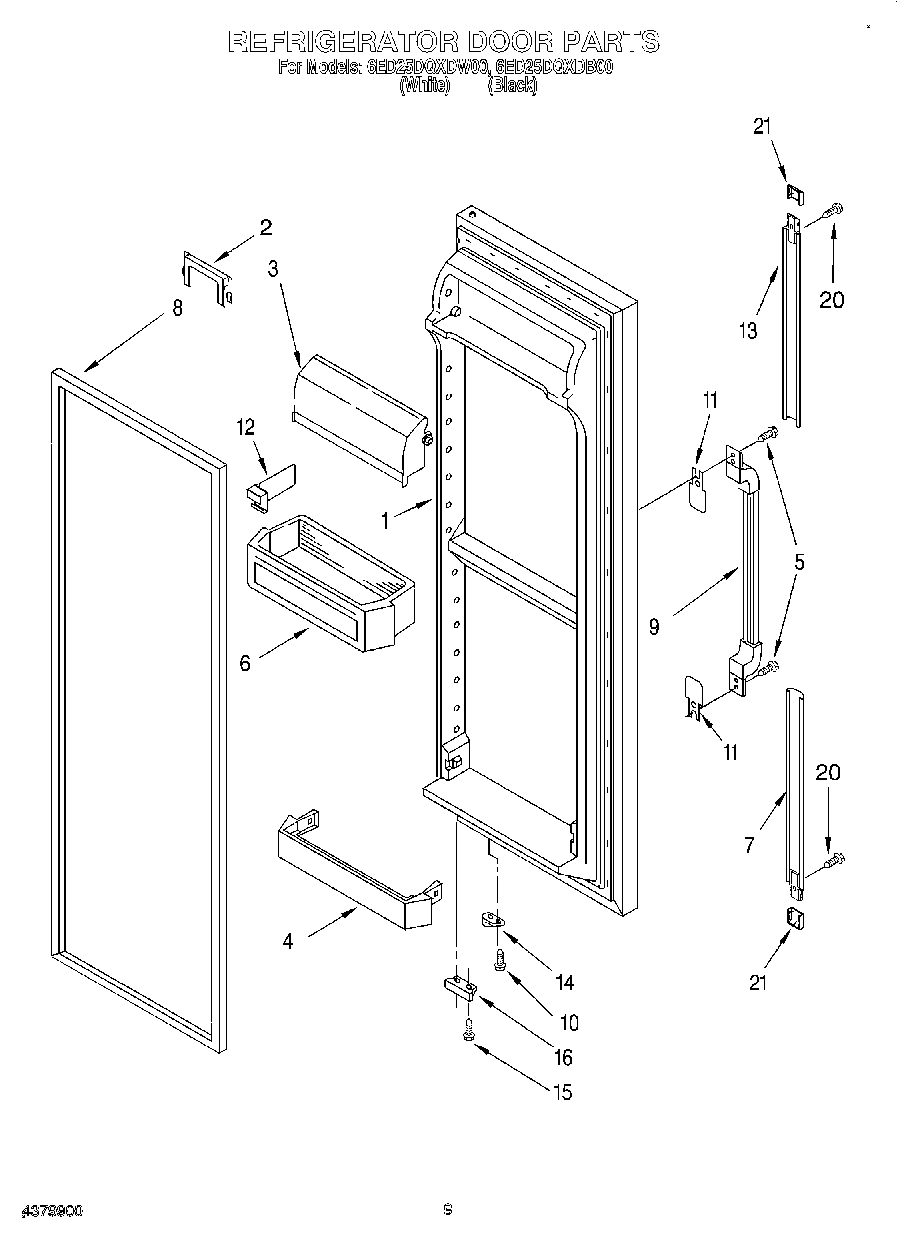

6ED25DQXDB00 06 – REFRIGERATOR DOORadmin2025-04-26T11:40:46+00:006ED25DQXDB00 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Item No.8) (Black) |
| 1 | Refrigerator Door (Includes Item 6) (White) |
| 2 | Retainer, Bottle |
| 3 | WP2256101 Whirlpool Dairy Door |
| 4 | WP2156022 Whirlpool Refrigerator Door Trim |
| 5 | WP489463 Whirlpool Refrigerator Screw |
| 6 | WPW10321304 Whirlpool Refrigerator Door Shelf Bin |
| 7 | Extension, Bottom (White) |
| 7 | Extension, Bottom (Black) |
| 8 | 2159083 Whirlpool Gasket Door |
| 8 | 2159075 Whirlpool Door Gasket Seal |
| 9 | Handle, Center (Black) |
| 9 | Handle, Center (White) |
| 10 | WP3400012 Whirlpool Refrigerator Screw |
| 11 | Shim |
| 12 | WPL 2171284 |
| 13 | Extension, Top (White) |
| 13 | Extension, Top (Black) |
| 14 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 15 | WP489483 Whirlpool Screw |
| 16 | Bracket, Door Stop |
| 16 | Bracket, Door Stop |
| 21 | Cover, Endcap (White) |
| 21 | Cover, Endcap (Black) |
