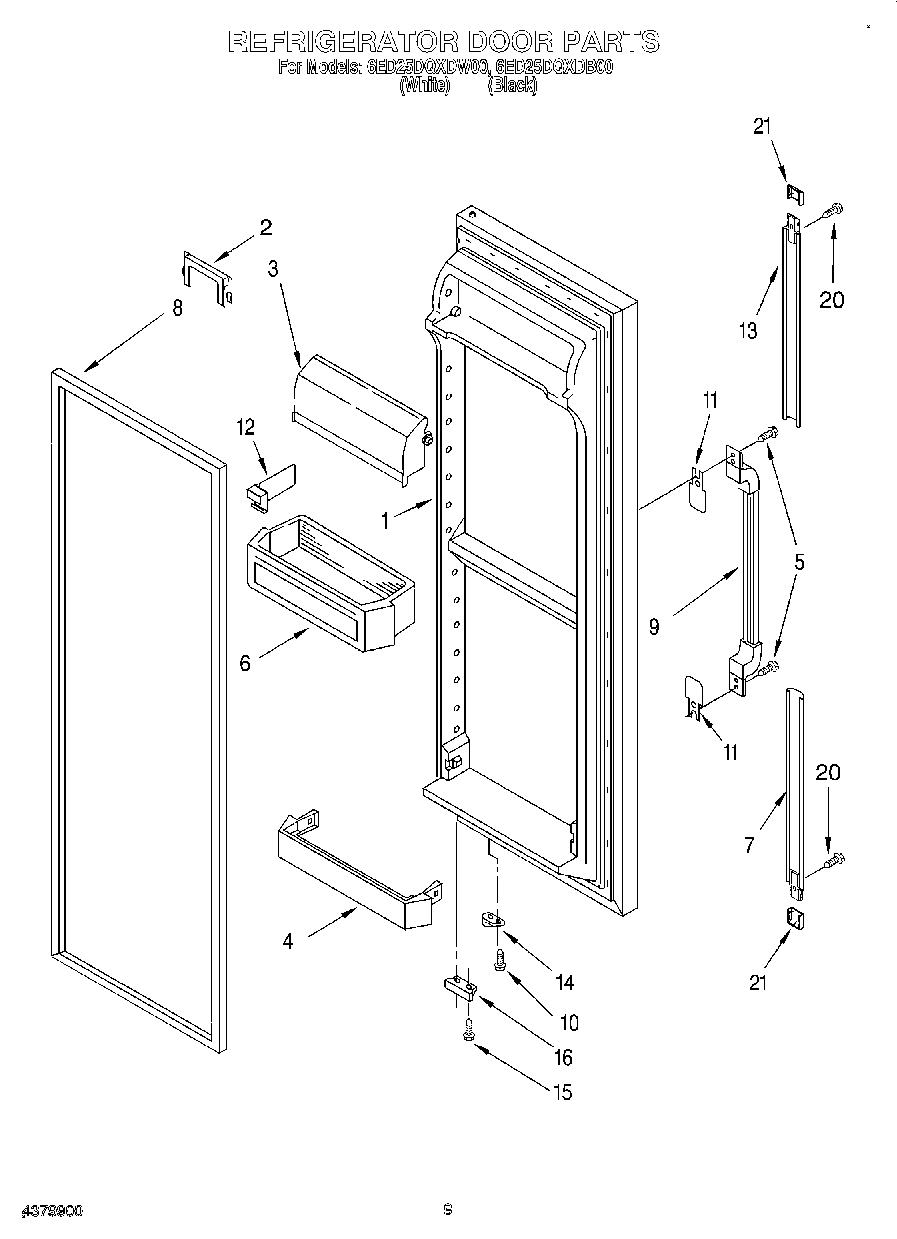

6ED25DQXDW00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (Black)
1	Refrigerator Door (Includes Item 6) (White)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489463 Whirlpool Refrigerator Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Extension, Bottom (White)
7	Extension, Bottom (Black)
8	2159083 Whirlpool Gasket Door
8	2159075 Whirlpool Door Gasket Seal
9	Handle, Center (Black)
9	Handle, Center (White)
10	WP3400012 Whirlpool Refrigerator Screw
11	Shim
12	WPL 2171284
13	Extension, Top (White)
13	Extension, Top (Black)
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop
16	Bracket, Door Stop
21	Cover, Endcap (White)
21	Cover, Endcap (Black)
