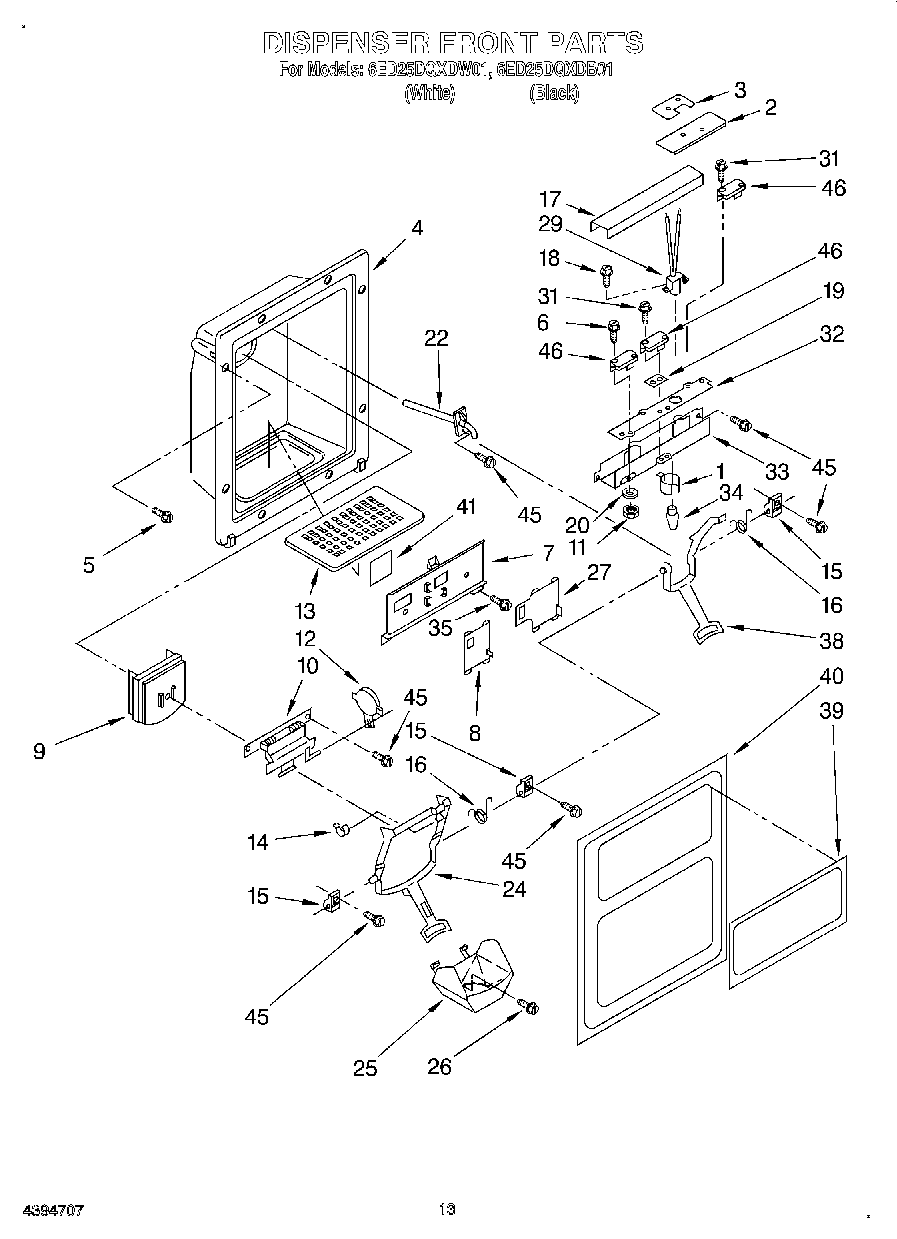

6ED25DQXDW01 08 – DISPENSER FRONT

Products

Position	Product
1	Shroud, Bracket
2	Guard, Switch
3	Guard, Switch
4	Housing, Dispenser (Not a Serviceable Part)
5	W11693756 Whirlpool Screw Assembly
6	Screw
7	Frame, Slides
7	Frame, Slides
8	Slide, Cube/Crush Switch
8	Slide, Cube/Crush Switch
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
11	Nut
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (Black)
13	Grille, Overflow (White)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Spacer, Switch (2)
20	Lock Washer
22	WP4388152 Whirlpool Refrigerator Fitting
24	Lever, Ice Dispenser (White)
24	Lever Assembly, Ice Dispenser (Black)
25	Guide, Ice
25	Guide, Ice
26	Screw
27	Slide, Light Switch
27	Slide, Light Switch
29	Lamp Holder
31	Screw, 4-40 x 1
32	Insulator, Control Bracket
33	Bracket, Control
34	Bulb, Light
35	WP489069 Whirlpool Compactor Screw
38	Lever Assembly, Water Dispenser (Black)
38	Lever, Water Dispenser (White)
39	Plaque, Front Cover
39	Plaque, Front Cover (White)
40	WPL 2179203
40	WPL 2174310
41	Heat Shield, Frame
45	WP3400906 Whirlpool Refrigerator Screw
46	WP2162361 Whirlpool Switch
