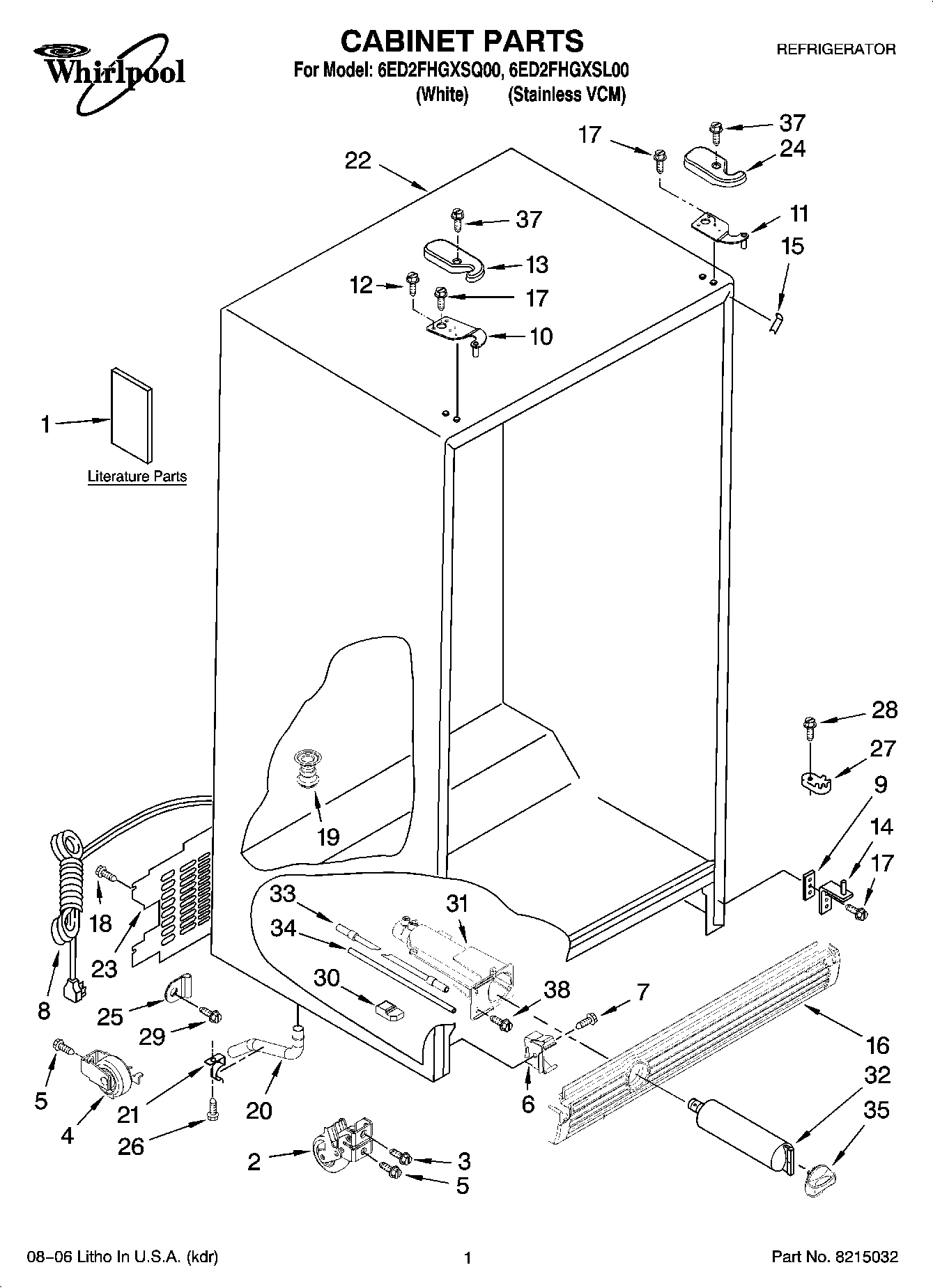

6ED2FHGXSL00 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	Service Cord
9	WP2209697 Whirlpool Refrigerator Shim
10	WP2203770 Whirlpool Refrigerator Door Hinge
11	WP2203771 Whirlpool Refrigerator Door Hinge
13	WP2203407W Whirlpool Refrigerator Cover
13	WP2203407B Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	Filler, Wrapper (White)
15	Filler, Wrapper (Black)
16	W10802713 Whirlpool Refrigerator Grille
17	WP489497 Whirlpool Screw
18	WP489464 Whirlpool Refrigerator Screw
19	W11566763 Whirlpool Fitting
20	WP1108438 Whirlpool Refrigerator Extension
21	WP1108439 Whirlpool Refrigerator Clip
22	Cabinet (Not A Service Part)
23	Cover, Unit
24	WP2203408W Whirlpool Refrigerator Cover
24	WP2203408B Whirlpool Refrigerator Cover
25	489348 Whirlpool Refrigerator Tube Clamp
27	WPW10329686 Whirlpool Door Cam Black
28	WP489483 Whirlpool Screw
29	W11693756 Whirlpool Screw Assembly
30	Block, Housing Support
31	WP2186443 Whirlpool Water Filter Housing
32	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
33	WP2304697 Whirlpool Refrigerator Water Tube
34	WPW10350006 Whirlpool Refrigerator Water Tube
35	WP2186494B Whirlpool Refrigerator Filter Cap
35	WP2186494W Whirlpool Water Filter Cap
37	WP8281227 Whirlpool Screw
38	WP489500 Whirlpool Refrigerator Screw
