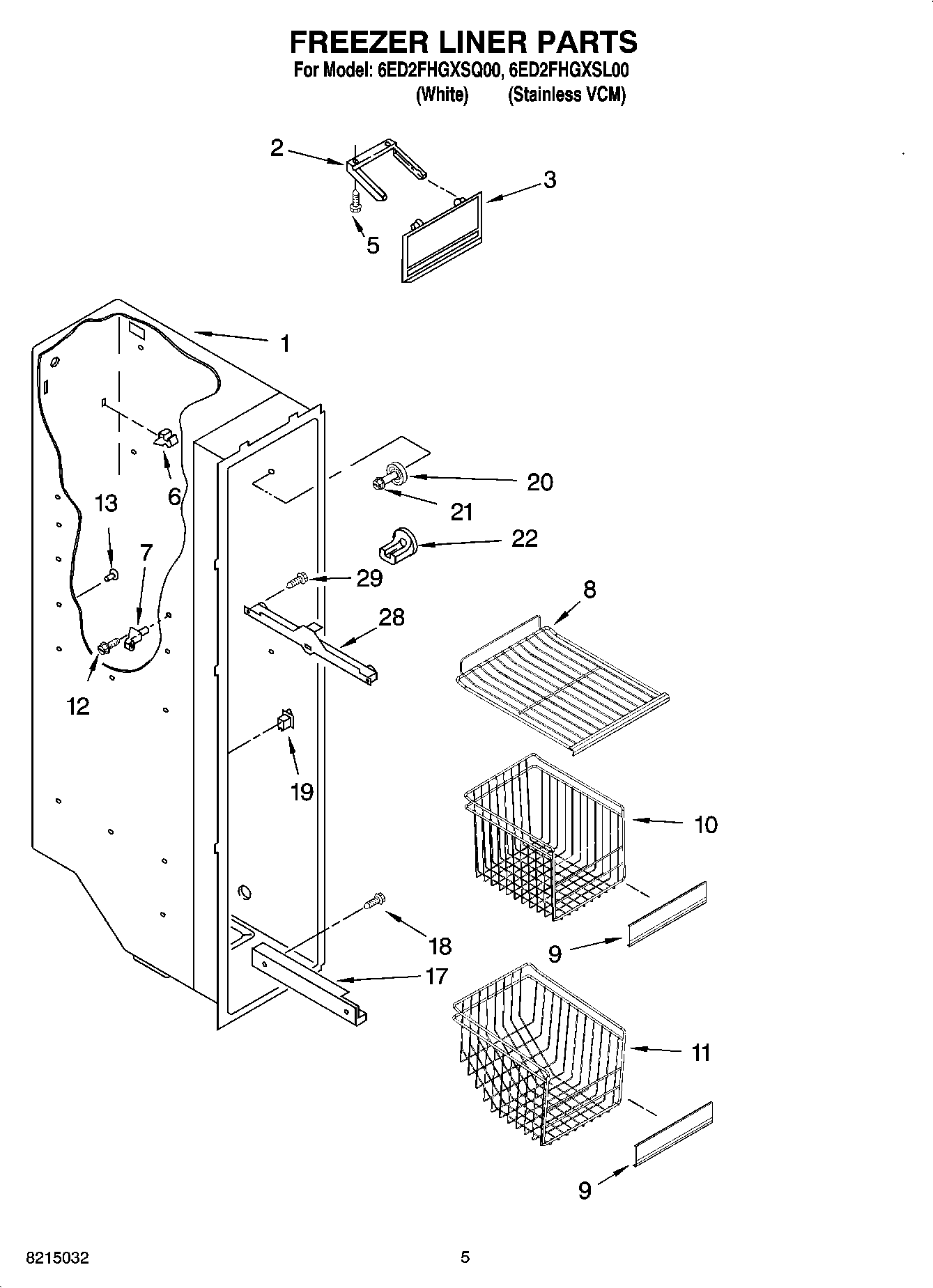

6ED2FHGXSL00 04 – FREEZER LINER PARTS

6ED2FHGXSL00 04 – FREEZER LINER PARTS

Written by

in

6ED2FHGXSL00 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
5WP489478 Whirlpool Refrigerator Screw
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8WP2174249K Whirlpool Refrigerator Wire Shelf
92195904K Whirlpool Refrigerator Basket Trim
10Basket, Tall
11Basket, Slope
12W10142289 Whirlpool Air Conditioner Screw
13Grommet
17Slide, Basket (Left Side)
17WP2261449 Whirlpool Refrigerator Track
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP2196483 Whirlpool Refrigerator Shelf Stud
21WP3400806 Whirlpool Screw
22Stud, Rear
28W10845583 Whirlpool Refrigerator Track
28W10845585 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
