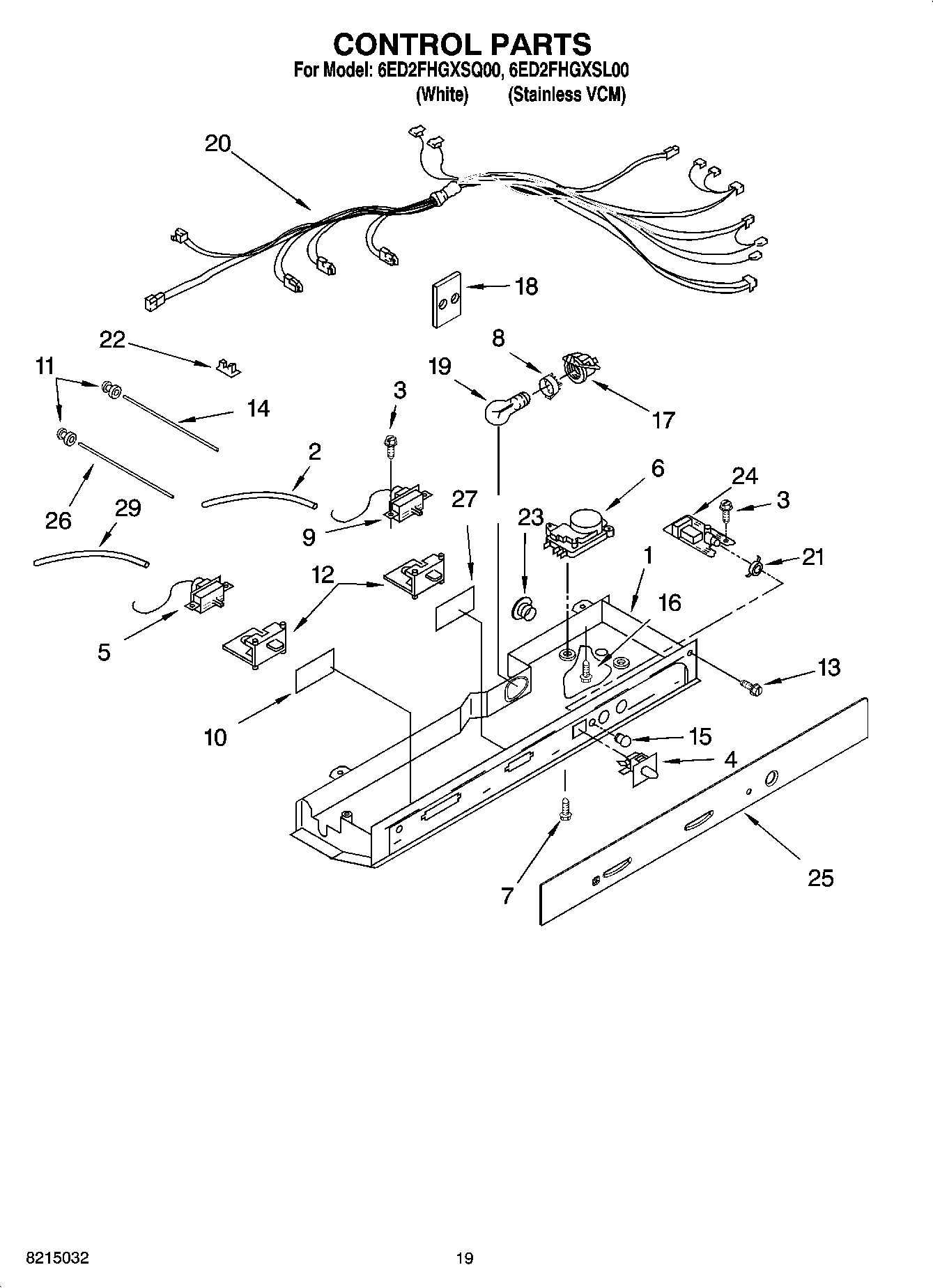

6ED2FHGXSL00 12 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	72032 Whirlpool Touch Up Paint Black
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	8171357 Whirlpool Spray Nozzle
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	PAINT, BULK (1 QT. GRAPHITE)
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI141493A
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	285006 Whirlpool Spray
1	2200135 Whirlpool Refrigerator Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	Thermostat (FC)
6	WP2188379 Whirlpool Refrigerator Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	WP2175210 Whirlpool Refrigerator Shroud
9	WP2161460 Whirlpool Refrigerator Thermostat
10	2172940 Whirlpool Window
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	COVER, LIGHT LENS
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	2172931 Whirlpool Refrigerator Shield
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	Retainer, Light Lens
22	CLIP, WIRING
23	940014 Whirlpool Refrigerator Primary Button Plug
24	P.C. Board Filter Indicator
25	Escutcheon, Control Box
26	Light Bar (FC)
27	Window
