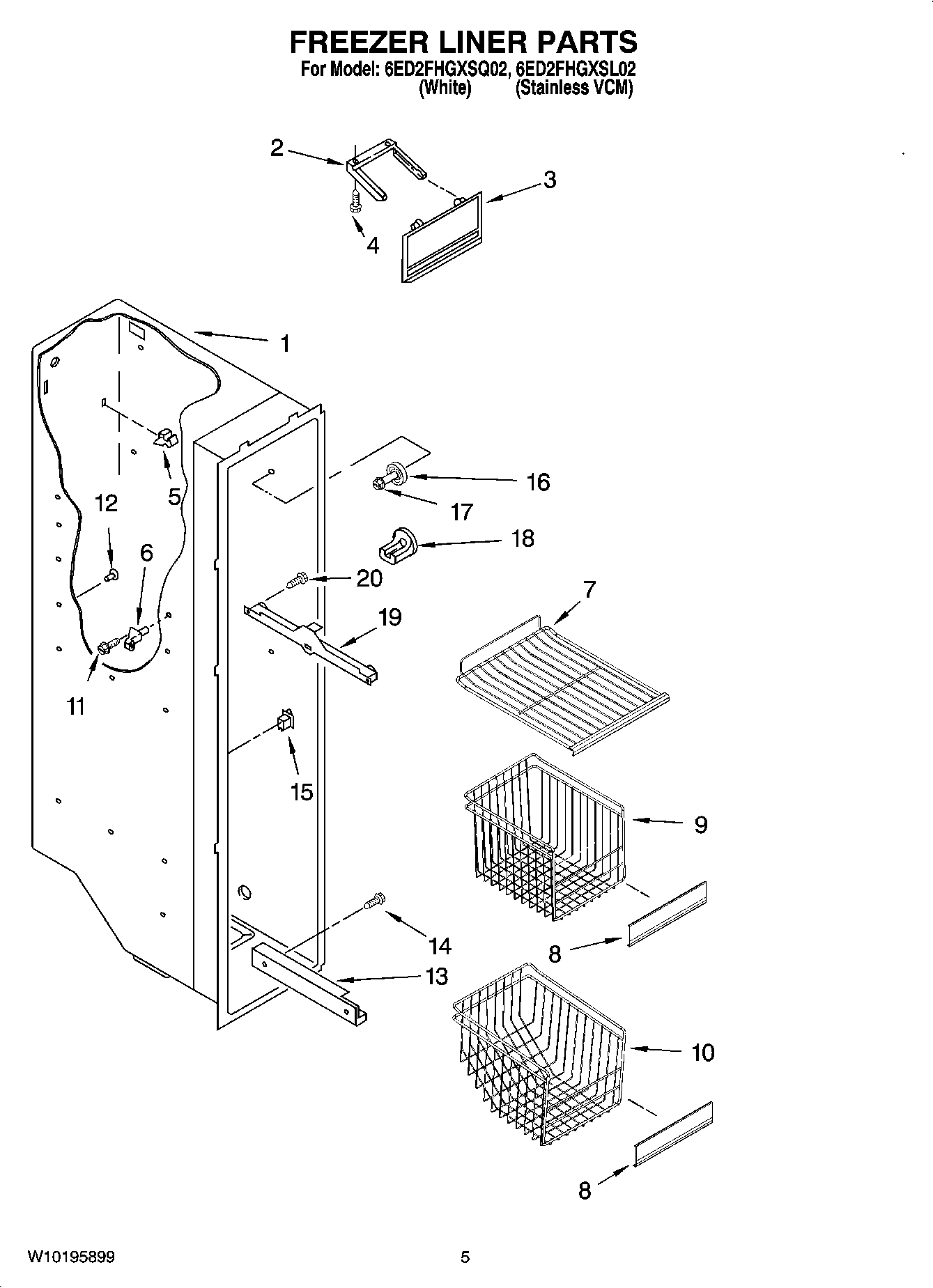

6ED2FHGXSL02 04 – FREEZER LINER PARTS

6ED2FHGXSL02 04 – FREEZER LINER PARTS

Written by

in

6ED2FHGXSL02 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2Slide, Ice Door
32171712 Whirlpool Refrigerator Ice Door
4WP489478 Whirlpool Refrigerator Screw
52215823 Whirlpool Refrigerator Clip
64388405 Whirlpool Refrigerator Shelf Stud
7WP2174249K Whirlpool Refrigerator Wire Shelf
82195904K Whirlpool Refrigerator Basket Trim
9Basket, Tall
10Basket, Slope
11W10142289 Whirlpool Air Conditioner Screw
12Grommet
13Slide, Basket (Left Side)
13WP2261449 Whirlpool Refrigerator Track
14W10759522 Whirlpool Screw
15W11457217 Whirlpool Refrigerator Rocker Switch Combination
16WP2196483 Whirlpool Refrigerator Shelf Stud
17WP3400806 Whirlpool Screw
18Stud, Rear
19W10845583 Whirlpool Refrigerator Track
19W10845585 Whirlpool Refrigerator Track
20718257 Whirlpool Dishwasher Screw
