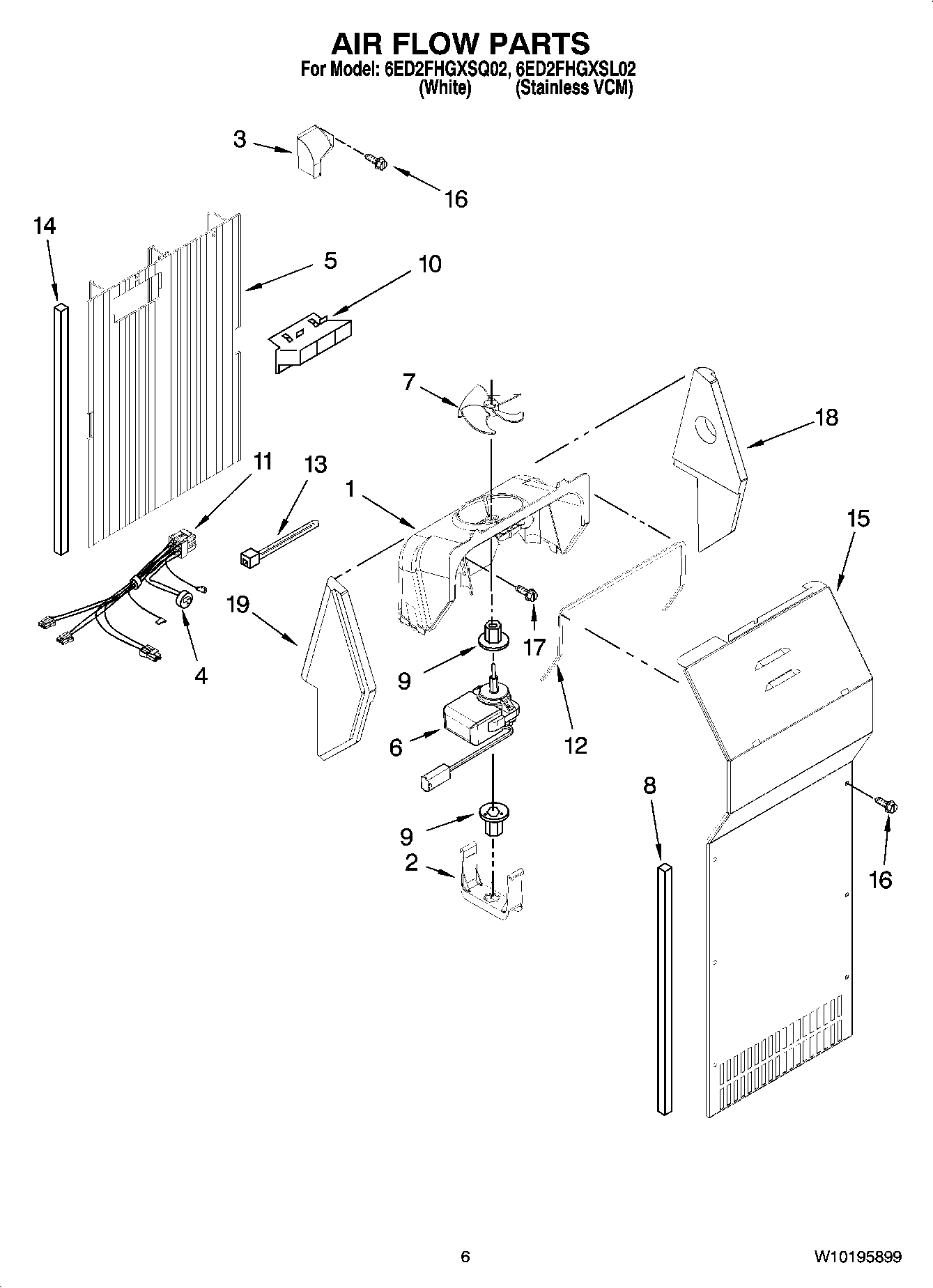

6ED2FHGXSL02 05 – AIR FLOW PARTS

6ED2FHGXSL02 05 – AIR FLOW PARTS

Written by

in

6ED2FHGXSL02 05 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3W10803597 Whirlpool Refrigerator Air Scoop
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
54388357 Whirlpool Refrigerator Evaporator Cover
6WP2321275 Whirlpool Refrigerator Evaporator Motor
7WP2169142 Whirlpool Fan Blade
8WP2304241 Whirlpool Refrigerator Gasket
9WP2176759 Whirlpool Refrigerator Grommet
102182146 Whirlpool Refrigerator Duct
11Harness, Fan Evaporator (Includes 4)
12WP2155789 Whirlpool Refrigerator Gasket
13WPW10339879 Whirlpool Wire Tie
144388500 Whirlpool Refrigerator Gasket
164389654 Whirlpool Screw
17WP489478 Whirlpool Refrigerator Screw
184388358 Whirlpool Refrigerator Support Bracket
