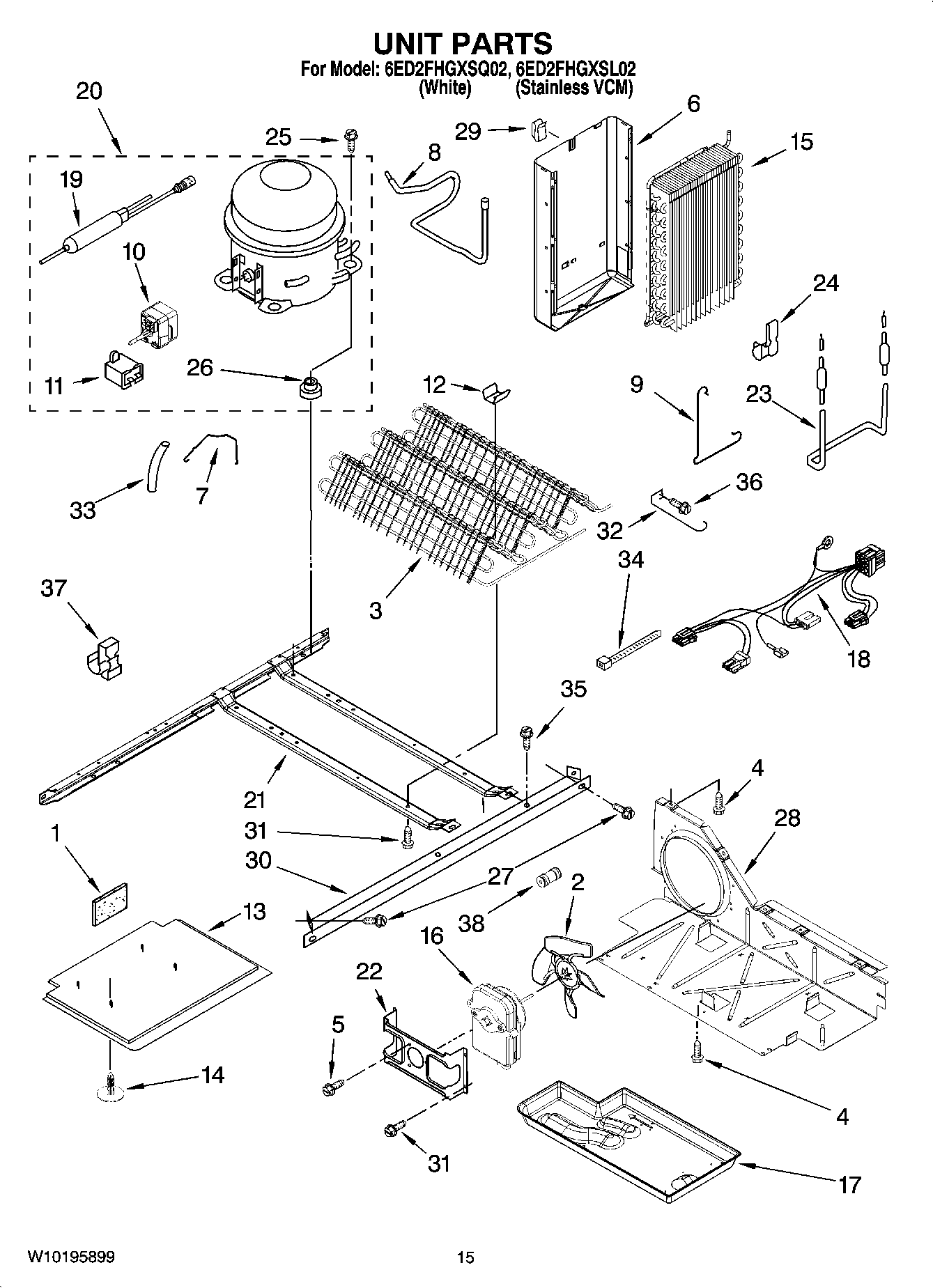

6ED2FHGXSL02 10 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (1/2“)
	REFRIGERANT CHARGE 0.142 Kg (R-134)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	WP8533993 Whirlpool Refrigerator Screw
6	Heat Shield
7	Strap, Bale
8	2205764 Whirlpool Refrigerator Tube
9	Clamp
10	WP2312007 Whirlpool Refrigerator Start Device
11	2321245 Whirlpool Refrigerator Capacitor
12	W10683556 Whirlpool Refrigerator Clip
13	W11115203 Whirlpool Control Panel
14	489396 Whirlpool Refrigerator Clip
15	WP2188822 Whirlpool Refrigerator Evaporator
16	WP2321271 Whirlpool Refrigerator Condenser Motor
17	WPW10614158 Whirlpool Refrigerator Evaporator Tray
18	Unit, Harness
19	WPW10143759 Whirlpool Dryer Filter
20	W10183407 Whirlpool Refrigerator Compressor
21	2304903 Whirlpool Refrigerator Frame
22	WP2181929 Whirlpool Refrigerator Bracket
23	WP2313330 Whirlpool Refrigerator Heater
24	W11623163 Whirlpool Refrigerator Clip
26	WP4387558 Whirlpool Refrigerator Compressor Grommet
26	876811 Whirlpool Grommet
27	489340 Whirlpool Refrigerator Screw
28	W10896764 Whirlpool Refrigerator Air Baffle
29	Clip, Heat Shield
30	Unit Mounting Rail
31	W11544659 Whirlpool Refrigerator Screw
32	Guard, Fan
33	SLEEVE
34	WPW10339879 Whirlpool Wire Tie
35	WP489427 Whirlpool Refrigerator Screw
36	WP489478 Whirlpool Refrigerator Screw
37	Clip, Wire & Tube
38	WPW10334458 Whirlpool Refrigerator Connector
