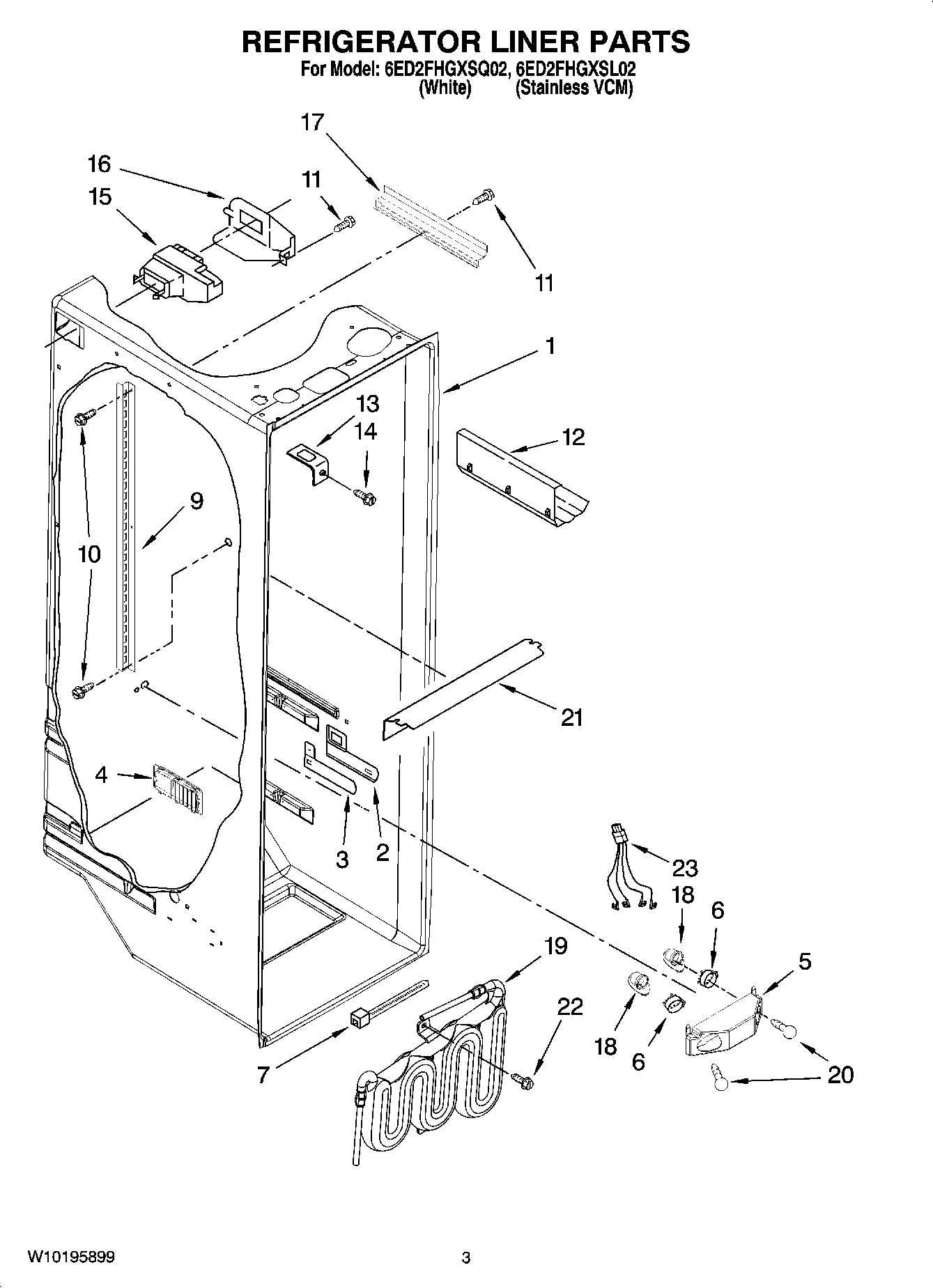

6ED2FHGXSQ02 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Bracket, Dual Crisper Light
6	WP2175210 Whirlpool Refrigerator Shroud
7	WPW10339879 Whirlpool Wire Tie
9	Shelf Ladder
10	WP489478 Whirlpool Refrigerator Screw
11	W10759522 Whirlpool Screw
12	W10777924 Whirlpool Refrigerator Wine Rack
13	WP2256085 Whirlpool Refrigerator Retainer
14	WP488488 Whirlpool Refrigerator Screw
15	WPW10151378 Whirlpool Refrigerator Diffuser
16	WP2212240 Whirlpool Refrigerator Cover
17	2150331 Whirlpool Refrigerator Wire Cover
18	Socket
19	RESERVOIR
20	WP67002552 Whirlpool Refrigerator Light Bulb
21	Light Lens
22	Screw (2)
23	2311637 Whirlpool Refrigerator Wire Harness
