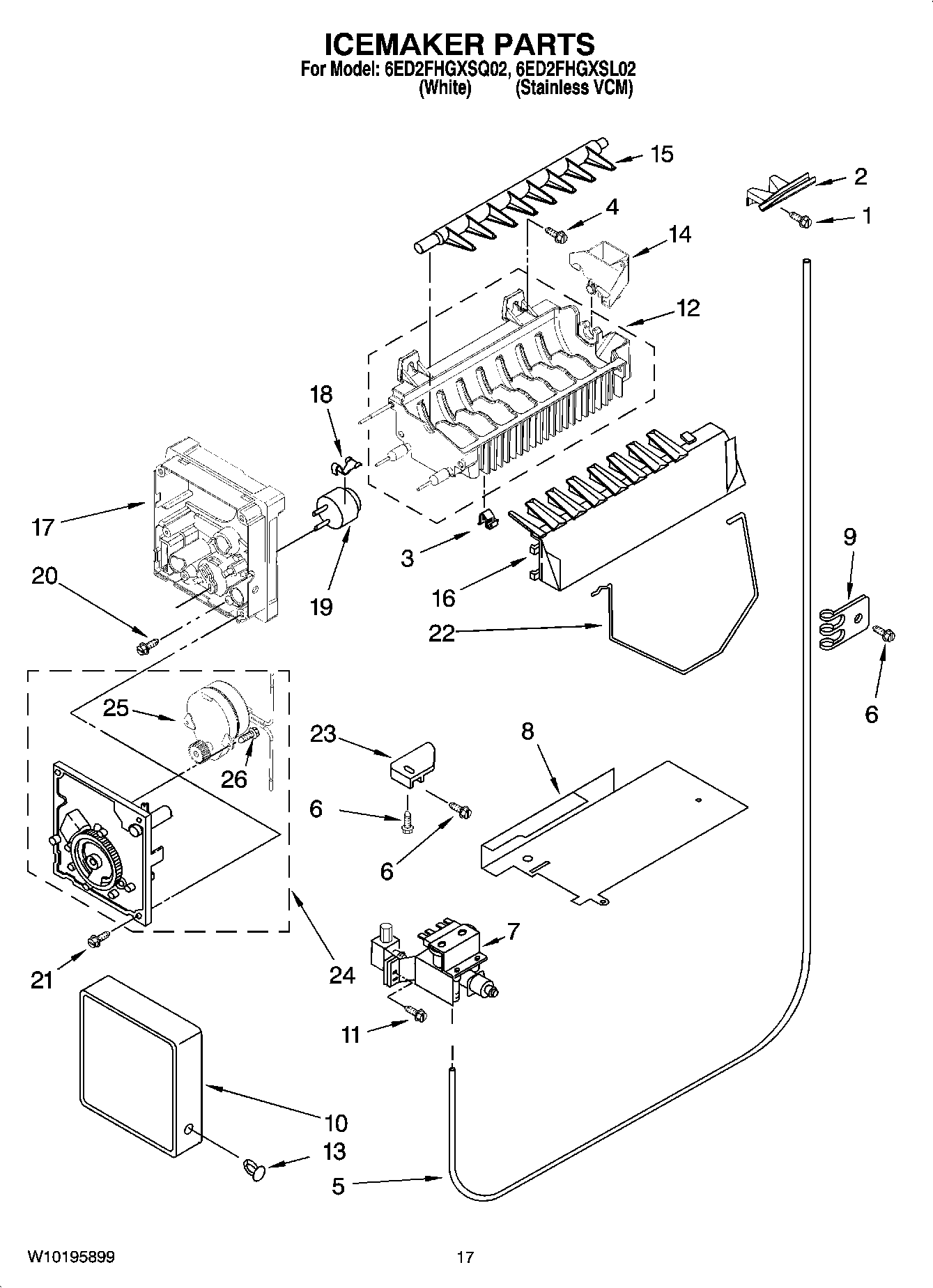

6ED2FHGXSQ02 11 – ICEMAKER PARTS

6ED2FHGXSQ02 11 – ICEMAKER PARTS

Written by

in

6ED2FHGXSQ02 11 – ICEMAKER PARTS

Products

PositionProduct
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4WP488163 Whirlpool Refrigerator Screw
5W10823511 Whirlpool Refrigerator Water Tube
6WP489478 Whirlpool Refrigerator Screw
7Valve, Solenoid
82256178 Whirlpool Shield Assembly
9WP488366 Whirlpool Refrigerator Clamp
10WPW10289690 Whirlpool Ice Maker Cover
11WPW10141625 Whirlpool Refrigerator Screw Assembly
12WPW10122523 Whirlpool Refrigerator Ice Mold
13WP489115 Whirlpool Refrigerator Rivet
14W10122561 Whirlpool Refrigerator Cup Fill
15WP627843 Whirlpool Refrigerator Ejector Arm
16WP2182124 Whirlpool Refrigerator Stripper Arm
17WP2195914 Whirlpool Refrigerator Ice Maker Housing
18WP2315522 Whirlpool Refrigerator Clip
19WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
21W10001240 Whirlpool Refrigerator Screw
22W11342242 Whirlpool Refrigerator Ice Level Arm
23W11500948 Whirlpool Refrigerator Bracket
25W10190933 Whirlpool Refrigerator Motor Assembly
26Screw
100Complete Icemaker Assembly
