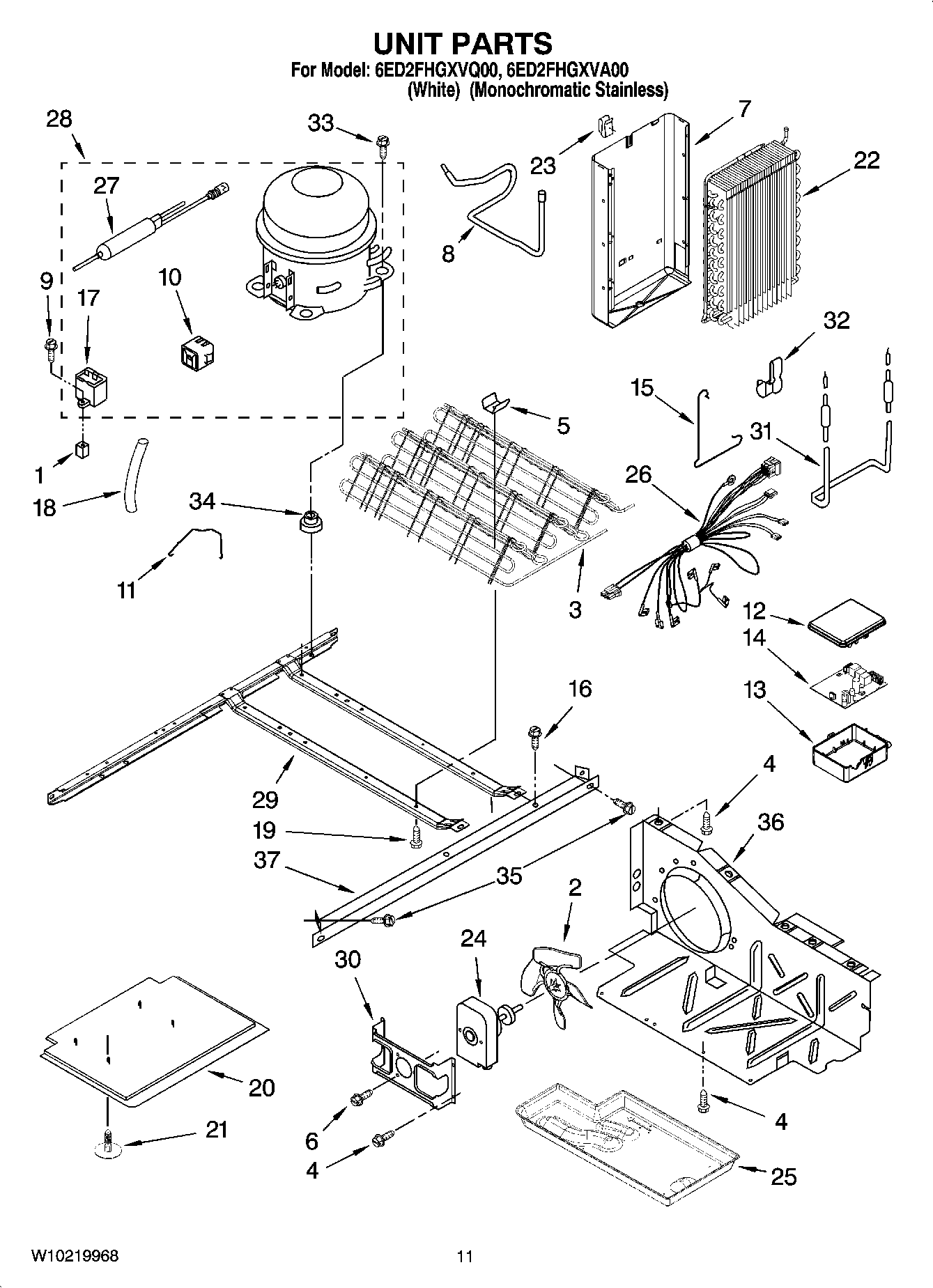

6ED2FHGXVA00 08 – UNIT PARTSadmin2025-04-26T12:21:02+00:006ED2FHGXVA00 08 – UNIT PARTS ProductsPositionProductWP978025 Whirlpool Refrigerator ValveFollowing Parts Not Illustrated and Optional Parts Not Included978030 Whirlpool Refrigerator Valve978027 Whirlpool Refrigerator Primary Valve978026 Whirlpool Refrigerator Primary Valve876764 Whirlpool Refrigerator Primary ValveREFRIGERANT CHARGE 5.0 oz. (R-134)VALVE, ACCESS (5/8``)VALVE, ACCESS (1/2``)1Screw Grommet2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5W10683556 Whirlpool Refrigerator Clip6WP8533993 Whirlpool Refrigerator Screw72217195 Whirlpool Refrigerator Shield82220642 Whirlpool Refrigerator Tube9W11693756 Whirlpool Screw Assembly10WP2312007 Whirlpool Refrigerator Start Device11Strap, Bale12Box Cover13Control Box14WP2321818-includeCORE Whirlpool WP2321818 Refrigerator Electronic Control Board + Core16WP489427 Whirlpool Refrigerator Screw172321245 Whirlpool Refrigerator Capacitor18SLEEVE19W11544659 Whirlpool Refrigerator Screw20W11115203 Whirlpool Control Panel21489396 Whirlpool Refrigerator Clip22WP2188822 Whirlpool Refrigerator Evaporator23Clip, Heat Shield24WP2321271 Whirlpool Refrigerator Condenser Motor25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Harness, Unit27W10843121 Whirlpool Refrigerator Tube27WPW10143759 Whirlpool Dryer Filter28W10183407 Whirlpool Refrigerator Compressor292304903 Whirlpool Refrigerator Frame30WP2181929 Whirlpool Refrigerator Bracket31WPW10123612 Whirlpool Heater Assembly32Clamp34876811 Whirlpool Grommet35489340 Whirlpool Refrigerator Screw36W10896764 Whirlpool Refrigerator Air Baffle37W10207512 Whirlpool Rail Unit
