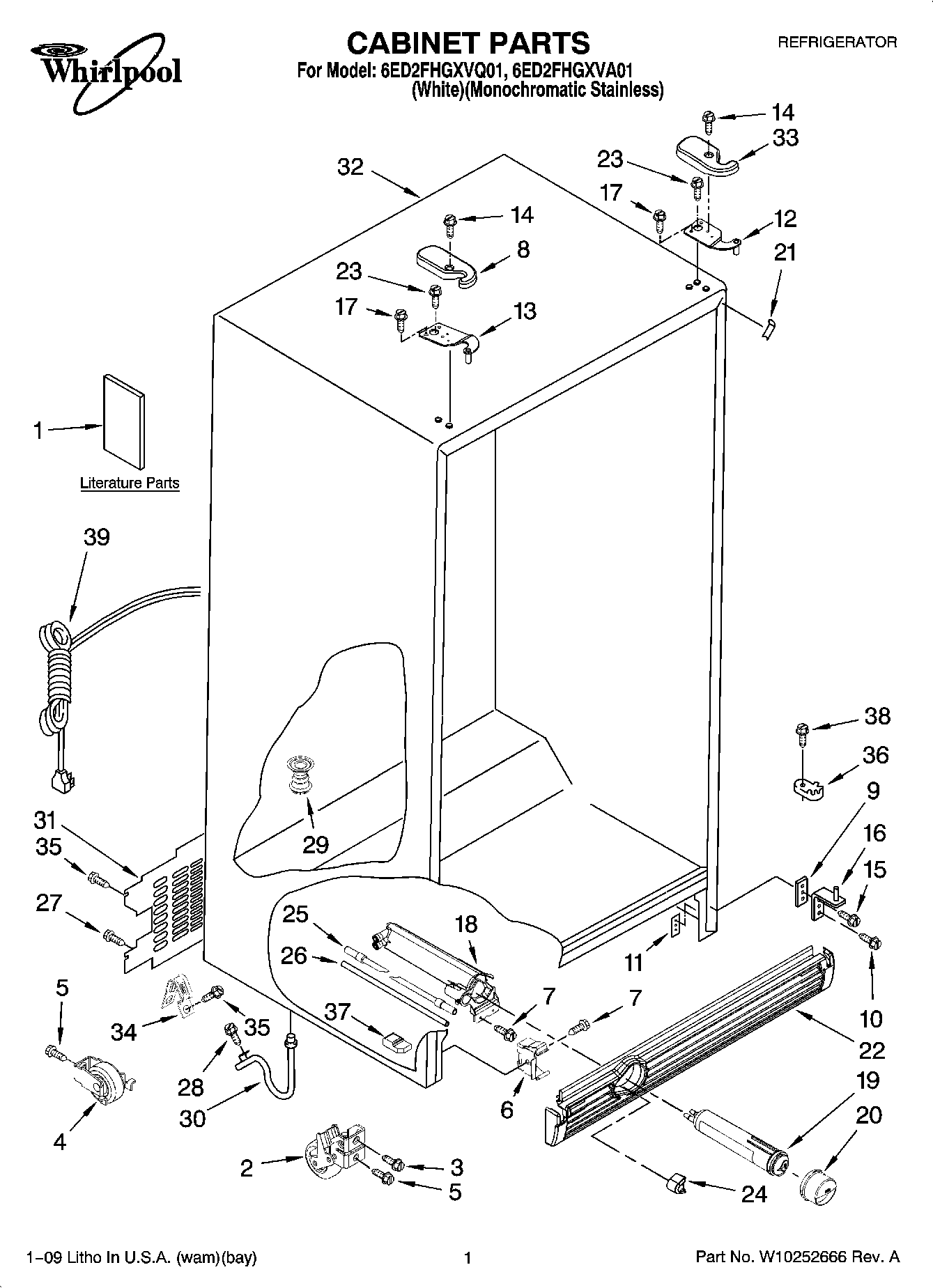

6ED2FHGXVA01 01 – CABINET PARTS

6ED2FHGXVA01 01 – CABINET PARTS

Written by

in

6ED2FHGXVA01 01 – CABINET PARTS

Products

Position	Product
1	Instruction Sheet, Door Removal
1	Use & Care Guide
1	Energy Guide
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	Hinge Cover (RC) (White)
8	Hinge Cover (RC) (Apollo Grey)
9	WP2209697 Whirlpool Refrigerator Shim
10	W10856122 Whirlpool Refrigerator Screw
11	WP2304249 Whirlpool Refrigerator Plate
12	WP2203771 Whirlpool Refrigerator Door Hinge
13	WP2203770 Whirlpool Refrigerator Door Hinge
14	WP8281227 Whirlpool Screw
15	WP489497 Whirlpool Screw
16	8201707 Whirlpool Door Hinge
17	W10853301 Whirlpool Refrigerator Screw
18	WPW10121138 Whirlpool Refrigerator Water Filter Housing
19	FILTER 3-SINGLE TEAL
20	WP2260518W Whirlpool Refrigerator Filter Cap
20	WP2260518MG Whirlpool Water Filter Cap
21	WPW10283959 Whirlpool Refrigerator Filler
21	W10851579 Whirlpool Refrigerator Filler
22	Grille (White)
22	Grille (Midnight Grey)
24	2260503W Whirlpool Refrigerator Button
24	2260503MG Whirlpool Refrigerator Button
25	WP2304697 Whirlpool Refrigerator Water Tube
26	WPW10350006 Whirlpool Refrigerator Water Tube
27	WP488488 Whirlpool Refrigerator Screw
28	WP489464 Whirlpool Refrigerator Screw
29	W11566763 Whirlpool Fitting
30	W11512417 Whirlpool Drain Connector
31	Cover, Unit
32	Cabinet, (Not A Serviceable Part)
33	Hinge Cover (FC) (White)
33	Hinge Cover (FC) (Apollo Grey)
34	489348 Whirlpool Refrigerator Tube Clamp
35	W11693756 Whirlpool Screw Assembly
36	WPW10329686 Whirlpool Door Cam Black
37	Block, Housing Support
38	WP489483 Whirlpool Screw
39	W10199314 Whirlpool Refrigerator Power Cord
