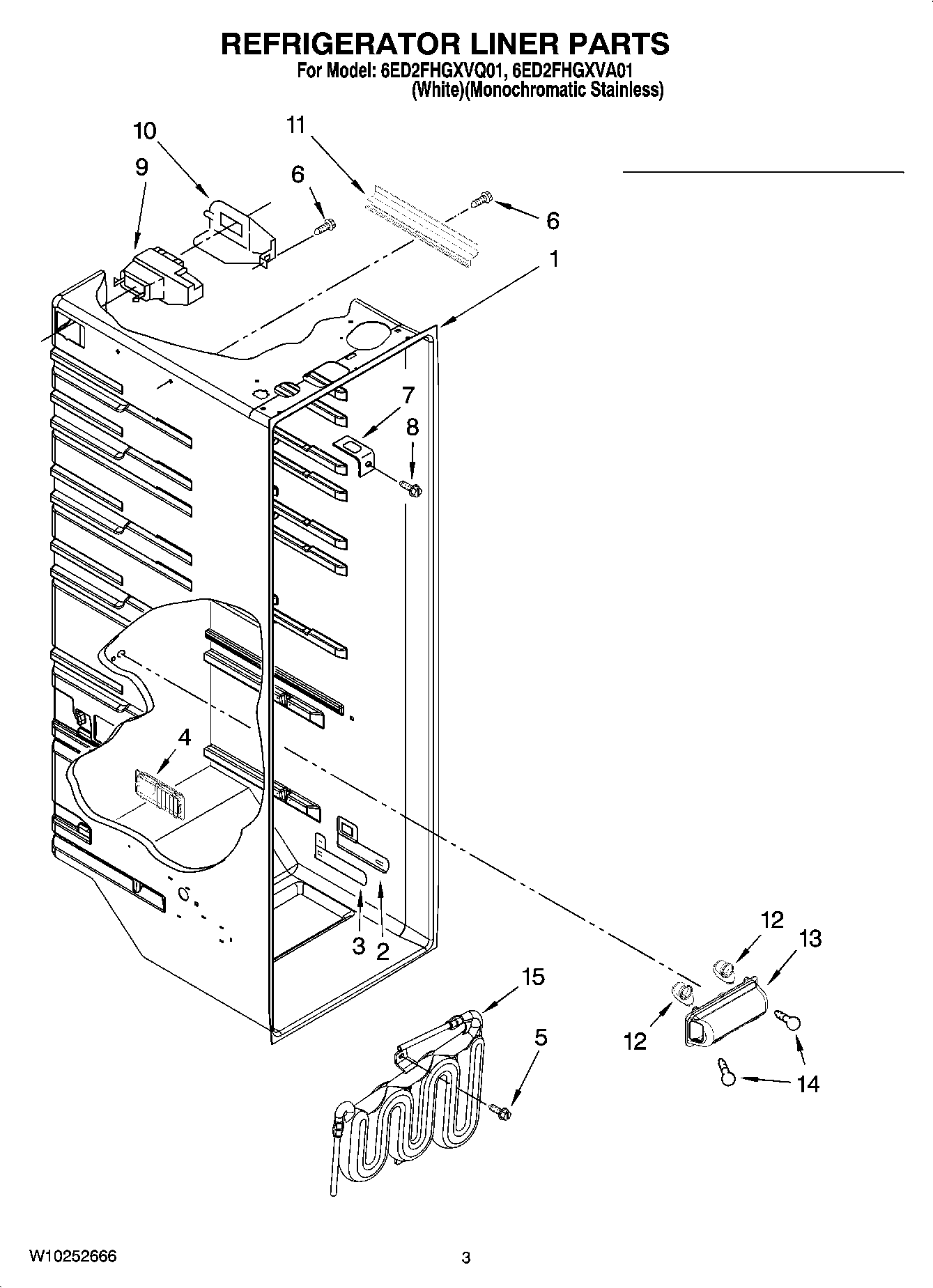

6ED2FHGXVA01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Screw (2)
6W10759522 Whirlpool Screw
7WP2256085 Whirlpool Refrigerator Retainer
8WP488488 Whirlpool Refrigerator Screw
9WPW10151378 Whirlpool Refrigerator Diffuser
10WP2212240 Whirlpool Refrigerator Cover
112150331 Whirlpool Refrigerator Wire Cover
12W11447232 Whirlpool Refrigerator Socket
13W11239891 Whirlpool Refrigerator Light Lens
14WP67002552 Whirlpool Refrigerator Light Bulb
15RESERVOIR
